9540-01-495-0845
Structural Angle
9540014950845 014950845 1MA100C03-10090 NAS342-30-6061T6511
A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet. View more Structural Angle
May 2023
5
Marketplace 9540-01-495-0845
Request a Quotation from participating marketplace vendors
Related Documents 9540-01-495-0845 2+ Documents (More...)
(Identification) 1/3 NSN 9540-01-495-0845 (Identification) 2/3 NSN 9540-01-495-0845 (Identification
BUY NE FedMall Updated Every Day 9540-01-495-0845 RQST NE Updated Every Day 9540-01-495-0845 RQST
Structural Angle 9540014950845 014950845 day Upgrade your Account Upgrade 9540-01-495-0845Structural
Angle9540014950845 014950845 1MA100C03-10090 RQST NE Updated Every Day 9540-01-495-0845 RQST https//
Restrictions 9540-01-495-0845
9540-01-495-0845 is a Structural Angle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 9540-01-495-0845
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 9540-01-495-0845
- Part Number
- Manufacturer
- Status
- 1MA100C03-10090
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- NAS342-30-6061T6511
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy

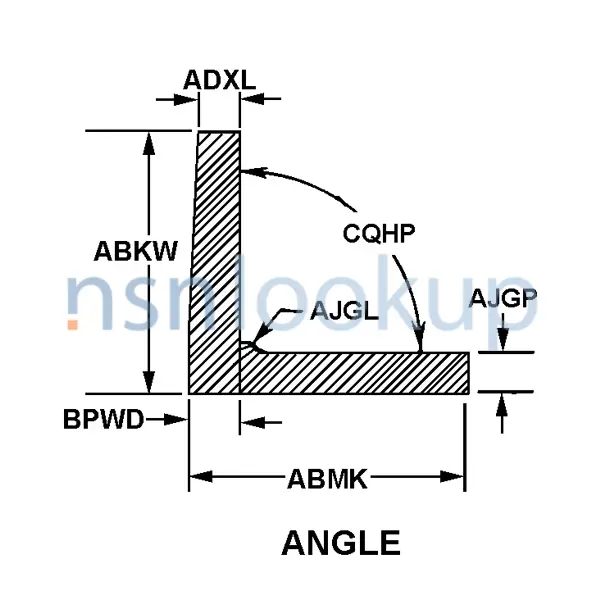

Datasheet 9540-01-495-0845
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100
- Base Flange Thickness [AJGP]
- 0.094 Inches Nominal
- Basic Shape Style [AGTA]
- Angle
- Fabrication Method [AARN]
- Extruded
- Fillet Radius Where Left Flange Joins Base Flange [AJGL]
- 0.156 Inches Nominal
- First Tip Radius [AJJB]
- 0.094 Inches Nominal
- First Tip Style [CMZY]
- Right Quarter Radius
- Heat Treatment [HEAT]
- T-6511 Solution Heat Treated
- Material [MATT]
- Aluminum Alloy 6061
- Left Flange Thickness At Base [BPWD]
- 0.094 Inches Nominal
- Left Inside Angle [CQHP]
- 90.0 Degrees Nominal
- Left Side Flange Thickness [ADXL]
- 0.094 Inches Nominal
- Length [ABRY]
- 10.000 Inches Minimum And 12.000 Inches Maximum
- Second Tip Relationship To First Tip [CNQJ]
- Not Identical
- Second Tip Radius [CMZZ]
- 0.094 Inches Nominal
- Second Tip Style [CNQK]
- Upper Radius
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Overall Width [ABMK]
- 1.750 Inches Nominal
DLA Procurement Analysis 9540-01-495-0845
Management Data 9540-01-495-0845
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9540-01-495-0845
Freight Information 9540-01-495-0845
9540-01-495-0845 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 104050. A Sub NMFC of X. It has a NMFC Description of ANGLES I/S NOI. 9540-01-495-0845 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53630 which rates the freight between FCL and LCL. 9540-01-495-0845 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 9540-01-495-0845 is not classified as a special type of cargo when transported by water. 9540-01-495-0845 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
