9540-01-397-0843
Structural Beam
9540013970843 013970843 AMS-QQ-A-200/11 60-15920 LS6478
A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges. View more Structural Beam
November 2023
8
Marketplace 9540-01-397-0843
Request a Quotation from participating marketplace vendors
Related Documents 9540-01-397-0843 5+ Documents (More...)
-200 /11 - /11 - - AMS-QQ-A -200 /11 - - AMS-QQ-A-200 / /11 - - AMS-QQ-A-200/11 - // AMS-QQ-A -200 /
-200/11 A AMS-QQ-A -200 /11 A AMS-QQ-A A AMS-QQ-A -200/11 A AMS-QQ-A -200 /11 A AMS-QQ-A AMS-QQ-A -
- - AMS-QQ-A-200/11 - - AMS-QQ-A-200/11 BEAM - - AMS-QQ-A / -200/ / 11 - /11 AMS-QQ-A -200/ 11 -
/ AMS-QQ-A -200 11 // AMS-QQ-A -200 /11 BEAM 200 AMS-QQ-A-200/ 11 // AMS-QQ-A https -200/ 11 // AMS-QQ-A
A AMS-QQ-A -200/11 A AMS-QQ-A -200 /11 A AMS-QQ-A AMS-QQ-A - -200/ / 11 - - AMS-QQ-A-200 /11 - /11 -
- - - AMS-QQ-A A AMS-QQ-A -200/11 A AMS-QQ-A -200/11 A AMS-QQ-A / AMS-QQ-A A AMS-QQ-A -200/11 A AMS-QQ-A
- - AMS-QQ-A -200/11 BEAM AMS-QQ-A-200/11 /11 AMS-QQ-A -200/11 - - AMS-QQ-A https/ BEAM - - AMS-QQ-A
BEAM - - AMS-QQ-A-200/11 - // AMS-QQ-A - -200/11 - - AMS-QQ-A /11 - - AMS-QQ-A -200/11 - -
200 AMS-QQ-A -200/ 11 / / AMS-QQ-A - AMS-QQ-A-200/11 200 AMS-QQ-A -200/ 11 / / AMS-QQ-A 01-363
/ - AMS-QQ-A -200/11 HA18106 - - AMS-QQ-A -200 / 11 /11 AMS-QQ-A-200/11 - - HA18106 A AMS-QQ-A
Restrictions 9540-01-397-0843
9540-01-397-0843 is a Structural Beam that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 9540-01-397-0843
- US Air Force (FGGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FGKZ
Approved Sources 9540-01-397-0843
- Part Number
- Manufacturer
- Status
- AMS-QQ-A-200/11
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- 60-15920
- 98897 - Lockheed Martin Corp (Active)
- Primary Buy
- Primary Buy
- LS6478
- 98897 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AMS-QQ-A-200/11
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9540-01-397-0843
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100

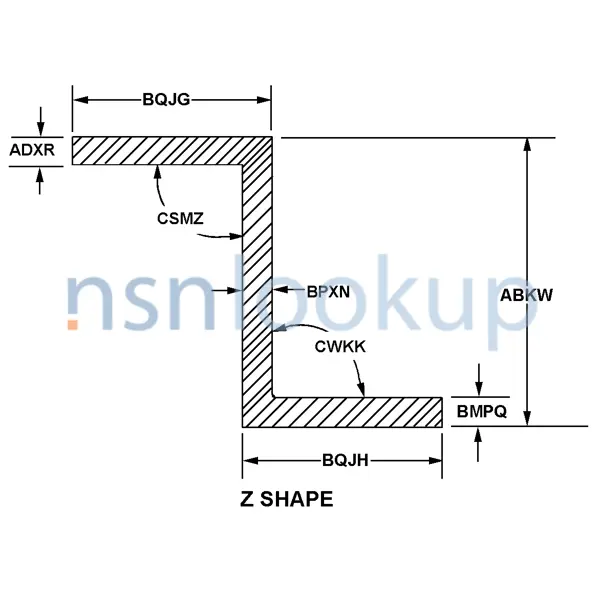

- Basic Shape Style [AGTA]
- Z Shape
- Bottom Flange Width [BQJH]
- 0.750 Inches Nominal
- Fabrication Method [AARN]
- Extruded
- First Tip Style [CMZY]
- Square End
- Fourth Tip Style [CNQP]
- Square End
- Heat Treatment [HEAT]
- T-6 Solution Heat Treated
- Material [MATT]
- Aluminum Alloy Ams-Qq-A-200/11, Alloy 7075
- Nondefinitive Spec/Std Data [ZZZT]
- 7075 Alloy And T6 Temper Or T6511 Temper
- Left Side Top Flange Thickness [ADXR]
- 0.062 Inches Nominal
- Left Top Inside Angle [CSMZ]
- 90.0 Degrees Nominal
- Length [ABRY]
- 10.000 Feet Minimum And 12.000 Feet Maximum
- Right Side Bottom Flange Thickness [BMPQ]
- 0.062 Inches Nominal
- Right Bottom Inside Angle [CWKK]
- 90.0 Degrees Nominal
- Second Tip Relationship To First Tip [CNQJ]
- Identical
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Top Flange Width [BQJG]
- 0.500 Inches Nominal
- Web Flange Thickness [BPXN]
- 0.062 Inches Nominal
- Third Tip Style [CNQM]
- Square End
Weapon Systems (WSDC) 9540-01-397-0843
DLA Procurement Analysis 9540-01-397-0843
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 9540-01-397-0843
Similar Supply Items to 9540-01-397-0843
Freight Information 9540-01-397-0843
9540-01-397-0843 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 104420. A Sub NMFC of X. It has a NMFC Description of BEAMS NOI I/S. 9540-01-397-0843 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53800 which rates the freight between FCL and LCL. 9540-01-397-0843 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 9540-01-397-0843 is not classified as a special type of cargo when transported by water. 9540-01-397-0843 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
