9540-01-232-7034
Structural Beam
9540012327034 012327034 SS1513-4
A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges. View more Structural Beam
May 2023
8
Marketplace 9540-01-232-7034
Request a Quotation from participating marketplace vendors
Related Documents 9540-01-232-7034 5+ Documents (More...)
RQST NE Updated Every Day 9540-01-232-7034 RQST Updated Every Day 9540-01-232-7034 RQST NE Related Documents
9540-01-232-7034 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-95/fsc-9540/us 9540-01-232-7034
5961013187297013187297 Documents 5961-01-318-7297 https//www.nsnlookup.com /fsg-95/fsc-9540/us 9540-01-232-7034
Structural Beam 9540012327034 012327034 www.nsnlookup.com /fsg-95/fsc-9540/us 9540-01-232-7034
Structural Beam 9540012327034 012327034 for $1 a day Upgrade your Account Upgrade 9540-01-232-7034Structural
Beam9540012327034 012327034 SS1513 Transistor 5961008312673 008312673,2686595-02 02 Day 5961-00-831
Structural Beam 9540012327034 012327034 for $1 a day Upgrade your Account Upgrade 9540-01-232-7034Structural
Beam9540012327034 012327034 SS1513 for $1 a day Upgrade your Account Upgrade 9540-01-232-7034Structural
Structural Beam 9540012327034 012327034 your Account Upgrade 9540-01-232-7034Structural https//
Restrictions 9540-01-232-7034
9540-01-232-7034 is a Structural Beam that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 9540-01-232-7034
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 9540-01-232-7034
- Part Number
- Manufacturer
- Status
- SS1513-4
- Manufacturer
- 78286 - Sikorsky Aircraft Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 9540-01-232-7034
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100
- Basic Shape Style [AGTA]
- Z Shape
- Bottom Flange Width [BQJH]
- 0.880 Inches Nominal
- Fabrication Method [AARN]
- Extruded
- Fillet Radius Where Bottom Right Flange Joins Web Flange/Leg [BPXM]
- 0.125 Inches Nominal
- Fillet Radius Where Top Left Flange Joins Web Flange/Leg [BPXJ]
- 0.125 Inches Nominal
- First Tip Style [CMZY]
- Square End
- Material [MATT]
- Aluminum Alloy, Ams-Qq-A-250/13, Alclad 7075
- Left Side Top Flange Thickness [ADXR]
- 0.063 Inches Nominal
- Left Top Inside Angle [CSMZ]
- 90.0 Degrees Nominal
- Right Side Bottom Flange Thickness [BMPQ]
- 0.063 Inches Nominal
- Right Bottom Inside Angle [CWKK]
- 90.0 Degrees Nominal
- Second Tip Inner Corner Radius [CNNP]
- 0.125 Inches Nominal
- Second Tip Flange Height [CNPZ]
- 0.250 Inches Nominal

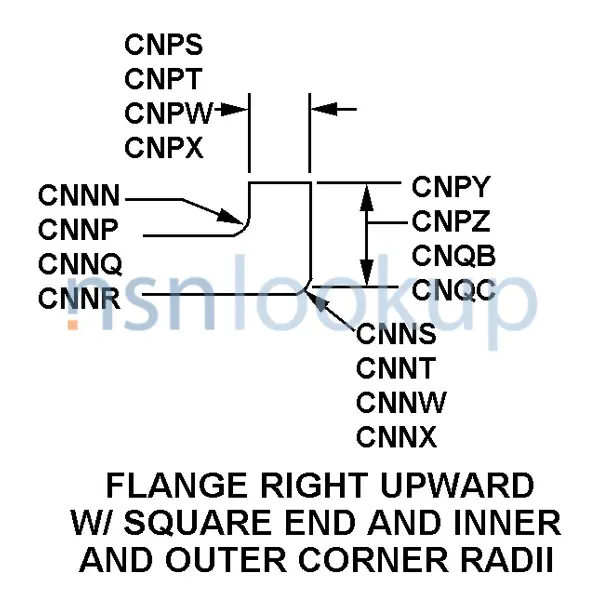

- Second Tip Style [CNQK]
