9540-00-542-2691
Structural Beam
9540005422691 005422691 AMS-QQ-A-200/5 853C QQA200-5
A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges. View more Structural Beam
May 2023
8
Marketplace 9540-00-542-2691
Request a Quotation from participating marketplace vendors
Related Documents 9540-00-542-2691 5+ Documents (More...)
fabricated from a ferrous or nonferrous material and ASTM-B , QQA200-5 ,ASTM ,ASTM B221 -5 AMS-QQ-A-
1 QQA200-5 AMS-QQ-A - ,ASTM B221 ASTM-B , ASTM-B , QQA200 /fsg-95/fsc-9540/us 9540-00-542-2691
fsc-5995/us 5995-01-600-0792 Special Cable Assembly 5995016000792 D50972-00117B9E7010-853D17B9E7010-853C
871-1184 Kerosene Lantern Globe 6260218711184,853C 5995016000792 D50972-00117B9E7010-853D17B9E7010-853C
AMS-QQ-A - ,ASTM B221 -5 AMS-QQ-A- 200/5 1 QQA200 AMS-QQ-A ASTM-B , QQA200-5 ,ASTM ,ASTM https//www.nsnlookup.com
/fsg-95/fsc-9540/us 9540-00-542-2691 Structural Beam 9540005422691 005422691 AMS-QQ-A ASTM-B , QQA200
B221 ASTM-B AMS-QQ-A-200/5 -5 AMS-QQ-A- 200 /5 1 QQA200-5 https ,ASTM - ,ASTM https//www.nsnlookup.com
/fsg-95/fsc-9540/us 9540-00-542-2691 Structural Beam 9540005422691 005422691 Metal Bar 9530005422586005422586
Created on 7 Nov 2011 Data Last Assembly5995016000792 016000792 D50972-00117B9E7010-853D17B9E7010-853C
Structural Beam 9540005422691 005422691 888-6333 Bookcase 7110218886333 218886333,853C 5995-01-
Restrictions 9540-00-542-2691
9540-00-542-2691 is a Structural Beam that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 9540-00-542-2691
- US Army (A920)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A186
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
Approved Sources 9540-00-542-2691
- Part Number
- Manufacturer
- Status
- AMS-QQ-A-200/5
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- 853C
- 01634 - Aluminum Co Of America (Active)
- Incomplete Reference
- Incomplete Reference
- QQA200-5
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AMS-QQ-A-200/5
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9540-00-542-2691
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100

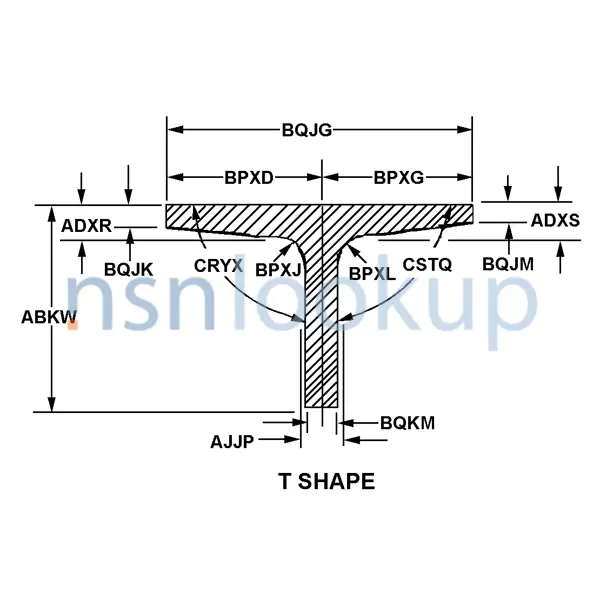

- Basic Shape Style [AGTA]
- T Shape
- Fabrication Method [AARN]
- Extruded
- Fillet Radius Where Top Left Flange Joins Web Flange/Leg [BPXJ]
- 0.250 Inches Nominal
- Fillet Radius Where Top Right Flange Joins Web Flange/Leg [BPXL]
- 0.250 Inches Nominal
- Heat Treatment [HEAT]
- H-111 Strain Hardened
- Material [MATT]
- Aluminum Alloy Ams-Qq-A-200/5, Alloy 5086
- Nondefinitive Spec/Std Data [ZZZT]
- H111 Temper
- Left Side Top Flange Distance To Center Of Both Flanges [BPXD]
- 1.000 Inches Nominal
- Left Side Top Flange Thickness [ADXR]
- 0.312 Inches Nominal
- Left Side Top Flange Tip Thickness [BQJK]
- 0.250 Inches Nominal
- Leg Thickness [AJJP]
- 0.312 Inches Nominal
- Leg Tip Thickness [BQKH]
- 0.250 Inches Nominal
- Right Side Top Flange Distance To Center Of Both Flanges [BPXG]
- 1.000 Inches Nominal
- Right Side Top Flange Thickness [ADXS]
- 0.312 Inches Nominal
- Right Side Top Flange Tip Thickness [BQJM]
- 0.250 Inches Nominal
- Second Tip Relationship To First Tip [CNQJ]
- Identical
- Overall Height [ABKW]
- 2.000 Inches Nominal
- Top Flange Width [BQJG]
- 2.000 Inches Nominal
- Weight Per Unit Measure [BRFD]
- 1.290 Pounds Per Linear Foot
- Third Tip Relationship To Preceding Tips [CNQL]
- Identical W/First Tip
DLA Procurement Analysis 9540-00-542-2691
