9535-00-355-9741

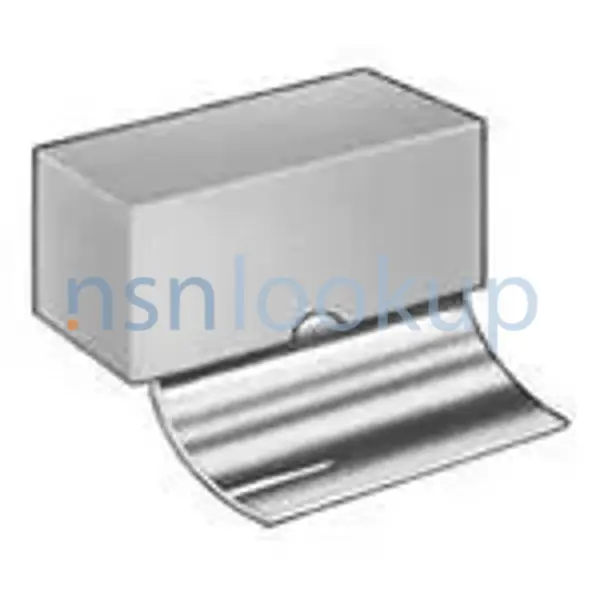

Metal Strip
9535003559741 003559741 QQB750
A ferrous or nonferrous product with corss-sectional dimensions limited to those established in Appendix C, FIIG A131. Includes corrugated and perforated items. For silver strips see SILVER SHEET. View more Metal Strip
June 2023
12
Marketplace 9535-00-355-9741
Request a Quotation from participating marketplace vendors
Related Documents 9535-00-355-9741 5+ Documents (More...)
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750 ,QQB750
Restrictions 9535-00-355-9741
9535-00-355-9741 is a Metal Strip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 9535-00-355-9741
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
Approved Sources 9535-00-355-9741
- Part Number
- Manufacturer
- Status
- QQB750
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 9535-00-355-9741
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100
- Edge Type [AQQR]
- Any Acceptable
- Basic Shape Style [AGTA]
- Solid
- Cross-Sectional Thickness [ADVM]
- 0.0100 Inches Nominal
- Fabrication Method [AARN]
- Any Acceptable
- Heat Treatment [HEAT]
- Spring Temper
- Material Document And Classification [MDCL]
- Qq-B-750, Comp A Fed Spec 1St Material Response
- Material [MATT]
- Copper Alloy 510
- Minimum Tensile Strength [CQBC]
- 91000 Pounds Per Square Inch
- Nondefinitive Spec/Std Data [ZZZT]
- A Composition And Spring Temper Temper
- Length [ABRY]
- 6.000 Feet Nominal
- Width [ABGL]
- Unable To Decode
- Weight Per Unit Measure [BRFD]
- 0.461 Pounds Per Linear Foot
Similar Supply Items to 9535-00-355-9741
Freight Information 9535-00-355-9741
9535-00-355-9741 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 030740. A Sub NMFC of X. It has a NMFC Description of BBC PLATE SHEET R STRIP NOI. 9535-00-355-9741 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. 9535-00-355-9741 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 14990 which rates the freight between FCL and LCL. 9535-00-355-9741 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 9535-00-355-9741 is not classified as a special type of cargo when transported by water. 9535-00-355-9741 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
