9520-01-234-5822
Structural Beam
9520012345822 012345822 60-12101 BAC1520-766
A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges. View more Structural Beam
November 2023
8
Marketplace 9520-01-234-5822
Request a Quotation from participating marketplace vendors
Related Documents 9520-01-234-5822 3+ Documents (More...)
RQST NE Updated Every Day 9520-01-234-5822 RQST Updated Every Day 9520-01-234-5822 RQST NE Related Documents
9520-01-234-5822 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-95/fsc-9520/us 9520-01-234-5822
Structural Beam 9520012345822 012345822 Upgrade your Account Upgrade 9520-01-234-5822Structural
Beam9520012345822 012345822 BAC1520-766 60-12101 www.nsnlookup.com /fsg-95/fsc-9520/us 9520-01-234-5822
Structural Beam 9520012345822 012345822 www.nsnlookup.com /fsg-95/fsc-9520/us 9520-01-234-5822
Restrictions 9520-01-234-5822
9520-01-234-5822 is a Structural Beam that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 9520-01-234-5822
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 9520-01-234-5822
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2014
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 9520-01-234-5822
- Part Number
- Manufacturer
- Status
- 60-12101
- Manufacturer
- 29321 - Transtar Metals Corp (Active)
- Primary Buy
- Primary Buy
- BAC1520-766
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 9520-01-234-5822
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100

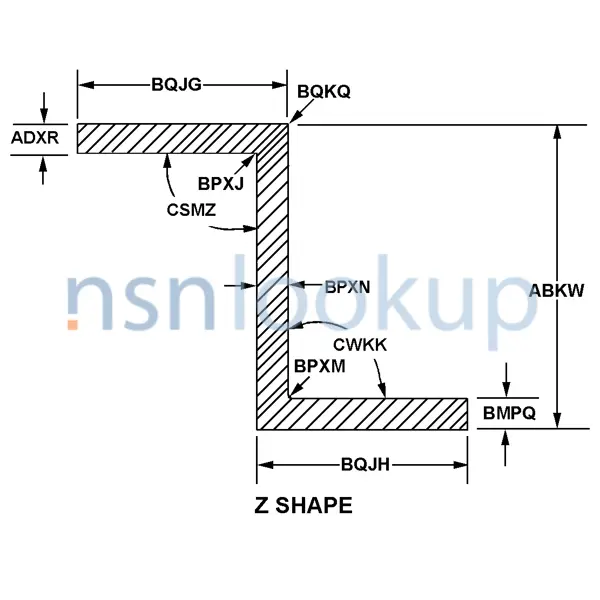

- Basic Shape Style [AGTA]
- Z Shape
- Fabrication Method [AARN]
- Extruded
- Fillet Radius Where Bottom Right Flange Joins Web Flange/Leg [BPXM]
- 0.120 Inches Nominal
