9390-01-641-6908
Nonmetallic Channel
9390016416908 016416908 EDG-0011 GRPE-125-9-C-EA
A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL. View more Nonmetallic Channel
May 2023
2
Marketplace 9390-01-641-6908
Request a Quotation from participating marketplace vendors
Related Documents 9390-01-641-6908 1+ Documents (More...)
(Identification) 1/3 NSN 9390-01-641-6908 (Identification) 2/3 NSN 9390-01-641-6908 (Identification
BUY NE FedMall Updated Every Day 9390-01-641-6908 RQST NE Updated Every Day 9390-01-641-6908 RQST
Restrictions 9390-01-641-6908
9390-01-641-6908 is a Nonmetallic Channel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 9390-01-641-6908
- US Army (A920)
- Effective Date:
- 1 Jan 2015
- Supplementary Receivers:
- AZ
Approved Sources 9390-01-641-6908
- Part Number
- Manufacturer
- Status
- EDG-0011
- Manufacturer
- 57328 - Bauer Compressors, Inc. (Active)
- Primary Buy
- Primary Buy
- GRPE-125-9-C-EA
- 56501 - Abb Installation Products Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 9390-01-641-6908
- Characteristic
- Specifications
- FIIG
- Specifications
- A547C0
- End Item Identification [AGAV]
- 4210016179403
- Base Flange Thickness [AJGP]
- 0.050 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Open Channel
- Material [MATT]
- Plastic Polyethylene
- Left Side Flange Thickness [ADXL]
- 0.050 Inches Nominal

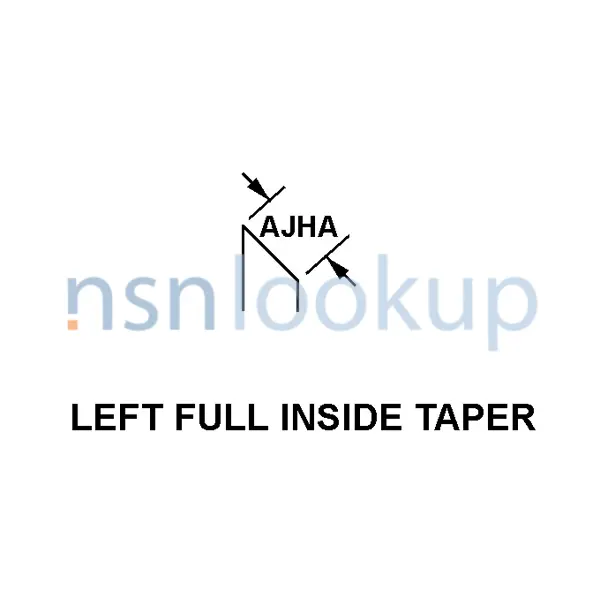

- Left-Side Flange Tip Style [BHQU]
- Left Full Inside Taper
- Length [ABRY]
- 1200.0 Inches Nominal
- Physical Form [AGXW]
- Solid

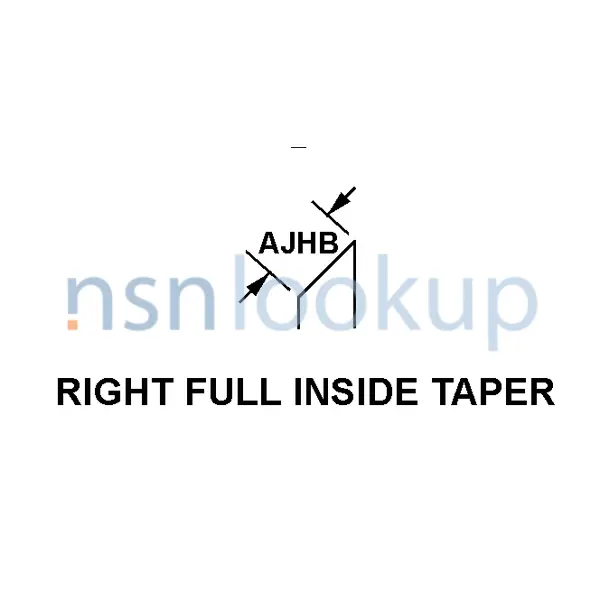

- Right-Side Flange Tip Style [CZLZ]
- Right Full Inside Taper
- Right Side Flange Height [ADXK]
- 0.170 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.050 Inches Nominal
- Overall Height [ABKW]
- 0.220 Inches Nominal
- Overall Width [ABMK]
- 0.205 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Edge, Protective
- Special Features [FEAT]
- Available In 100 Feet Per Roll
DLA Procurement Analysis 9390-01-641-6908
Management Data 9390-01-641-6908
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 9390-01-641-6908
Freight Information 9390-01-641-6908
9390-01-641-6908 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-01-641-6908 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-01-641-6908 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-01-641-6908 is not classified as a special type of cargo when transported by water. 9390-01-641-6908 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-01-641-6908 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
