9390-01-346-1732
Nonmetallic Channel
9390013461732 013461732 CC-1560-1.11 NUMBER 4
A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL. View more Nonmetallic Channel
May 2023
3
Marketplace 9390-01-346-1732
Request a Quotation from participating marketplace vendors
Related Documents 9390-01-346-1732 2+ Documents (More...)
BUY NE FedMall Updated Every Day 9390-01-346-1732 RQST NE Updated Every Day 9390-01-346-1732 RQST
Updated Every Day 9390-01-346-1732 RQST NE Related Documents 9390-01-346-1732 2+ Documents ( More...
Nonmetallic Channel 9390013461732 013461732 a day Upgrade your Account Upgrade 9390-01-346-1732Nonmetallic
Channel9390013461732 013461732 CC-1560-1.11 Documents 9390-01-346-1732 2+ Documents ( More... https/
Restrictions 9390-01-346-1732
9390-01-346-1732 is a Nonmetallic Channel that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 9390-01-346-1732
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 9390-01-346-1732
- Part Number
- Manufacturer
- Status
- CC-1560-1.11 NUMBER 4
- Manufacturer
- 21204 - Cornell-Carr Co., Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 9390-01-346-1732
- Characteristic
- Specifications
- FIIG
- Specifications
- A547C0
- Base Flange Thickness [AJGP]
- 0.125 Inches Nominal
- Criticality Code Justification [CRTL]
- Abry
- Cross-Sectional Shape Style [AAGR]
- Open Channel
- Material Document And Classification [MDCL]
- Mil-R-6855 Mil Spec Single Material Response
- Material [MATT]
- Rubber Synthetic
- Left Side Flange Taper Length [AJHA]
- 0.062 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.125 Inches Nominal

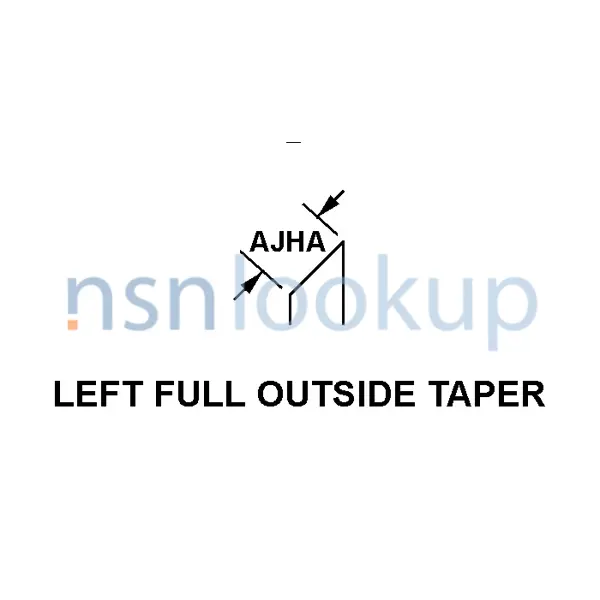

- Left-Side Flange Tip Style [BHQU]
- Left Full Outside Taper
- Length [ABRY]
- 85.500 Inches Nominal
- Right Side Flange Height [ADXK]
- 0.625 Inches Nominal
- Right Side Flange Taper Length [AJHB]
- 0.062 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.125 Inches Nominal

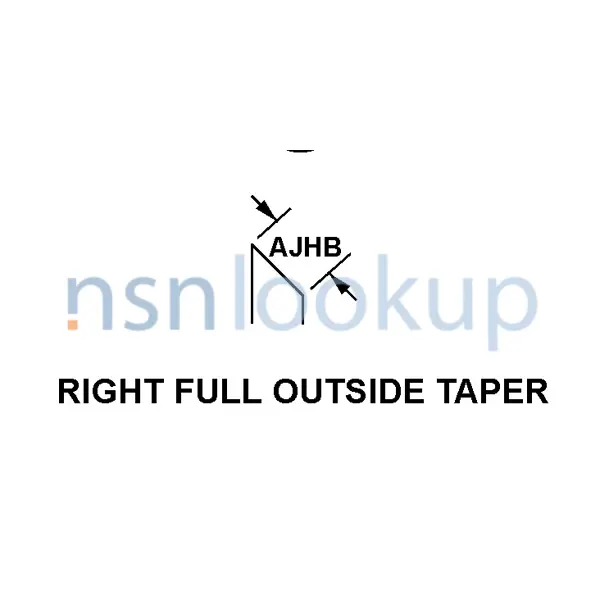

- Right-Side Flange Tip Style [CZLZ]
- Right Full Outside Taper
- Overall Height [ABKW]
- 0.750 Inches Nominal
- Overall Width [ABMK]
- 0.797 Inches Nominal
DLA Procurement Analysis 9390-01-346-1732
Management Data 9390-01-346-1732
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-01-346-1732
Freight Information 9390-01-346-1732
9390-01-346-1732 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-01-346-1732 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-01-346-1732 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-01-346-1732 is not classified as a special type of cargo when transported by water. 9390-01-346-1732 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-01-346-1732 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
