9390-01-159-3664
Nonmetallic Special Shaped Section
9390011593664 011593664 11M1003-1 ZZ-R-765C 10150525
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
7
Marketplace 9390-01-159-3664
Request a Quotation from participating marketplace vendors
Related Documents 9390-01-159-3664 2+ Documents (More...)
NE Updated Every Day 9390-01-159-3664 RQST Updated Every Day 9390-01-159-3664 RQST NE Related Documents
9390-01-159-3664 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-01-159-3664
www.nsnlookup.com /fsg-93/fsc-9320/us 9320-01-149-4903 https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-01-159-3664
Nonmetallic Special Shaped Section 011593664 Account Upgrade 9390-01-159-3664Nonmetallic Special
Restrictions 9390-01-159-3664
9390-01-159-3664 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 9390-01-159-3664
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Finland (WF01)
- Effective Date:
- 1 Jul 2009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 9390-01-159-3664
- Part Number
- Manufacturer
- Status
- 11M1003-1
- Manufacturer
- 76301 - The Boeing Company (Active)
- Incomplete Reference
- Incomplete Reference
- ZZ-R-765C
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10150525
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 9390-01-159-3664
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Base Flange Thickness [AJGP]
- 0.125 Inches Nominal

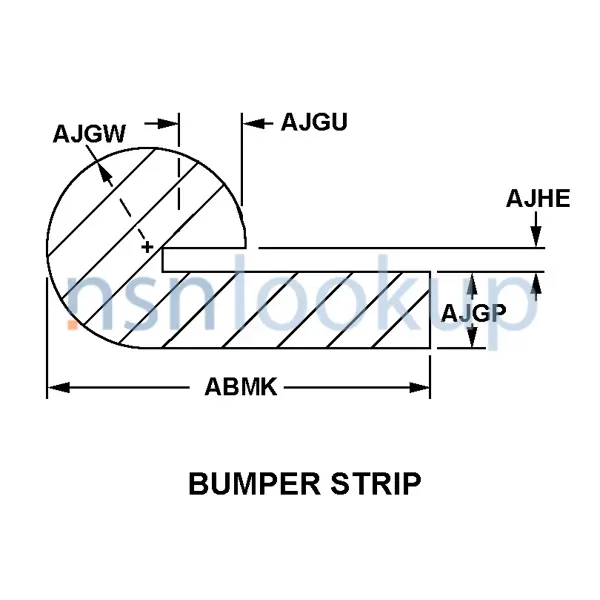

- Cross-Sectional Shape Style [AAGR]
- Bumper Strip
- Environmental Protection [ADZC]
- Tear Resistant
- First Slot/Groove Depth [AJGU]
- 0.300 Inches Nominal
- First Slot/Groove Width [AJHE]
- 0.100 Inches Nominal
- Material [MATT]
- Rubber Silicone Class Q
- Minimum Tensile Strength [AASH]
- 1200 Pounds Per Square Inch
- Nonmetallic Hardness Rating [AASF]
- 50.0 Nominal Shore Durometer A
- Outside Radius [AJGW]
- 0.175 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Temp Rating [ABJH]
- -94.0 Deg Fahrenheit And 400.0 Deg Fahrenheit
Weapon Systems (WSDC) 9390-01-159-3664
DLA Procurement Analysis 9390-01-159-3664
Management Data 9390-01-159-3664
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 9390-01-159-3664
Freight Information 9390-01-159-3664
9390-01-159-3664 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-01-159-3664 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-01-159-3664 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-01-159-3664 is not classified as a special type of cargo when transported by water. 9390-01-159-3664 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-01-159-3664 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
