9390-01-081-9578
Nonmetallic Channel
9390010819578 010819578 MIL-C-6183 AN8031-19-191 MS27833-19-191
A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL. View more Nonmetallic Channel
June 2023
7
Marketplace 9390-01-081-9578
Request a Quotation from participating marketplace vendors
Related Documents 9390-01-081-9578 5+ Documents (More...)

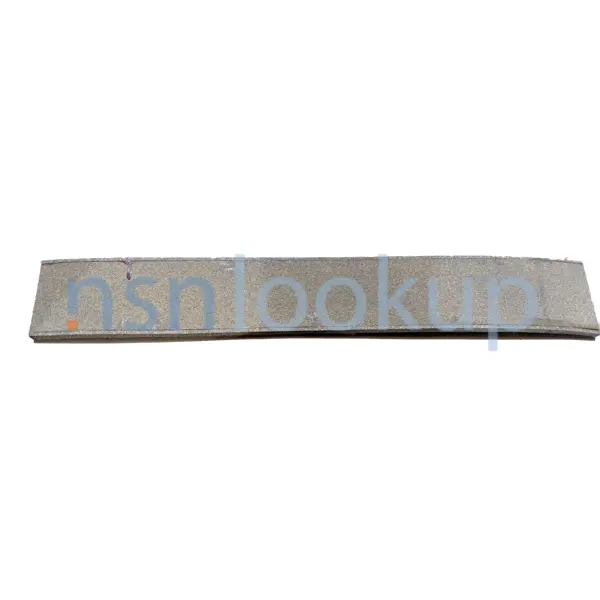

Photo 1/4 NSN 9390-01-081-9578 (Identification) 2/4 NSN 9390-01-081-9578 (Identification) 3/4 NSN
MIL-C-6183 NONMETALLIC CHANNEL 1251 EA NS Request Quotation Updated Every Day 9390-01-081-9578 RQST NE
Documents 9390-00-297-1185 5+ Documents ( More... https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-01-081-9578
Nonmetallic Channel 9390010819578 010819578 Quotation Updated Every Day 9390-01-081-9578 RQST NE
MIL-C-6183 GASKET 1251 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-C-6183 GASKET 1251 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-C-6183 GASKET 1251 EA NS Request Quotation Subscribe to View Vendor Details...
Nonmetallic Channel 9390010819578 010819578 MIL-C-6183 NONMETALLIC CHANNEL 1251 EA NS Request Quotation
GRAD https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-01-081-9578 Nonmetallic Channel 9390010819578
010819578 $1 a day Upgrade your Account Upgrade 9390-01-081-9578Nonmetallic Channel9390010819578 010819578
Restrictions 9390-01-081-9578
9390-01-081-9578 is a Nonmetallic Channel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 9390-01-081-9578
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 9390-01-081-9578
- US Air Force (FGGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Australia (ZA01)
- Effective Date:
- 1 Jul 2002
Approved Sources 9390-01-081-9578
- Part Number
- Manufacturer
- Status
- MS27833-19-191
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-6183
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- AN8031-19-191
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 9390-01-081-9578
- Characteristic
- Specifications
- FIIG
- Specifications
- A547C0
- Base Flange Thickness [AJGP]
- 0.250 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Semi-Closed Channel
- Environmental Protection [ADZC]
- Aromatic Fuel Resistant And Oil Resistant And Water Resistant
- Material [MATT]
- Rubber,Cork,Mil-C-6183,Type 1,Class 1 Or 2,Grade A
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Class And A Grade And I Type
- Nonmetallic Hardness Rating [AASF]
- 40.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
- Left Side Flange Thickness [ADXL]
- 0.125 Inches Nominal
- Left Side Top Flange Thickness [ADXR]
- 0.094 Inches Nominal
- Left Side Top Flange Width [ADYM]
- 0.312 Inches Nominal
- Left-Side Flange Tip Style [BHQU]
- Left Square End
- Length [ABRY]
- 19.250 Inches Nominal
- Right-Side Flange Tip Style [CZLZ]
- Right Square End
- Right Side Flange Height [ADXK]
- 0.094 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.125 Inches Nominal
- Right Side Top Flange Thickness [ADXS]
- 0.094 Inches Nominal
- Right Side Top Flange Width [ADYN]
- 0.312 Inches Nominal
- Overall Height [ABKW]
- 0.438 Inches Nominal
- Overall Width [ABMK]
- 2.625 Inches Nominal
Weapon Systems (WSDC) 9390-01-081-9578
DLA Procurement Analysis 9390-01-081-9578
Management Data 9390-01-081-9578
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-01-081-9578
Freight Information 9390-01-081-9578
9390-01-081-9578 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-01-081-9578 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-01-081-9578 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-01-081-9578 is not classified as a special type of cargo when transported by water. 9390-01-081-9578 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 9390-01-081-9578
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- --
- --
- Vendor's Setup or Folding Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 9390-01-081-9578 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
