9390-01-022-3935
Nonmetallic Special Shaped Section
9390010223935 010223935 ZX-10075
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
3
Marketplace 9390-01-022-3935
Request a Quotation from participating marketplace vendors
Related Documents 9390-01-022-3935 3+ Documents (More...)
Updated Every Day 9390-01-022-3935 RQST NE Related Documents 9390-01-022-3935 3+ Documents ( More...
) https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-01-022-3935 Nonmetallic Special Shaped Section 010223935
Nonmetallic Special Shaped Section 010223935 your Account Upgrade 9390-01-022-3935Nonmetallic Special
Shaped Section9390010223935 010223935 ZX-10075 3935 Nonmetallic Special Shaped Section 010223935 https
Nonmetallic Special Shaped Section 010223935 your Account Upgrade 9390-01-022-3935Nonmetallic Special
Shaped Section9390010223935 010223935 ZX-10075 84/fsc-8405/de 8405-12-151-0086 Man's Coat 8405121510086
Restrictions 9390-01-022-3935
9390-01-022-3935 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-01-022-3935
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 9390-01-022-3935
- Part Number
- Manufacturer
- Status
- ZX-10075
- Manufacturer
- 76385 - Minor Rubber Co Inc (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 9390-01-022-3935
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Base Flange Thickness [AJGP]
- 0.062 Inches Nominal

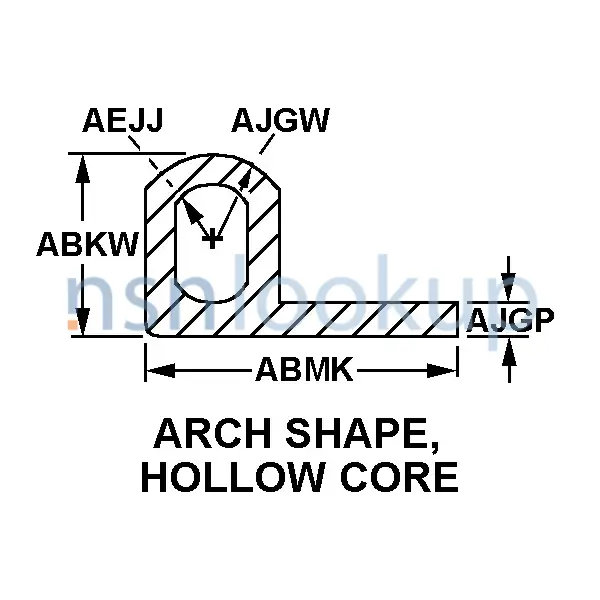

- Cross-Sectional Shape Style [AAGR]
- Arch Shape, Hollow Core
- Environmental Protection [ADZC]
- Petroleum Resistant And Low Temperature And Ozone Resistant And Weather Resistant
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1300 Pounds Per Square Inch
- Nonmetallic Hardness Rating [AASF]
- 35.0 Minimum Shore Durometer A And 45.0 Maximum Shore Durometer A
- Inside Radius [AEJJ]
- 0.078 Inches Nominal
- Length [ABRY]
- 120.000 Inches Nominal
- Reference Number Differentiating Characteristics [ZZZY]
- As Differentiated By Nonmetallic Hardness Rating And Length
- Outside Radius [AJGW]
- 0.125 Inches Nominal
- Overall Height [ABKW]
- 0.500 Inches Nominal
- Overall Width [ABMK]
- 0.812 Inches Nominal
DLA Procurement Analysis 9390-01-022-3935
Management Data 9390-01-022-3935
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-01-022-3935
Freight Information 9390-01-022-3935
9390-01-022-3935 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-01-022-3935 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-01-022-3935 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-01-022-3935 is not classified as a special type of cargo when transported by water. 9390-01-022-3935 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 9390-01-022-3935
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- --
- --
- Vendor's Setup or Folding Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 9390-01-022-3935 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
