9390-00-580-6810
Nonmetallic Special Shaped Section
9390005806810 005806810 MIL-R-6855 32306
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
7
Marketplace 9390-00-580-6810
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 9390-00-580-6810 5+ Documents (More...)
MIL-R-6855 NONMETALLIC SPECIAL SHAPED SECTION 795 LG NS Request Quotation 32306 NONMETALLIC SPECIAL SHAPED
Nonmetallic Special Shaped Section 005806810 MIL-R-6855 RUBBER ,SOLID Quotation MIL-R-6855 RUBBER
Quotation MIL-R-6855 RUBBER MIL-R-6855-1 RUBBER Quotation MIL-R-6855 RUBBER Quotation MIL-R-6855 RUBBER
MIL-R-6855-1 RUBBER Quotation MIL-R-6855 RUBBER ,SOLID Quotation MIL-R-6855 RUBBER MIL-R-6855 https/
MIL-R-6855-1 RUBBER Quotation MIL-R-6855 RUBBER ,SOLID Quotation MIL-R-6855 RUBBER MIL-R-6855 https//
Quotation Quotation MIL-R MIL-R-6855 RUBBER MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 MIL-R-6855 RUBBER
- - MIL-R - MIL-R-6855 - MIL-R-6855 - - MIL-R -6855 - MIL-R-6855 - MIL-R RUBBER MIL-R- MIL-R-6855 -
015171126 - MIL-R -6855 - - MIL-R-6855 - MIL-R - MIL-R- 6855 - MIL-R-6855 - - MIL-R MIL-R -6855 - MIL-R
/fsg-17/fsc-1720/uk
MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 - Quotation MIL-R-6855 RUBBER https//www.nsnlookup.com RUBBER
MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 - Quotation MIL-R-6855 RUBBER Quotation Quotation MIL-R https//
Restrictions 9390-00-580-6810
9390-00-580-6810 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-580-6810
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Oct 2015
Approved Sources 9390-00-580-6810
- Part Number
- Manufacturer
- Status
- MIL-R-6855
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 32306
- 75183 - Johnson Rubber Co The (Active)
- Advisory Reference
- Advisory Reference
Datasheet 9390-00-580-6810
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0

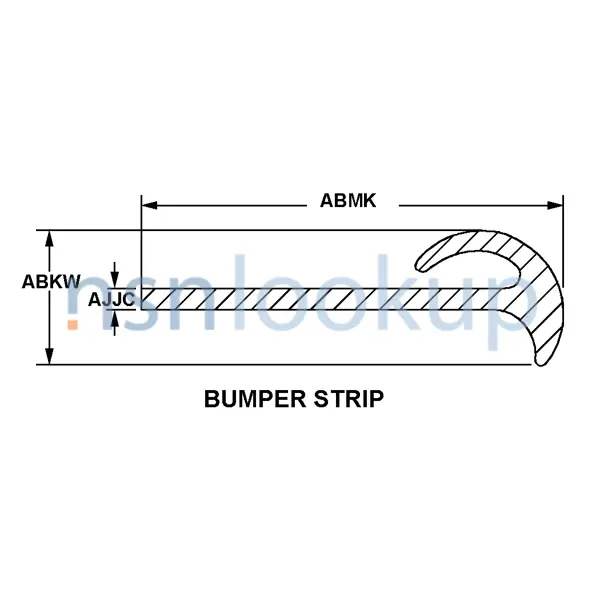

- Cross-Sectional Shape Style [AAGR]
- Bumper Strip
- Environmental Protection [ADZC]
- Oil Resistant And Ozone Resistant And Weather Resistant
- First/Top Flange Thickness [AJJC]
- 0.063 Inches Nominal
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1500 Pounds Per Square Inch
- Nondefinitive Spec/Std Data [ZZZT]
- A Type And 60 Grade And 2 Class And Extruded Form
- Nonmetallic Hardness Rating [AASF]
- 55.0 Minimum Shore Durometer A And 65.0 Maximum Shore Durometer A
- Length [ABRY]
- 96.000 Inches Nominal
- Overall Height [ABKW]
- 0.203 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Special Features [FEAT]
- Free From Cloth Imprint
DLA Procurement Analysis 9390-00-580-6810
Management Data 9390-00-580-6810
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- LG
- Subscribe
- 1
- LG
- Oct 2020
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- Oct 2019
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 8 Ft
- 00000000008FT
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 8 Ft
- 00000000008FT
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-580-6810
Freight Information 9390-00-580-6810
9390-00-580-6810 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-00-580-6810 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-00-580-6810 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-00-580-6810 is not classified as a special type of cargo when transported by water. 9390-00-580-6810 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-00-580-6810 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
