9390-00-541-9158
Nonmetallic Special Shaped Section
9390005419158 005419158 516-1 S1440052 MIL-R-6855 AS0516-1
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
6
Marketplace 9390-00-541-9158
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-541-9158 5+ Documents (More...)
,SOLID Quotation MIL-R-6855 RUBBER - MIL-R-6855 - MIL-R -6855 - - MIL-R-6855 - MIL-R - MIL-R- 6855 -
MIL-R-6855 - MIL-R- 6855 - MIL-R-6855 https - MIL-R-6855 - MIL-R -6855 - - MIL-R-6855 https//www.nsnlookup.com
MIL-R-6855-1 RUBBER Quotation MIL-R-6855 RUBBER ,SOLID Quotation MIL-R-6855 RUBBER MIL-R-6855 https//
Quotation Quotation MIL-R MIL-R-6855 RUBBER MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 MIL-R-6855 RUBBER
/fsg-17/fsc-1720/uk
MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 - Quotation MIL-R-6855 RUBBER https//www.nsnlookup.com RUBBER
MIL-R-6855-1 RUBBER MIL-R- MIL-R-6855 - Quotation MIL-R-6855 RUBBER Quotation Quotation MIL-R https//
- MIL-R-6855 - - MIL-R MIL-R -6855 - MIL-R-6855 - MIL-R-6855 /fsg-93/fsc-9320 - - MIL-R-6855 - MIL-R
- MIL-R- 6855 - MIL-R-6855 - MIL-R- 6855 - MIL-R-6855 https - MIL-R-6855 - MIL-R -6855 - - MIL-R-6855
Quotation MIL-R MIL-R-6855 RUBBER MIL-R-6855-1 RUBBER - MIL-R - MIL-R-6855 - - MIL-R MIL-R -6855 - MIL-R
-6855 - MIL-R-6855 /fsg-93/fsc-9320 - - MIL-R-6855 - MIL-R - MIL-R- 6855 - MIL-R-6855 - MIL-R- 6855 -
Restrictions 9390-00-541-9158
9390-00-541-9158 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-541-9158
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Oct 2015
Approved Sources 9390-00-541-9158
- Part Number
- Manufacturer
- Status
- 516-1
- Manufacturer
- 80132 - Naval Inventory Control Point (Active)
- Incomplete Reference
- Incomplete Reference
- S1440052
- 88277 - The Boeing Company (Active)
- Incomplete Reference
- Incomplete Reference
- AS0516-1
- 80132 - Naval Inventory Control Point (Active)
- Primary Buy
- Primary Buy
- MIL-R-6855
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 9390-00-541-9158
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0

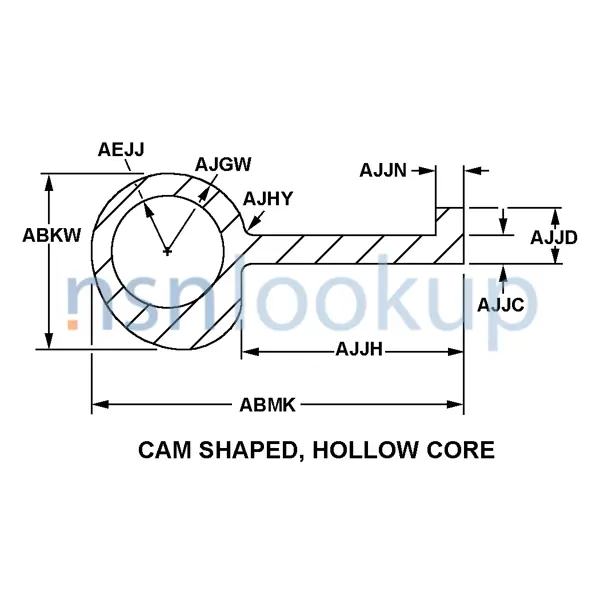

- Cross-Sectional Shape Style [AAGR]
- Cam Shaped, Hollow Core
- Environmental Protection [ADZC]
- Petroleum Resistant And Low Temperature And Ozone Resistant And Weather Resistant
- First Fillet Radius [AJHY]
- 0.063 Inches Nominal
- First Tip Width [AJJN]
- 0.062 Inches Nominal
- First Tip/End Thickness [AJJD]
- 0.094 Inches Nominal
- First/Top Flange Thickness [AJJC]
- 0.062 Inches Nominal
- First/Top Flange Width [AJJH]
- 0.500 Inches Nominal
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1300 Pounds Per Square Inch
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Class And Xtrudedshape Form And 40 Grade And A Type
- Nonmetallic Hardness Rating [AASF]
- 35.0 Minimum Shore Durometer A And 45.0 Maximum Shore Durometer A
- Inside Radius [AEJJ]
- 0.156 Inches Nominal
- Length [ABRY]
- 96.000 Inches Nominal
- Outside Radius [AJGW]
- 0.281 Inches Nominal
- Overall Height [ABKW]
- 0.656 Inches Nominal
- Overall Width [ABMK]
- 1.063 Inches Nominal
- Special Features [FEAT]
- Free From Cloth Imprint
DLA Procurement Analysis 9390-00-541-9158
Management Data 9390-00-541-9158
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-541-9158
Freight Information 9390-00-541-9158
9390-00-541-9158 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-00-541-9158 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-00-541-9158 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-00-541-9158 is not classified as a special type of cargo when transported by water. 9390-00-541-9158 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-00-541-9158 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
