9390-00-497-3161
Nonmetallic Special Shaped Section
9390004973161 004973161 MILR6855 S1159946
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
January 2023
6
Marketplace 9390-00-497-3161
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-497-3161 5+ Documents (More...)
MILR6855 NONMETALLIC SPECIAL SHAPED SECTION 7 LG NS Request Quotation Updated Every Day 9390-00-497-3161
RQST NE Updated Every Day 9390-00-497-3161 RQST Updated Every Day 9390-00-497-3161 RQST NE Related Documents
-6510Solid Rubber Sheet9320000596510 000596510 MILR6855 MILR6855 RUBBER SHEET,SOLID 7 EA NS Request Quotation
Account Upgrade 9390-00-497-3161Nonmetallic Special Shaped Section9390004973161 004973161 MILR6855 Account
/fsg-81/fsc-8140/us
MILR6855 PAD,CUSHIONING 7 EA NS Request Quotation Updated Every Day 8140-00-063-8149 RQST NE Updated
Nonmetallic Special Shaped Section 004973161 Account Upgrade 9390-00-497-3161Nonmetallic Special
MILR6855 NONMETALLIC SPECIAL SHAPED SECTION 7 FT NS Request Quotation Updated Every Day 9390-00-033-4849
Nonmetallic Special Shaped Section 004973161 Account Upgrade 9390-00-497-3161Nonmetallic Special
MILR6855 RUBBER SHEET,SOLID 7 EA NS Request Quotation Updated Every Day 9320-00-059-6510 RQST NE Updated
Nonmetallic Special Shaped Section 004973161 MILR6855 NONMETALLIC SPECIAL SHAPED SECTION 7 LG NS
Restrictions 9390-00-497-3161
9390-00-497-3161 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-497-3161
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 2001
Approved Sources 9390-00-497-3161
- Part Number
- Manufacturer
- Status
- S1159946
- Manufacturer
- 88277 - The Boeing Company (Active)
- Incomplete Reference
- Incomplete Reference
- MILR6855
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- S1159946
- 18355 - The Boeing Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9390-00-497-3161
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Base Flange Thickness [AJGP]
- 0.064 Inches Nominal

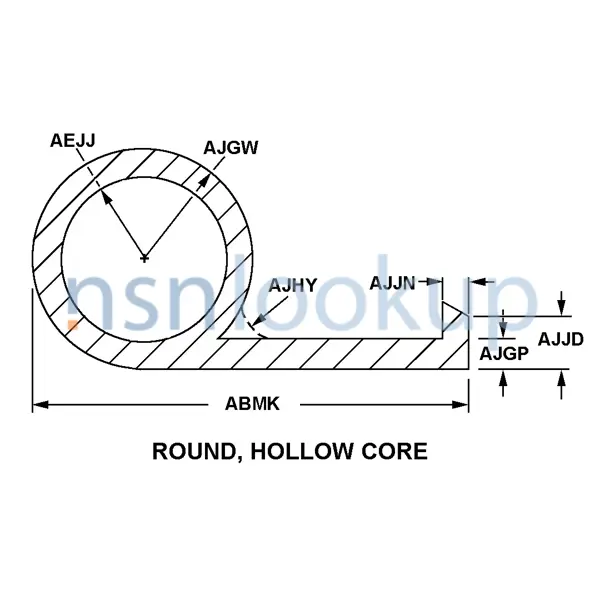

- Cross-Sectional Shape Style [AAGR]
- Round, Hollow Core
- Environmental Protection [ADZC]
- Oil Resistant And Ozone Resistant And Weather Resistant
- First Fillet Radius [AJHY]
- 0.031 Inches Nominal
- First Tip Width [AJJN]
- 0.062 Inches Nominal
- First Tip/End Thickness [AJJD]
- 0.094 Inches Nominal
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1500 Pounds Per Square Inch
- Nondefinitive Spec/Std Data [ZZZT]
- A Type And 60 Grade And 2 Class And Extruded Form
- Nonmetallic Hardness Rating [AASF]
- 55.0 Minimum Shore Durometer A And 65.0 Maximum Shore Durometer A
- Outside Radius [AJGW]
- 0.188 Inches Nominal
- Inside Radius [AEJJ]
- 0.137 Inches Nominal
- Length [ABRY]
- 96.000 Inches Nominal
- Overall Width [ABMK]
- 0.938 Inches Nominal
DLA Procurement Analysis 9390-00-497-3161
Management Data 9390-00-497-3161
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2007
- Defense Logistics Agency (DS)
- LG
- Subscribe
- 1
- LG
- Sep 2006
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- Z
- Discontinued-Use 9390-00-033-4849
- Z
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 8 Ft
- K
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 9390-00-033-4849
- Z
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-497-3161
Freight Information 9390-00-497-3161
9390-00-497-3161 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-00-497-3161 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-00-497-3161 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-00-497-3161 is not classified as a special type of cargo when transported by water. 9390-00-497-3161 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-00-497-3161 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
