9390-00-432-8381
Nonmetallic Special Shaped Section
9390004328381 004328381 S1115071 421-1 AS0-421-1
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
5
Marketplace 9390-00-432-8381
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-432-8381 1+ Documents (More...)
BUY NE FedMall Updated Every Day 9390-00-432-8381 RQST NE Updated Every Day 9390-00-432-8381 RQST
) https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-00-432-8381 Nonmetallic Special Shaped Section 004328381
Restrictions 9390-00-432-8381
9390-00-432-8381 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-432-8381
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 9390-00-432-8381
- Part Number
- Manufacturer
- Status
- S1115071
- Manufacturer
- 88277 - The Boeing Company (Active)
- Incomplete Reference
- Incomplete Reference
- 421-1
- 80132 - Naval Inventory Control Point (Active)
- Incomplete Reference
- Incomplete Reference
- AS0-421-1
- 80132 - Naval Inventory Control Point (Active)
- Incomplete Reference
- Incomplete Reference
- S1115071
- 18355 - The Boeing Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9390-00-432-8381
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0

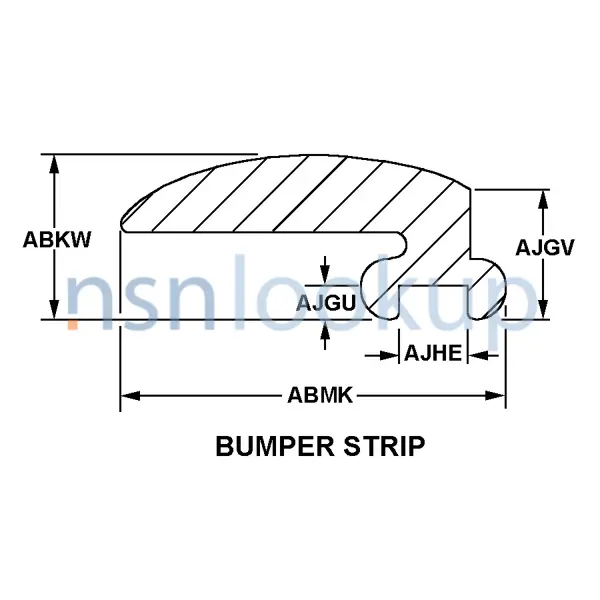

- Cross-Sectional Shape Style [AAGR]
- Bumper Strip
- Environmental Protection [ADZC]
- Petroleum Resistant And Low Temperature And Ozone Resistant And Weather Resistant
- First Offset Height [AJGV]
- 0.188 Inches Nominal
- First Slot/Groove Depth [AJGU]
- 0.034 Inches Nominal
- First Slot/Groove Width [AJHE]
- 0.187 Inches Nominal
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1300 Pounds Per Square Inch
- Nondefinitive Spec/Std Data [ZZZT]
- A Type And 40 Grade And 2 Class And Extruded Form
- Nonmetallic Hardness Rating [AASF]
- 35.0 Minimum Shore Durometer A And 45.0 Maximum Shore Durometer A
- Length [ABRY]
- 96.000 Inches Nominal
- Overall Height [ABKW]
- 0.375 Inches Nominal
- Overall Width [ABMK]
- 0.781 Inches Nominal
DLA Procurement Analysis 9390-00-432-8381
Management Data 9390-00-432-8381
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- LG
- Subscribe
- 1
- LG
- Oct 2021
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- Oct 2020
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- Oct 2019
- Department of the Navy (DN)
- LG
- Subscribe
- 1
- LG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 8 Ft
- 00000000008FT
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 8 Ft
- 00000000008FT
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-432-8381
Freight Information 9390-00-432-8381
9390-00-432-8381 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156950. A Sub NMFC of X. It has a NMFC Description of PLASTIC/RUBR MOULDINGS CHANNELS ETC. 9390-00-432-8381 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77775 which rates the freight between FCL and LCL. 9390-00-432-8381 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 9390-00-432-8381 is not classified as a special type of cargo when transported by water. 9390-00-432-8381 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 9390-00-432-8381 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
