9390-00-322-7081
Nonmetallic Special Shaped Section
9390003227081 003227081 HS5029-8 60 E 55 1694C
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
11
Marketplace 9390-00-322-7081
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-322-7081 4+ Documents (More...)
RQST NE Updated Every Day 9390-00-322-7081 RQST Updated Every Day 9390-00-322-7081 RQST NE Related Documents
9390-00-322-7081 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-00-322-7081
Nonmetallic Special Shaped Section 003227081 Assembly 5998014655371 https//www.nsnlookup.com /fsg
-93/fsc-9390/us 9390-00-322-7081 Nonmetallic Special Shaped Section 003227081 AssyEnd Item Identification
NE Related Documents , 5821014594711 Agency [CXCY]Front Panel AssyEnd Item Identification [AGAV]Rt-1694C
Nonmetallic Special Shaped Section 003227081 Assembly 5998014655371 Agency us 9390-00-322-7081
/fsc-5998/us 5998-01-465-5368 Circuit Card Assembly 5998014655368014655368 Identification [AGAV]Rt-1694C
Name Assigned By Controlling Agency [CXCY]Lpc Vocoder Assy (Rwas)End Item Identification [AGAV]Rt-1694C
Restrictions 9390-00-322-7081
9390-00-322-7081 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 9390-00-322-7081
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 9390-00-322-7081
- US Army (A920)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A186
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 9390-00-322-7081
- Part Number
- Manufacturer
- Status
- HS5029-8
- Manufacturer
- 82577 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 60 E 55
- 06470 - West American Rubber Company, Llc. (Active)
- Secondary Buy
- Secondary Buy
- 1694C
- 52526 - Sierra Rubber Products And (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9390-00-322-7081
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Base Flange Thickness [AJGP]
- 0.015 Inches Minimum And 0.025 Inches Maximum
- Base Flange Width [AJGQ]
- 0.235 Inches Minimum And 0.265 Inches Maximum

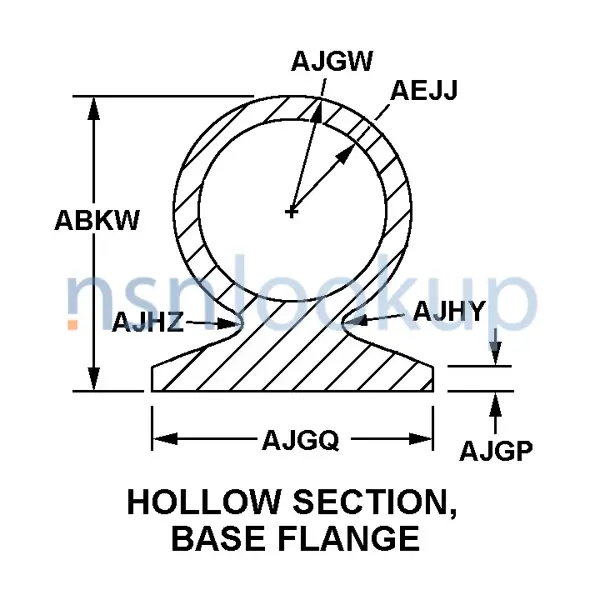

- Cross-Sectional Shape Style [AAGR]
- Hollow Section, Base Flange
- First Fillet Radius [AJHY]
- 0.015 Inches Minimum And 0.045 Inches Maximum
- Material [MATT]
- Rubber
- Outside Radius [AJGW]
- 0.2495 Inches Minimum And 0.2805 Inches Maximum
- Inside Radius [AEJJ]
- 0.1965 Inches Minimum And 0.2095 Inches Maximum
- Second Fillet Radius [AJHZ]
- 0.015 Inches Minimum And 0.045 Inches Maximum
- Overall Height [ABKW]
- 0.514 Inches Minimum And 0.586 Inches Maximum
