9390-00-282-3177
Nonmetallic Special Shaped Section
9390002823177 002823177 ASO-177-1 S1104311
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
January 2023
8
Marketplace 9390-00-282-3177
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-282-3177 1+ Documents (More...)
RQST NE Updated Every Day 9390-00-282-3177 RQST Updated Every Day 9390-00-282-3177 RQST NE Related Documents
9390-00-282-3177 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-00-282-3177
Restrictions 9390-00-282-3177
9390-00-282-3177 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-282-3177
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 9390-00-282-3177
- Part Number
- Manufacturer
- Status
- ASO-177-1
- Manufacturer
- 80132 - Naval Inventory Control Point (Active)
- Incomplete Reference
- Incomplete Reference
- S1104311
- 88277 - The Boeing Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 9390-00-282-3177
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Base Flange Width [AJGQ]
- 0.469 Inches Nominal

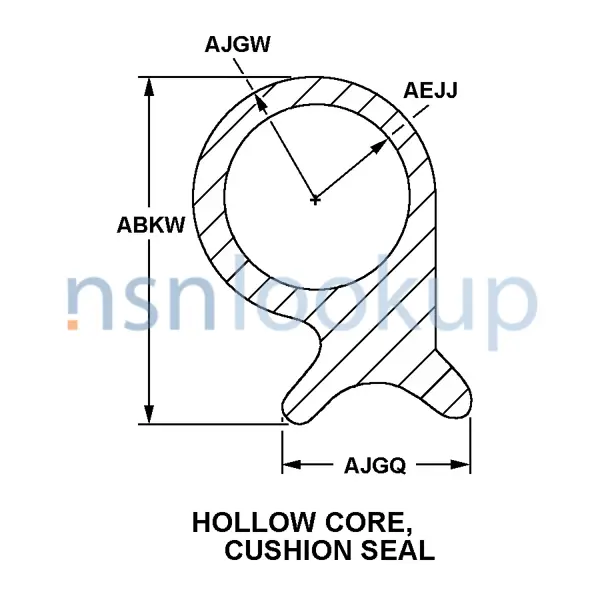

- Cross-Sectional Shape Style [AAGR]
- Hollow Core, Cushion Seal
- Environmental Protection [ADZC]
- Oil Resistant And Low Temperature And Ozone Resistant And Weather Resistant
- Material [MATT]
- Rubber Chloroprene Class Cr
- Minimum Tensile Strength [AASH]
- 1500 Pounds Per Square Inch
- Nonmetallic Hardness Rating [AASF]
- 55.0 Minimum Shore Durometer A And 65.0 Maximum Shore Durometer A
- Outside Radius [AJGW]
- 0.250 Inches Nominal
- Inside Radius [AEJJ]
- 0.188 Inches Nominal
- Length [ABRY]
- 144.000 Inches Nominal
- Reference Number Differentiating Characteristics [ZZZY]
- As Differentiated By Length
- Overall Height [ABKW]
- 0.672 Inches Nominal
Similar Supply Items to 9390-00-282-3177
Freight Information 9390-00-282-3177
9390-00-282-3177 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 000000. A Sub NMFC of X. It has a NMFC Description of NO NMFC FREIGHT DESCRIPTION. 9390-00-282-3177 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 00000 which rates the freight between FCL and LCL. 9390-00-282-3177 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 9390-00-282-3177 is not classified as a special type of cargo when transported by water. 9390-00-282-3177 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
