9390-00-202-1876
Nonmetallic Special Shaped Section
9390002021876 002021876 111749-08800 8636179
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
November 2023
8
Marketplace 9390-00-202-1876
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 9390-00-202-1876 4+ Documents (More...)
BUY NE FedMall Updated Every Day 9390-00-202-1876 RQST NE Updated Every Day 9390-00-202-1876 RQST
Updated Every Day 9390-00-202-1876 RQST NE Related Documents 9390-00-202-1876 4+ Documents ( More...
Nonmetallic Special Shaped Section 002021876 Upgrade your Account Upgrade 9390-00-202-1876Nonmetallic
Special Shaped Section9390002021876 002021876 111749 Request a Quotation from participating marketplace
Nonmetallic Special Shaped Section 002021876 Upgrade your Account Upgrade 9390-00-202-1876Nonmetallic
Special Shaped Section9390002021876 002021876 111749 -08800 NONMETALLIC SPECIAL SHAPED SECTION 8 EA
Nonmetallic Special Shaped Section 002021876 Upgrade your Account Upgrade 9390-00-202-1876Nonmetallic
Special Shaped Section9390002021876 002021876 111749 Request a Quotation from participating marketplace
Restrictions 9390-00-202-1876
9390-00-202-1876 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 9390-00-202-1876
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 9390-00-202-1876
- US Army (A920)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A186
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Supplementary Collaborators:
- GT
Approved Sources 9390-00-202-1876
- Part Number
- Manufacturer
- Status
- 111749-08800
- Manufacturer
- 7EK50 - Textron Aviation Inc (Active)
- Primary Buy
- Primary Buy
- 111749-08800
- 70898 - Beechcraft Corporation (Replaced)
- Original Design
- Original Design
- 8636179
- 19200 - Combat Capabilities Development (Active)
- Secondary Buy
- Secondary Buy
Datasheet 9390-00-202-1876
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0

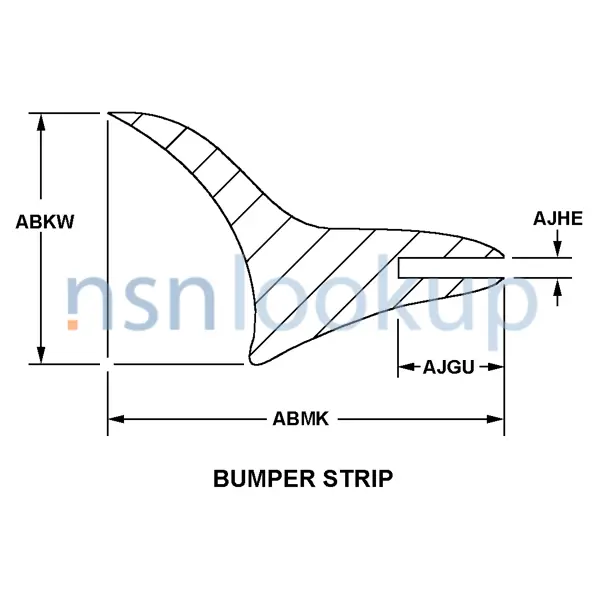

- Cross-Sectional Shape Style [AAGR]
- Bumper Strip
- Environmental Protection [ADZC]
- Petroleum Resistant And Low Temperature And Ozone Resistant And Weather Resistant
- First Slot/Groove Depth [AJGU]
- 0.500 Inches Nominal
- First Slot/Groove Width [AJHE]
- 0.047 Inches Nominal
- Material [MATT]
- Rubber Synthetic
- Minimum Tensile Strength [AASH]
- 1500 Pounds Per Square Inch
- Nonmetallic Hardness Rating [AASF]
- 45.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
- Length [ABRY]
- 88.000 Inches Nominal
- Overall Height [ABKW]
- 0.750 Inches Nominal
- Overall Width [ABMK]
- 0.875 Inches Nominal
- Special Features [FEAT]
- Smooth Finish And Free From Cloth Imprint
DLA Procurement Analysis 9390-00-202-1876
- Last Stock Position:
- 22 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 9390-00-202-1876
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-202-1876
Freight Information 9390-00-202-1876
9390-00-202-1876 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-00-202-1876 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-00-202-1876 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-00-202-1876 is not classified as a special type of cargo when transported by water. 9390-00-202-1876 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 9390-00-202-1876
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- --
- --
- Vendor's Setup or Folding Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 9390-00-202-1876 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE8E522P0827
- 09 Mar 2022
- Subscribe
- 93
- Subscribe
- Subscribe
- Subscribe
- SPE8E518V3621
- 08 Aug 2018
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE8E518P0098
- 05 Oct 2017
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE8E517V1539
- 21 Feb 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE8E516V2447
- 27 Jul 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE8E616M0553
- 30 Jun 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM8E913M0996P00001
- 08 Jul 2013
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 9390-00-202-1876 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
