9390-00-141-7954
Nonmetallic Special Shaped Section
9390001417954 001417954 MILR3065 FRR4342-1 A27-3760A
A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section
May 2023
19
Marketplace 9390-00-141-7954
Request a Quotation from participating marketplace vendors
Related Documents 9390-00-141-7954 5+ Documents (More...)
MILR3065 NONMETALLIC SPECIAL SHAPED SECTION 7 EA NS Request Quotation Updated Every Day 9390-00-141-7954
RQST NE Updated Every Day 9390-00-141-7954 RQST Updated Every Day 9390-00-141-7954 RQST NE Related Documents
Nonmetallic Special Shaped Section 001417954 Upgrade 9390-00-141-7954Nonmetallic Special Shaped
Section9390001417954 001417954 MILR3065 FRR4342-1 A27-3760A -93/fsc-9390/us 9390-00-141-7954 Nonmetallic
MILR3065 NONMETALLIC CHANNEL 7 EA NS Request Quotation Updated Every Day 9390-00-309-2731 RQST NE Updated
Nonmetallic Special Shaped Section 001417954 MILR3065 NONMETALLIC SPECIAL SHAPED SECTION 7 EA NS
MILR3065 NONMETALLIC CHANNEL 7 FT NS Request Quotation Updated Every Day 9390-00-053-2552 RQST NE Updated
Nonmetallic Special Shaped Section 001417954 MILR3065 NONMETALLIC SPECIAL SHAPED SECTION 7 EA NS
MILR3065 NONMETALLIC CHANNEL 7 FT NS Request Quotation FedMall Updated Every 15 Minutes 9390-00-060-9569
Nonmetallic Special Shaped Section 001417954 https//www.nsnlookup.com /fsg-93/fsc-9390/us 9390-
Restrictions 9390-00-141-7954
9390-00-141-7954 is a Nonmetallic Special Shaped Section that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 9390-00-141-7954
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 9390-00-141-7954
- Part Number
- Manufacturer
- Status
- MILR3065
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- FRR4342-1
- 28527 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- A27-3760A
- 20950 - Espey Mfg And Electronics Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9390-00-141-7954
- Characteristic
- Specifications
- FIIG
- Specifications
- A547D0
- Aperture Width [ADUE]
- 0.078 Inches Nominal
- Aperture Height [AHGN]
- 0.094 Inches Nominal

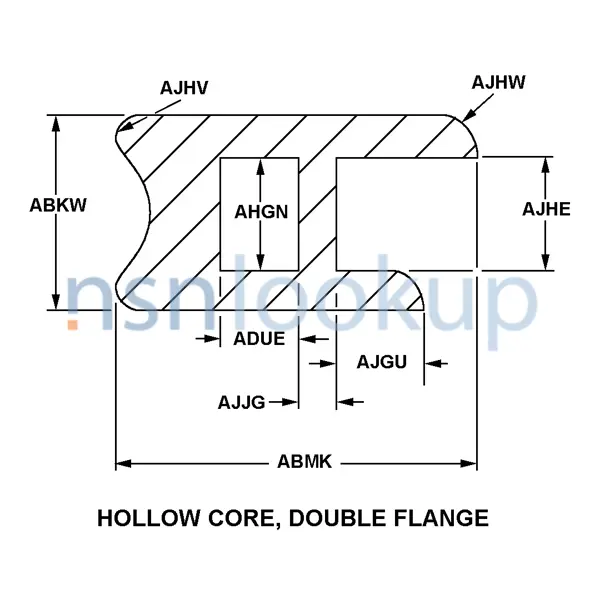

- Cross-Sectional Shape Style [AAGR]
- Hollow Core, Double Flange
- Environmental Protection [ADZC]
- Oil Resistant
- First Corner Radius [AJHV]
- 0.125 Inches Nominal
- First Slot/Groove Depth [AJGU]
- 0.156 Inches Nominal
- First Slot/Groove Width [AJHE]
- 0.085 Inches Nominal
- Material [MATT]
- Rubber Synthetic
- Minimum Tensile Strength [AASH]
- 1200 Pounds Per Square Inch
- Nonmetallic Hardness Rating [AASF]
- 45.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
- Isthmus Width [AJJG]
- 0.062 Inches Nominal
- Length [ABRY]
- 49.750 Inches Minimum And 50.250 Inches Maximum
- Second Corner Radius [AJHW]
- 0.047 Inches Nominal
- Overall Height [ABKW]
- 0.179 Inches Nominal
- Overall Width [ABMK]
- 0.453 Inches Nominal
- Special Features [FEAT]
- As Modificed By The Material Specification Grade And Minimum Tensile Strength
DLA Procurement Analysis 9390-00-141-7954
Management Data 9390-00-141-7954
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 9390-00-141-7954
Freight Information 9390-00-141-7954
9390-00-141-7954 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 9390-00-141-7954 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 9390-00-141-7954 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 9390-00-141-7954 is not classified as a special type of cargo when transported by water. 9390-00-141-7954 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
