9340-01-138-1522

Observation Window

9340011381522 011381522 12012118 SW 9340-01-138-1522

A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT. View more Observation Window

Managed by United States

NSN Created on 8 Sep 1982

Data Last Changed
August 2025

NATO Update Count
30

NATO Data Quality

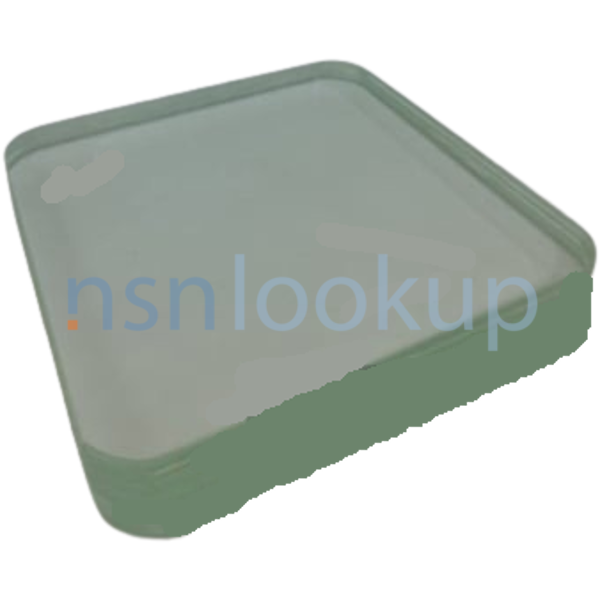

9340-01-138-1522 WINDOW,OBSERVATION 9340011381522 011381522 1/2 — 9340-01-138-1522 Photo 1/2

STYL Style 2 for 9340-01-138-1522 2/2 — NSN 9340-01-138-1522 (Identification) 2/2

Marketplace 9340-01-138-1522

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

12012118 WINDOW,OBSERVATION 6 EA NS

Subscribe to View Vendor Details...

T WINDOW,OBSERVATION 15 EA NS

Updated Every Day

9340-01-138-1522 RQST NE

Restrictions 9340-01-138-1522

9340-01-138-1522 is a Observation Window that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 9340-01-138-1522

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 9340-01-138-1522

US Army (A920)
Effective Date:: 1 Mar 2006
Former MOE Rule:: A186
Supplementary Receivers:: BF; AMC 1 AMSC G IMC Z IMCACTY BF

US Air Force (FGGI)
Effective Date:: 1 Mar 2006
Former MOE Rule:: FGKZ; AMC 1 AMSC G IMC Z IMCACTY TG

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 May 1997

Canada (ZC01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Nov 1994

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Jan 2003

Approved Sources 9340-01-138-1522

Part Number
Manufacturer
Status
12012118: 19204 - Army, United States Department Of (Active); Primary Buy; RNCC 3 RNVC 2 DAC 2
SW 9340-01-138-1522: A3NJJ; Secondary Buy; RNCC 5 RNVC 2 DAC 5
12012118: 19200 - Combat Capabilities Development (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
9340011381522: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 9340-01-138-1522

Characteristic
Specifications
FIIG: A15000
First Corner Radius [AJHV]: 1.240 Inches Nominal
Fourth Corner Radius [AKVK]: 1.240 Inches Nominal
Material Transparency [AJQE]: Clear
Material [MATT]: Glass
Style Designator [STYL]: Rounded Corners
Second Corner Radius [AJHW]: 1.240 Inches Nominal
Overall Length [ABHP]: 11.969 Inches Minimum And 12.031 Inches Maximum
Overall Thickness [ADUM]: 1.839 Inches Minimum And 1.901 Inches Maximum
Overall Width [ABMK]: 11.969 Inches Minimum And 12.031 Inches Maximum
Special Features [FEAT]: Material Is Laminated And Bullet Resistant
Third Corner Radius [AJHX]: 1.240 Inches Nominal

Weapon Systems (WSDC) 9340-01-138-1522

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 9340-01-138-1522

Last Stock Position:: 170 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 9340-01-138-1522

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

P: The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 9340-01-138-1522

Freight Information 9340-01-138-1522

9340-01-138-1522 has freight characteristics managed by the Netherlands.It has a National Motor Freight Classification (NMFC) of 156300. A Sub NMFC of Z. It has a NMFC Description of PLASTIC SHEET/PLATE NOI. 9340-01-138-1522 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 9340-01-138-1522 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 77825 which rates the freight between FCL and LCL. 9340-01-138-1522 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 9340-01-138-1522 is not classified as a special type of cargo when transported by water. 9340-01-138-1522 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 9340-01-138-1522

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 9340-01-138-1522 2 Records
