8415-00-935-3140

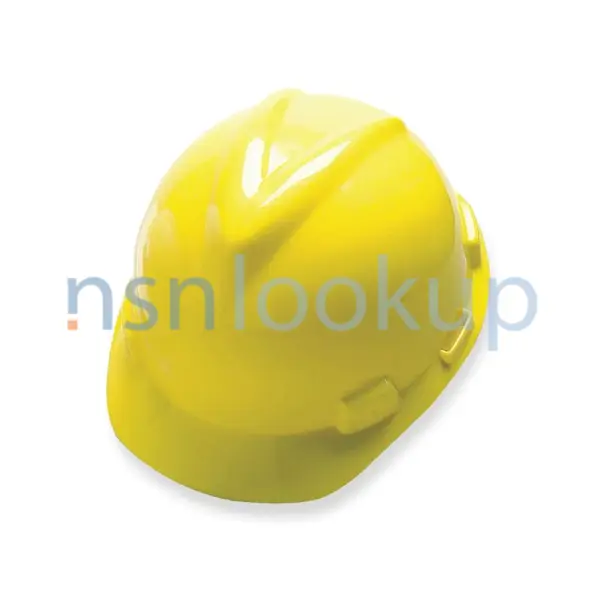

Safety Helmet
8415009353140 009353140 ISEA/ANSI Z89.1 GGG-H-142 A-A-2269 GGG-H-142 TY2 A-A-2269 CLATY2STA A-A-2269 TY2
A rigid, molded item of headwear worn by personnel, employed or visiting, in an area where impact from falling or flying objects is evident. It may protect the wearer from electrical shock, burn, and contact with exposed electrical conductors. It may be equipped with a nonconducting chin strap and an adjustable headband. Excludes HELMET, FIREMAN'S. View more Safety Helmet
November 2023
25
Marketplace 8415-00-935-3140
Request a Quotation from participating marketplace vendors
Related Documents 8415-00-935-3140 5+ Documents (More...)
S09CKA A-A-2269 CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com https//www.nsnlookup.com
S09CKA A-A-2269 CLATY2STA TY2 visiting GGG-H-142 TY2 2269 TY2 GGG-H-142 TY2 visiting GGG-H-142 TY2 2269
CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com S09CKA A-A-2269 2269 TY2 GGG-H-142 TY2
CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com - TY2 2269 TY2 GGG-H-142 S09CKA A-A-2269 CLATY2STA
CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com S09CKA A-A-2269 2269 TY2 visiting GGG-H
TY2 GGG-H-142 S09CKA A-A-2269 CLATY2STA CLCTY2STB TY2 GGG-H https//www.nsnlookup.com /fsg-84/fsc-8415
S09CKA A-A-2269 CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https S09CKA A-A-2269 CLATY2STA TY2GGG-H TY2
2269 TY2 GGG-H S09CKA A-A-2269 CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com https/
GGG-H-142 S09CKA A-A-2269 CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https Safety Helmet https//www.nsnlookup.com
CLATY2STA CLCTY2STB TY2 GGG-H-142 TY2 https//www.nsnlookup.com TY2 GGG-H-142 S09CKA A-A-2269 CLATY2STA
Restrictions 8415-00-935-3140
8415-00-935-3140 is a Safety Helmet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 8415-00-935-3140
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 8415-00-935-3140
- US Army (A143)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AM
- MOE Rule:
- B750
- Effective Date:
- 1 Dec 2008
- Former MOE Rule:
- B480
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FTGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJNHSHD
- Supplementary Receivers:
- JV
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1994
- Portugal (ZP01)
- Effective Date:
- 1 Jul 2002
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 8415-00-935-3140
- Part Number
- Manufacturer
- Status
- ISEA/ANSI Z89.1
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- GGG-H-142
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-2269
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-H-142 TY2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-2269 CLATY2STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-2269 TY2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 8415-00-935-3140
- Characteristic
- Specifications
- FIIG
- Specifications
- A217A0
- User Designator [APXA]
- Construction Worker
- Color [HUES]
- Yellow Main Body
- Headwear Fastening Method [AKLN]
- Chin Strap
- Electrical Shock Resistance In Volts [AKLY]
- 20000
- Garment Size [AJMX]
- 6-1/2 To 8
- Special Features [FEAT]
- Suspension System, Headband, Adjustable Nape And Chin Straps; Style: Cap, Front Peak, Without Headlamp Clips; Type 1 Intended To Reduce The Force Of Impact Resulting From A Blow To The Top Of The Head; Class E Electrical Intended To Reduce The Danger Of Contact Exposure To High Voltage Conductors; Samples Shall Be Proof-Tested At 20,000 Volts (Phase To Ground)
- Environmental Attribute Code [ENAC]
- Plastics Removal In The Marine Environment (Prime) Product
DLA Procurement Analysis 8415-00-935-3140
Management Data 8415-00-935-3140
Army
- Materiel Category and Inventory Manager:
- F
- Clothing, Textiles and Non-Medical Toiletries (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 8415-00-935-3140
Freight Information 8415-00-935-3140
8415-00-935-3140 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 098230. A Sub NMFC of X. It has a NMFC Description of CAP HAT HELMET SAFETY NOI. 8415-00-935-3140 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 51420 which rates the freight between FCL and LCL. 8415-00-935-3140 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 709 for ocean manifesting and military sealift. 8415-00-935-3140 is not classified as a special type of cargo when transported by water. 8415-00-935-3140 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
