8145-01-281-2914

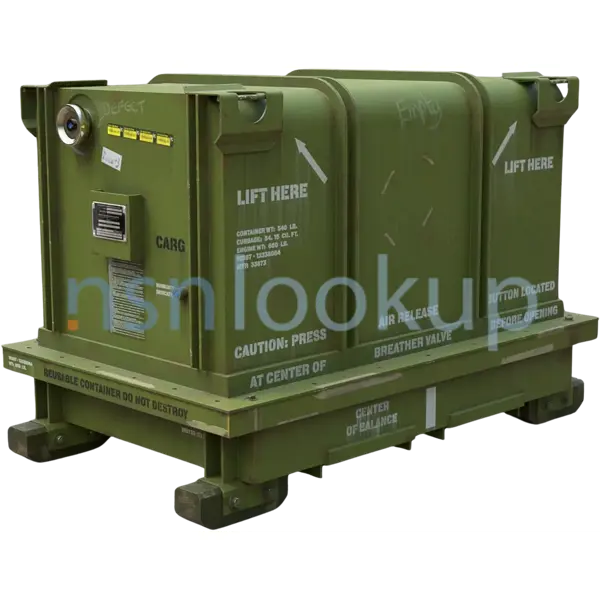

8V71 Engine Shipping And Storage Container
8145012812914 012812914 12268285
A multisectional shipping and storage container with provisions included for assembly. View more Engine Shipping And Storage Container
March 2025
12
Marketplace 8145-01-281-2914
Request a Quotation from participating marketplace vendors
Related Documents 8145-01-281-2914 4+ Documents (More...)
RQST NE Updated Every Day 8145-01-281-2914 RQST Updated Every Day 8145-01-281-2914 RQST NE Related
Documents 8145-01-281-2914 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-81/fsc-8145/us 8145
RQST NE Updated Every Day 8145-01-281-2914 RQST Updated Every Day 8145-01-281-2914 RQST NE Related Documents
8145-01-281-2914 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-81/fsc-8145/us 8145-01-281-2914
Engine Shipping And Storage Container www.nsnlookup.com /fsg-81/fsc-8145/us 8145-01-281-2914 https
Contains:1 Engine,8V71t P/N 11669155; 1 Engine Container P/N 12268285; 1 Adjustment Instructions For
Engine Shipping And Storage Container www.nsnlookup.com /fsg-81/fsc-8145/us 8145-01-281-2914 https
Contains:1 Engine,8V71t P/N 11669155; 1 Engine Container P/N 12268285; 1 Adjustment Instructions For
Restrictions 8145-01-281-2914
IUID Required
8145-01-281-2914 is a 8V71 Engine Shipping And Storage Container Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 8145-01-281-2914
- US Army (A202)
- Effective Date:
- 1 Apr 1998
- Former MOE Rule:
- A203
- Supplementary Receivers:
- BF
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Dec 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2002
Approved Sources 8145-01-281-2914
- Part Number
- Manufacturer
- Status
- 12268285
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 8145-01-281-2914
- Characteristic
- Specifications
- FIIG
- Specifications
- T358-E
- Accommodated Equipment Identifying Number [BJMZ]
- 8V71-T Model No.
- End Item Identification [AGAV]
- 2815-01-260-0211
- Material [MATT]
- Aluminum
- Mounting Surface Plane [AFJR]
- Parallel
- Shape [SHPE]
- Rectangular
- Overall Height [ABKW]
- 4.573 Feet Maximum
- Overall Length [ABHP]
- 5.865 Feet Maximum
- Special Features [FEAT]
- Upper Container,Pn 12268287; Lower Container,Pn 12268286; Humidityindicator,Pn 10906697; Breather Valve,Pn 1001-242880
- Window [ATDN]
- Not Included
- Surface Treatment [SFTT]
- Phosphate
Management Data 8145-01-281-2914
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- G
- Replaces 8145-00-086-7617
- AAA
- G
- Department of the Army (DA)
- L
- G
- Replaces 8145-00-064-6734
- AAB
- G
- Department of the Army (DA)
- L
- R
- Refer To Net Price 5736.00
- NET PRICE 5736.00
- R
- Department of the Army (DA)
- L
- Dod I&S Family Master Nsn - - -
- AAC
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 8145-01-281-2914
Freight Information 8145-01-281-2914
8145-01-281-2914 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 041050. A Sub NMFC of B. It has a NMFC Description of CONTAINERS R VANS SHIPPING SUB2. 8145-01-281-2914 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. 8145-01-281-2914 is rated as class 150 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 30570 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 691 for ocean manifesting and military sealift. 8145-01-281-2914 is not classified as a special type of cargo when transported by water. 8145-01-281-2914 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 8145-01-281-2914
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Freeze – Below 32 F (Below 0 C)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 70.4" H x 57.6" W x 43.9" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 70.4" H x 57.6" W x 54.9" L
- --
- --
- --
- Special Requirements
- 70.4" H x 57.6" W x 54.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
