8140-01-613-7556
Ammunition Box
8140016137556 016137556 13045520
A reusable wooden box of solid construction designed to accommodate and protect ammunition during storage, handling and/or shipment. It usually consists of two rectangular or square face sections, mounted on the bottom section. The lid may be mounted on a side or front section or may be attached to one side or front section by hinges, springs or the like; it may have one or more plain, durable locking devices to accommodate lead seals. Instead of a hinged lid, one or both side sections or front sections may be detachable. For increased stability and/or stacking capability, the item may be equipped with carrying facilities. For containers specifically designed for special items see CONTAINER, SHIPPING AND STORAGE (as modified). Excludes CRATE, SHIPPING AND STORAGE, AMMUNITION. View more Ammunition Box
January 2023
1
Marketplace 8140-01-613-7556
Request a Quotation from participating marketplace vendors
Related Documents 8140-01-613-7556 1+ Documents (More...)
/fsg-81/fsc-8140/us
8140-01-613-7556 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-81/fsc-8140/us 8140-01-613-7556
Day 8140-01-613-7556 RQST NE Related Documents 8140-01-613-7556 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 8140-01-613-7556
8140-01-613-7556 is a Ammunition Box that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 8140-01-613-7556
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 8140-01-613-7556
- US Army (A901)
- Effective Date:
- 1 Nov 2012
Approved Sources 8140-01-613-7556
- Part Number
- Manufacturer
- Status
- 13045520
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 8140-01-613-7556
- Characteristic
- Specifications
- FIIG
- Specifications
- A06600
- Assembly Form [AFPM]
- Set-Up
- Closure Fastening Type [AFPQ]
- Hasp
- Closure Method [AFPP]
- Hinged Cover
- Handling Facility Type [AERU]
- Handle On Top
- Material [MATT]
- Plastic
- End Item Identification [AGAV]
- Packaging Material For Conventional Ammunition Maintenance And Renovation Project
- Inside Length [ADJU]
- 10.109 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Box, Ammunition, M19a2 Assembly
- Inside Depth [AFEF]
- 6.563 Inches Nominal
- Inside Surface Treatment [AAJQ]
- Painted
- Inside Width [ADJT]
- 3.453 Inches Nominal
- Outside Height [AFMW]
- 7.250 Inches Nominal
- Outside Length [ADJW]
- 10.563 Inches Nominal
- Outside Surface Treatment [AAJP]
- Painted
- Outside Width [ADJV]
- 3.813 Inches Maximum
- Overall Height [ABKW]
- 7.250 Inches Nominal
- Overall Length [ABHP]
- 10.563 Inches Nominal
- Overall Width [ABMK]
- 3.813 Inches Maximum

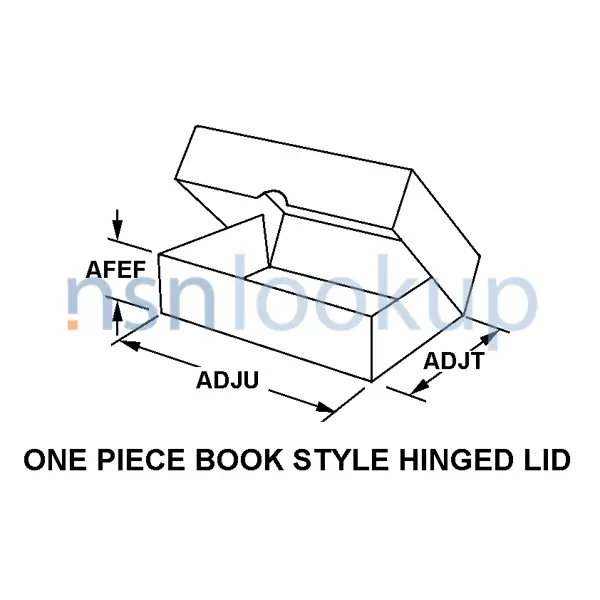

- Style Designator [STYL]
- One Piece Book Style Hinged Lid
Management Data 8140-01-613-7556
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2012
- Department of the Army (DA)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- D
- Single Manager Ammunition
- Appropriation and Budget Activity:
- K
- Ammunition
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- Y7
- Conventional Ammunition
Packaging Material for Conventional Ammunition Maintenance and Renovation Project
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 8140-01-613-7556
Freight Information 8140-01-613-7556
8140-01-613-7556 has freight characteristics.. 8140-01-613-7556 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
