8140-01-149-8547
Ammunition Box
8140011498547 011498547 12252446
A reusable wooden box of solid construction designed to accommodate and protect ammunition during storage, handling and/or shipment. It usually consists of two rectangular or square face sections, mounted on the bottom section. The lid may be mounted on a side or front section or may be attached to one side or front section by hinges, springs or the like; it may have one or more plain, durable locking devices to accommodate lead seals. Instead of a hinged lid, one or both side sections or front sections may be detachable. For increased stability and/or stacking capability, the item may be equipped with carrying facilities. For containers specifically designed for special items see CONTAINER, SHIPPING AND STORAGE (as modified). Excludes CRATE, SHIPPING AND STORAGE, AMMUNITION. View more Ammunition Box
January 2023
8
Marketplace 8140-01-149-8547
Request a Quotation from participating marketplace vendors
Related Documents 8140-01-149-8547 1+ Documents (More...)
/fsg-81/fsc-8140/us
RQST NE Updated Every Day 8140-01-149-8547 RQST Updated Every Day 8140-01-149-8547 RQST NE Related Documents
8140-01-149-8547 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-81/fsc-8140/us 8140-01-149-8547
Restrictions 8140-01-149-8547
8140-01-149-8547 is a Ammunition Box that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 8140-01-149-8547
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 8140-01-149-8547
- Germany (ZG01)
- Effective Date:
- 1 May 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 8140-01-149-8547
- Part Number
- Manufacturer
- Status
- 12252446
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 8140-01-149-8547
- Characteristic
- Specifications
- FIIG
- Specifications
- A06600
- Assembly Form [AFPM]
- Set-Up
- Assembly Method [AFPN]
- Welded
- Box Manufacturer Certificate [AFQG]
- Not Required
- Compartment Length [AFPT]
- 15.620 Inches
- Compartment Quantity [AFPV]
- 3
- Compartment Width [AFPU]
- 4.090 Inches And 4.090 Inches And 4.030 Inches
- Container Load Hazard Designation [AFPZ]
- Not Rated
- Cubic Capacity [AFPY]
- 0.5 Cubic Feet
- Humidity Control Design Feature [AFPX]
- No
- Material [MATT]
- Aluminum Alloy 5052
- Inside Length [ADJU]
- 15.620 Inches Nominal
- Inside Depth [AFEF]
- 16.240 Inches Nominal
- Inside Width [ADJT]
- 12.690 Inches Nominal
- Stacking Feature [AFQA]
- No

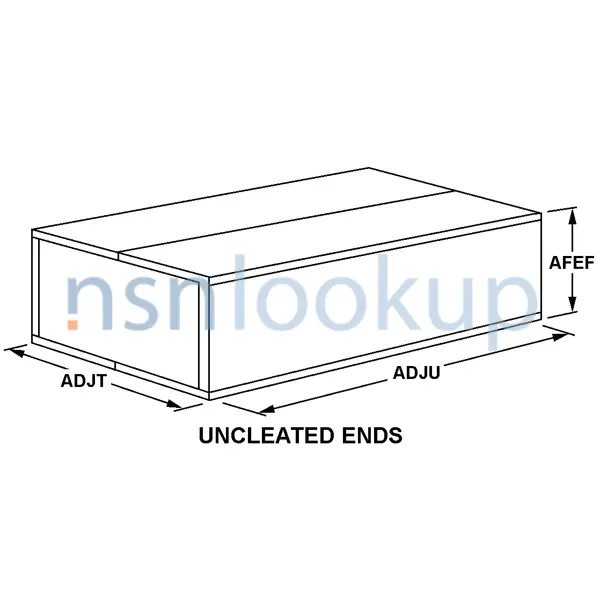

- Style Designator [STYL]
- Uncleated Ends
Similar Supply Items to 8140-01-149-8547
Freight Information 8140-01-149-8547
8140-01-149-8547 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 029790. A Sub NMFC of Z. It has a NMFC Description of BOXES R CHESTS TOOL/FISH TACKLE. 8140-01-149-8547 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 8140-01-149-8547 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 14075 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 8140-01-149-8547 is not classified as a special type of cargo when transported by water. 8140-01-149-8547 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
