8140-00-989-4904
Ammunition Shipping And Storage Crate
8140009894904 009894904 1569333 1569334
A reusable item of frame construction or consisting, in all parts, of equally spaced boards. The item is designed to accommodate ammunition during storage, handling, and/or shipment. Excludes: BOX, AMMUNITION. View more Ammunition Shipping And Storage Crate
January 2023
7
Marketplace 8140-00-989-4904
Request a Quotation from participating marketplace vendors
Related Documents 8140-00-989-4904 3+ Documents (More...)
United States (US) 4. 8140-00-989-4904 Marketplace Restrictions Approved Sources Datasheet Management
DEMIL: D | DEMILI : 1 | CRITICALITY : N | HMIC : N | PMIC : A | EDC: | ADPEC : 0 8140-00-989-4904
Ammunition Shipping And Storage Crate 8140-00-989-4904 8140009894904 009894904 is a reusable item
Ammunition Shipping And Storage Crate 8140-00-989-4904 8140009894904 009894904 is a reusable item
Restrictions 8140-00-989-4904
8140-00-989-4904 is a Ammunition Shipping And Storage Crate Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 8140-00-989-4904
- Germany (ZG01)
- Effective Date:
- 1 May 2005
Approved Sources 8140-00-989-4904
- Part Number
- Manufacturer
- Status
- 1569333
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 1569334
- 10001 - Navair And Navsea Managed Original (Active)
- Secondary Buy
- Secondary Buy
Datasheet 8140-00-989-4904
- Characteristic
- Specifications
- FIIG
- Specifications
- A06600
- Assembly Form [AFPM]
- Set-Up
- Cubic Capacity [AFPY]
- 3.4 Cubic Feet
- Material [MATT]
- Steel
- Inside Depth [AFEF]
- 13.000 Inches Nominal
- Inside Length [ADJU]
- 34.625 Inches Nominal
- Inside Width [ADJT]
- 13.000 Inches Nominal
- Special Features [FEAT]
- Mk 26 Mod 1 Empty,For One Fin Mk 15 Mod 1 Retard Type For 500 Pound Bomb Mk 82
- Stacking Feature [AFQA]
- Yes

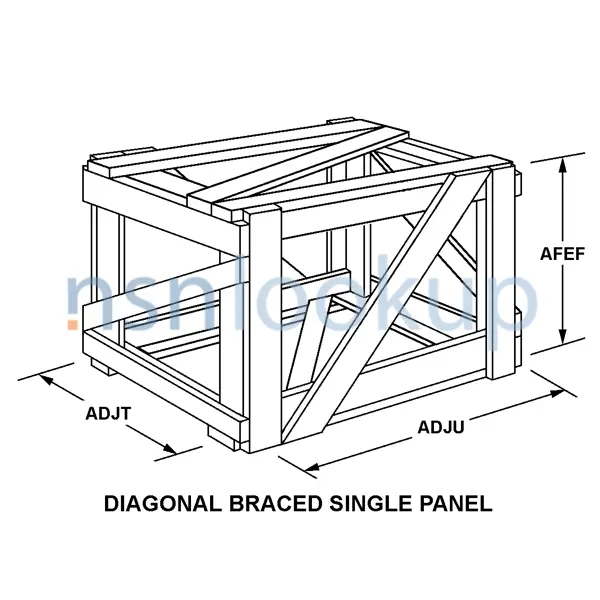

- Style Designator [STYL]
- Diagonal Braced Single Panel
NATO Stock Numbers Related to 8140-00-989-4904
Freight Information 8140-00-989-4904
8140-00-989-4904 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 146010. A Sub NMFC of X. It has a NMFC Description of CRATES BOMB/BOMB VANE STL SU. 8140-00-989-4904 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. 8140-00-989-4904 is rated as class 125 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 72910 which rates the freight between FCL and LCL. 8140-00-989-4904 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 691 for ocean manifesting and military sealift. 8140-00-989-4904 is not classified as a special type of cargo when transported by water. 8140-00-989-4904 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 8140-00-989-4904
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 35.0" H x 12.9" W x 12.9" L
- --
- --
- --
- Special Requirements
- 35.0" H x 12.9" W x 12.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
