8140-00-825-1402
Ammunition Packing Box
8140008251402 008251402 B6006941
An expandable special-purpose box specifically designed for packing, storage and/or shipment of ammunition and ammunition components. It is designed to accommodate a specific type and size of ammunition or component in designated quantities and includes various liners, dividers, separators, inserts, and other packing materials. May be constructed of paperboard, fiberboard, or wood and may be used as an inner container. Excludes BOX (1), AMMUNITION; CRATE, SHIPPING AND STORAGE, AMMUNITION; BOX (1), INTERMEDIATE PACKING; BOX (1), SETUP; BOX (1), SHIPPING; BOX (1), FOLDING; and SHIPPING AND STORAGE CONTAINER (as modified). View more Ammunition Packing Box
January 2023
5
Marketplace 8140-00-825-1402
Request a Quotation from participating marketplace vendors
Related Documents 8140-00-825-1402 1+ Documents (More...)
RQST NE Updated Every Day 8140-00-825-1402 RQST Updated Every Day 8140-00-825-1402 RQST NE Related Documents
8140-00-825-1402 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-81/fsc-8140/us 8140-00-825-1402
Restrictions 8140-00-825-1402
8140-00-825-1402 is a Ammunition Packing Box This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 8140-00-825-1402
- US Army (A901)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 May 2005
Approved Sources 8140-00-825-1402
- Part Number
- Manufacturer
- Status
- B6006941
- Manufacturer
- 19203 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 8140-00-825-1402
- Characteristic
- Specifications
- FIIG
- Specifications
- A06600
- Assembly Form [AFPM]
- Flat
- Assembly Method [AFPN]
- Glued
- Box Manufacturer Certificate [AFQG]
- Not Required
- Closure Fastening Type [AFPQ]
- Any Acceptable
- Closure Method [AFPP]
- Sliding Sleeve
- Container Load Hazard Designation [AFPZ]
- Not Rated
- Cubic Capacity [AFPY]
- 18.4 Cubic Inches
- Humidity Control Design Feature [AFPX]
- No
- Material [MATT]
- Paperboard, Ppp-B-566, Variety 1, Group 1, Bleached Manila Lined Chip
- Inside Depth [AFEF]
- 5.062 Inches Nominal
- Inside Length [ADJU]
- 3.438 Inches Nominal
- Inside Width [ADJT]
- 1.062 Inches Nominal
- Special Features [FEAT]
- Used For 30 Caliber Cartridges Inm8 Cans In M9 Box And M20 Cans In M22 Box
- Usage Design [ACVE]
- Domestic
- Stacking Feature [AFQA]
- No

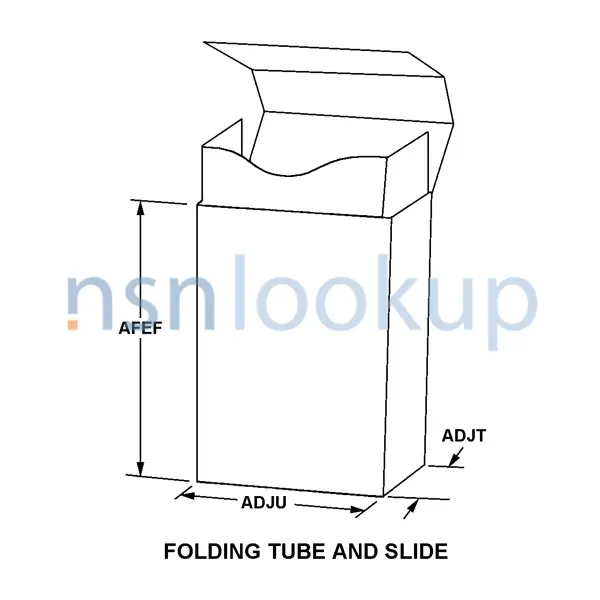

- Style Designator [STYL]
- Folding Tube And Slide
Management Data 8140-00-825-1402
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jun 1983
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- D
- Single Manager Ammunition
- Appropriation and Budget Activity:
- K
- Ammunition
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- Y7
- Conventional Ammunition
Packaging Material for Conventional Ammunition Maintenance and Renovation Project
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 8140-00-825-1402
Freight Information 8140-00-825-1402
8140-00-825-1402 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 145980. A Sub NMFC of X. It has a NMFC Description of CONTAINERS AMMO FBRBD. 8140-00-825-1402 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 8140-00-825-1402 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 73270 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 691 for ocean manifesting and military sealift. 8140-00-825-1402 is not classified as a special type of cargo when transported by water. 8140-00-825-1402 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 8140-00-825-1402
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Freeze – Below 32 F (Below 0 C)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.4" H x 1.0" W x 5.1" L
- --
- --
- --
- Special Requirements
- 3.4" H x 1.0" W x 5.1" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
