6920-00-559-0598
Boresighting Target
6920005590598 005590598 5590598
A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included. View more Boresighting Target
May 2023
23
Marketplace 6920-00-559-0598
Request a Quotation from participating marketplace vendors
Related Documents 6920-00-559-0598 2+ Documents (More...)
RQST NE Updated Every Day 6920-00-559-0598 RQST Updated Every Day 6920-00-559-0598 RQST NE Related Documents
6920-00-559-0598 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-69/fsc-6920/us 6920-00-559-0598
Boresighting Target 6920005590598 005590598 $1 a day Upgrade your Account Upgrade 6920-00-559-0598Boresighting
Target6920005590598 005590598 5590598 www.nsnlookup.com /fsg-69/fsc-6920/us 6920-00-559-0598 Boresighting
Restrictions 6920-00-559-0598
6920-00-559-0598 is a Boresighting Target that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6920-00-559-0598
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6920-00-559-0598
- US Army (A920)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- BDBF
- US Marine Corps (MC47)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GA
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 6920-00-559-0598
- Part Number
- Manufacturer
- Status
- 5590598
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
- 6920005590598
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

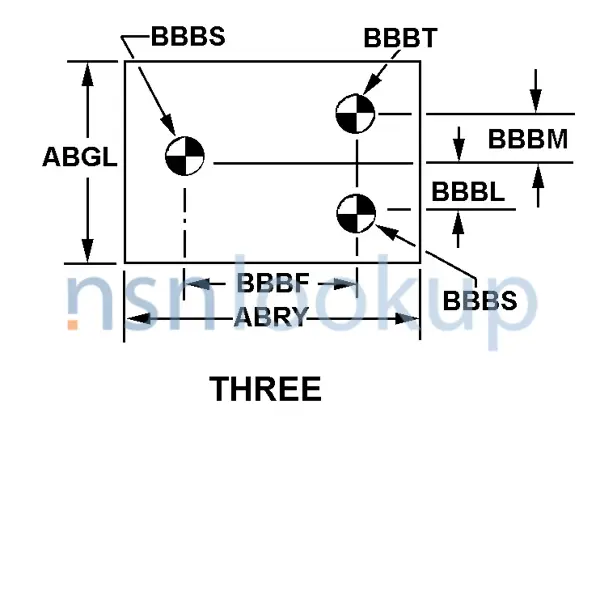

Datasheet 6920-00-559-0598
- Characteristic
- Specifications
- FIIG
- Specifications
- T262-E
- Style Designator [STYL]
- Three
- Width [ABGL]
- 34.000 Inches Nominal
- Length [ABRY]
- 34.000 Inches Nominal
- Horizontal Distance Between First And Second Quartered Circle Centers [BBBF]
- 20.811 Inches Nominal
- Vertical Distance Between First And Second Quartered Circle Centers [BBBL]
- 12.985 Inches Nominal
- Vertical Distance Between Second And Third Quartered Circle Centers [BBBM]
- 10.524 Inches Nominal
- Largest Quartered Circle Radius [BBBS]
- 4.000 Inches Nominal
- Smallest Quartered Circle Radius [BBBT]
- 3.000 Inches Nominal
DLA Procurement Analysis 6920-00-559-0598
Management Data 6920-00-559-0598
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 6920-00-559-0598
Freight Information 6920-00-559-0598
6920-00-559-0598 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 181920. A Sub NMFC of Z. It has a NMFC Description of TARGETS NOI INCLUDING MILITARY. 6920-00-559-0598 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 89360 which rates the freight between FCL and LCL. 6920-00-559-0598 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 718 for ocean manifesting and military sealift. 6920-00-559-0598 is not classified as a special type of cargo when transported by water. 6920-00-559-0598 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6920-00-559-0598
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- See Method of Preservation
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 6920-00-559-0598 1 Records
Contracting Technical Data File (CTDF) 6920-00-559-0598 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
