6730-00-251-8663
Photographic Projection Viewer-Printer
6730002518663 002518663 400M
An item designed for viewing microfilm which magnifies and presents on an integrally mounted screen a right reading image. It is equipped with a printing and developing mechanism which delivers a permanent enlarged copy of the microfilm upon activation of the reproducing mechanism. View more Photographic Projection Viewer-Printer
May 2023
4
Marketplace 6730-00-251-8663
Request a Quotation from participating marketplace vendors
Updated Every Day
Updated Every Day
Updated Every Day Updated Every Day Updated Every Day Related Documents 6730-00-251-8663 5+ Documents (More...)
Day 6730-00-251-8663 RQST Updated Every Day 6730-00-251-8663 RQST NE Related Documents 6730-00-251-8663
Projection Viewer-Printer,400M 400M RQST NE Updated Every Day 400M RQST NE Updated Every Day 6730-00-
400M Durometer Rubber Test Block Kit for type M STK NE $333.84 Distributor Buy Now Updated Every Day
Photographic Projection Viewer-Printer,400M 400M RQST NE Updated Every Day 400M RQST NE Updated
Photographic Projection Viewer-Printer,400M RQST NE Updated Every Day 400M RQST NE Updated https
to enable JavaScript in your web browser . 8310-12-355-4103Thread8310123554103 123554103SERAFIL 40-400M-FARBE0318
7510661116019661116019 JavaScript in your web browser . 8310-12-355-4103Thread8310123554103 123554103 SERAFIL 40- 400M-FARBE0318
7510661116019 661116019 JavaScript in your web https//www.nsnlookup.com /fsg-67/fsc-6730/us 6730-00-251-8663
2ST-8-LO-LO-400M-8A A length of nonmetallic hose with fittings on one or both ends.
47/fsc-4720/de 4720-12-370-2045 Nonmetallic Hose Assembly 4720123702045 2ST-8-LO-LO-400M2ST-8-LO-LO-400M
Restrictions 6730-00-251-8663
6730-00-251-8663 is a Photographic Projection Viewer-Printer This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6730-00-251-8663
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6730-00-251-8663
- US Army (A502)
- Effective Date:
- 1 Apr 1991
- NASA (G510)
- Effective Date:
- 1 Apr 1991
Approved Sources 6730-00-251-8663
- Part Number
- Manufacturer
- Status
- 400M
- Manufacturer
- 7U948 - 3M Company (Active)
- Primary Buy
- Primary Buy
- 400M
- 76381 - 3M Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 400M
- 94862 - Minnesota Mining And Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 400M
- 39711 - Imation Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6730-00-251-8663
- Characteristic
- Specifications
- FIIG
- Specifications
- T150-J
- Accommodated Film Width [ALNJ]
- 16.0 Inches Minimum And 35.0 Inches Maximum
- Circuit Voltage Rating In Volts [AFSQ]
- 20.0 Nominal
- Current Type [ACDC]
- Ac
- Design Current Rating In Amps [AFSS]
- 10.000 Nominal
- Film Accommodation Type [ATAB]
- Microfilm And Roll
- Frequency Rating [ACZB]
- 60.0 Hertz Nominal
- Installation Design [AMQY]
- Table

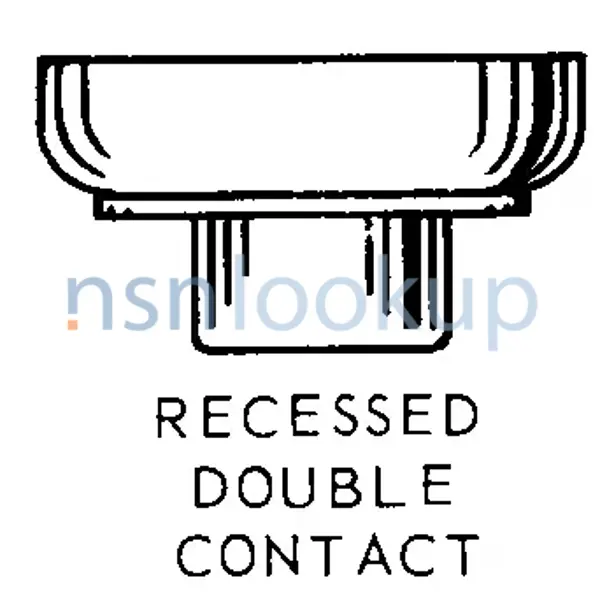

- Lamp Base Style [AEWV]
- Recessed Double Contact

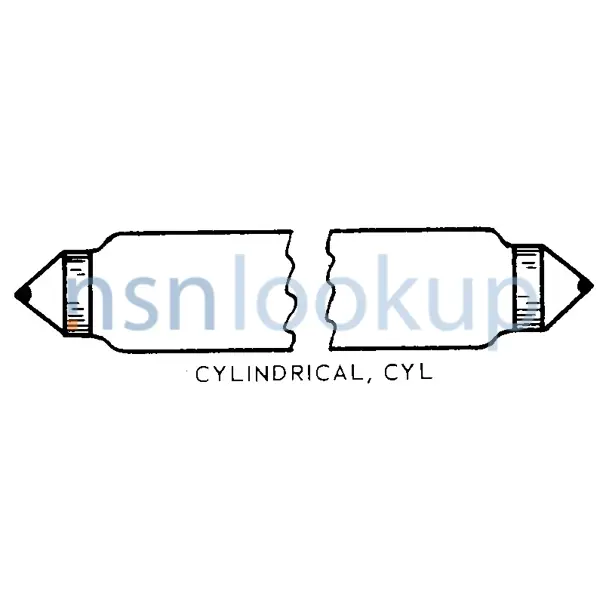

- Lamp Bulb Shape Style [AEWT]
- Cylindrical, Cyl
- Lamp Bulb Size Designator [AEWU]
- Cy -4
- Lamp Quantity [AEWR]
- 1
- Lamp Type [AEWY]
- Quartz Iodide
- Lamp Wattage Rating In Watts [AEWS]
- 200.0
- Lamp [AEWQ]
- Included
- Print Size [BMRY]
- 8 In. By 10 3/4 In.
- Printing Process For Which Designed [BLGL]
- Photographic W/Single Solution Developer
- Overall Height [ABKW]
- 26.500 Inches Nominal
- Overall Length [ABHP]
- 21.500 Inches Nominal
- Overall Width [ABMK]
- 17.000 Inches Nominal
- Phase [FAAZ]
- Single
- Voltage In Volts [ELEC]
- 115.0
Management Data 6730-00-251-8663
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Net Price 2079.00
- NET PRICE 2079.00
- R
Army
- Materiel Category and Inventory Manager:
- G
- Communications and Electronics Equipment, Electronics Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- TX
- Other Electronics Equipment
IEWS/OBS
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Similar Supply Items to 6730-00-251-8663
Freight Information 6730-00-251-8663
6730-00-251-8663 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 039740. A Sub NMFC of X. It has a NMFC Description of PHOTOGRAPHERS MATERIALS NOI. 6730-00-251-8663 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 6730-00-251-8663 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 19930 which rates the freight between FCL and LCL. 6730-00-251-8663 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 756 for ocean manifesting and military sealift. 6730-00-251-8663 is not classified as a special type of cargo when transported by water. 6730-00-251-8663 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6730-00-251-8663
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 21.5" H x 17.0" W x 26.5" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 27.5" H x 23.0" W x 35.5" L
- --
- --
- --
- --
- 27.5" H x 23.0" W x 35.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- Cushion, Anchor, Block or Brace as Required
- --
- ASTM-D6251, Type III, Class 2, Overseas Cleated Plywood Box or ASTM-D6880, Class 2, Heavy Duty Nailed Wood Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
