6685-01-527-1479
Capillary Tube And Bulb Indicating Thermometer
6685015271479 015271479 MIL-T-19646A 41GPY00FF60W
A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS. View more Capillary Tube And Bulb Indicating Thermometer
November 2023
1
Marketplace 6685-01-527-1479
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 6685-01-527-1479 5+ Documents (More...)
(Identification) 1/2 NSN 6685-01-527-1479 (Identification) 2/2 - - 1.
FedMall Updated Every 15 Minutes 6685-01-527-1479 BUY NE FedMall Updated Every Day 6685-01-527-1479
6685015393090015393090,MIL-T-19646A Upgrade 6685-01-539-3090Capillary Tube And Bulb Indicating https
https//www.nsnlookup.com /fsg-66/fsc-6685/us 6685-01-512-5174 6685015125174 015125174,MIL-T-19646A MIL-T
6685015393090015393090,MIL-T-19646A Upgrade 6685-01-539-3090Capillary Tube And Bulb Indicating https
6685-01-539-3090Capillary Tube And Bulb Indicating Thermometer6685015393090 015393090 MIL-T-19646A MIL-T
6685015271479 015271479,MIL-T-19646A MIL-T-19646A THERMOMETER,INDICATING,CAPILLARY TUBE AND BULB
MIL-T-19646A THERMOMETER,INDICATING,CAPILLARY TUBE AND BULB 6 EA NS Request Quotation FedMall Updated
MIL-T-19646A THERMOMETER,INDICATING,CAPILLARY TUBE AND BULB 6 EA NS Request Quotation FedMall Updated
6685015271479 015271479,MIL-T-19646A MIL-T-19646A THERMOMETER,INDICATING,CAPILLARY TUBE AND BULB
Restrictions 6685-01-527-1479
6685-01-527-1479 is a Capillary Tube And Bulb Indicating Thermometer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6685-01-527-1479
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6685-01-527-1479
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 6685-01-527-1479
- Part Number
- Manufacturer
- Status
- 41GPY00FF60W
- Manufacturer
- 049X3 - Ashcroft Inc (Active)
- Primary Buy
- Primary Buy
- MIL-T-19646A
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 6685-01-527-1479
- Characteristic
- Specifications
- FIIG
- Specifications
- A27600
- End Item Identification [AGAV]
- Panel Assembly
- Active Portion Diameter [BKCZ]
- 0.375 Inches Nominal
- Active Portion Length [BKCY]
- 3.000 Inches Nominal
- Actuating Medium [BKCM]
- Oil And Water
- Bulb Quantity [BKCT]
- 1
- Bulb Style [CRSK]
- Plain Bulb
- Dial Diameter [ASSP]
- 4.500 Inches Nominal
- Flexible Tube Length [BLQG]
- 320.000 Inches Nominal
- Material [MATT]
- Aluminum Alloy Dial Face
- Material [MATT]
- Aluminum Alloy Meter Case
- Material [MATT]
- Steel Corrosion Resisting Capillary Tube
- Material [MATT]
- Steel Corrosion Resisting Bulb
- Pointer/Pen Type And Quantity [CSYJ]
- 1 Indicating Single And 1 Reference Single
- Scale Measurement Range [CSYG]
- +20.000/+240.000 Deg Fahrenheit
- Scale Type [ATEQ]
- Dial
- Part Name Assigned By Controlling Agency [CXCY]
- Drawing)Local Engine Control (Lec) Panel For Lpd(10570852)
- Special Features [FEAT]
- Adjustable Red Reference Hand;Adjustable Black Pointer;Universal Connection With Flush Mounting Kit;3/4In-28 Union Connection

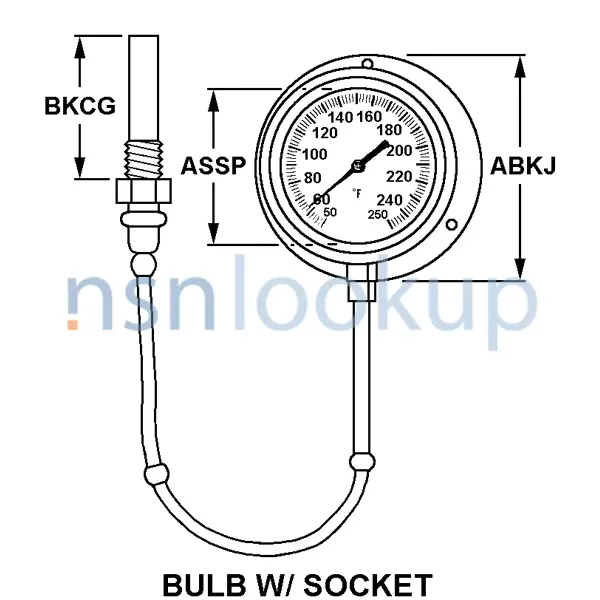

- Style Designator [STYL]
- Bulb W/Socket
Weapon Systems (WSDC) 6685-01-527-1479
DLA Procurement Analysis 6685-01-527-1479
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6685-01-527-1479
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6685-01-527-1479
Freight Information 6685-01-527-1479
6685-01-527-1479 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058360. A Sub NMFC of Z. It has a NMFC Description of THERMOMETERS,O/THAN CLINICAL. 6685-01-527-1479 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33220 which rates the freight between FCL and LCL. 6685-01-527-1479 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6685-01-527-1479 is not classified as a special type of cargo when transported by water. 6685-01-527-1479 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6685-01-527-1479
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- ASTM - D5118, Fiberboard Box
- Delicate instrument
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6685-01-527-1479 2 Records
Contracting Technical Data File (CTDF) 6685-01-527-1479 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
