6685-01-475-6641
Capillary Tube And Bulb Indicating Thermometer
6685014756641 014756641 7112-05-3 5/3/7112 7112-05 10-7112 MDL 7112-05
A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS. View more Capillary Tube And Bulb Indicating Thermometer
November 2023
4
Marketplace 6685-01-475-6641
Request a Quotation from participating marketplace vendors
Related Documents 6685-01-475-6641 4+ Documents (More...)
BUY NE FedMall Updated Every Day 6685-01-475-6641 RQST NE Updated Every Day 6685-01-475-6641 RQST
Updated Every Day 6685-01-475-6641 RQST NE Related Documents 6685-01-475-6641 4+ Documents ( More...
-475- https//www.nsnlookup.com /fsg-66/fsc-6685/us 6685-01-475-6641 6685014756641 014756641,7112-05-3,5
/3/7112 96752 3 AMSC Q IMC Z IMCACTY HD Approved Sources 6685-01-475-6641 NumberManufacturerStatus7112
Part NumberManufacturerStatus10-24HP-01-1 96752 https//www.nsnlookup.com /fsg-66/fsc-6685/us 6685-01-475-6641
6685014756641 014756641,7112-05-3,5/3/7112 Flat Washer 5310002909928 002909928,96752 9688Compression
6685014756641 014756641,7112-05-3,5/3/7112 Washer 5310002909928 002909928,96752 9688Compression
Restrictions 6685-01-475-6641
6685-01-475-6641 is a Capillary Tube And Bulb Indicating Thermometer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6685-01-475-6641
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6685-01-475-6641
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
Approved Sources 6685-01-475-6641
- Part Number
- Manufacturer
- Status
- 7112-05-3
- Manufacturer
- 96752 - Cooper Instrument Corp (Active)
- Primary Buy
- Primary Buy
- 5/3/7112
- 96752 - Cooper Instrument Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7112-05
- 96752 - Cooper Instrument Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10-7112 MDL 7112-05
- 96752 - Cooper Instrument Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6685-01-475-6641
- Characteristic
- Specifications
- FIIG
- Specifications
- A27600
- Scale Type [ATEQ]
- Dial
- Material [MATT]
- Steel Corrosion Resisting Overall
- Style Designator [STYL]
- Plain Rigid
- Bulb Tip Length [BKCG]
- 3.000 Inches Nominal
- Case Diameter [ABKJ]
- 3.000 Inches Nominal
- Dial Diameter [ASSP]
- 2.500 Inches Nominal
- Pointer/Pen Type And Quantity [CSYJ]
- 1 Indicating Single
- Body Length [ADAQ]
- 0.250 Inches Nominal
- Bulb Type [BKCW]
- Plain Rigid
- Bulb Quantity [BKCT]
- 1

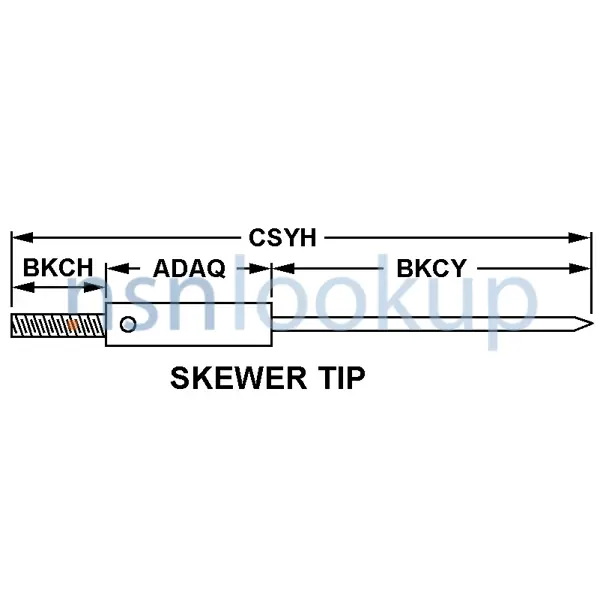

- Bulb Style [CRSK]
- Skewer Tip
- Active Portion Length [BKCY]
- 3.000 Inches Nominal
- Bulb Overall Length [CSYH]
- 3.500 Inches Nominal
- Extension Neck Length [BKCH]
- 0.250 Inches Nominal
- Actuating Medium [BKCM]
- Liquid
- Mounting Facility Type And Quantity [AXHR]
- 1 Flange
- Special Features [FEAT]
- 48 Inch Capillary; Dual Scale Dial; Scale Range Plus 40 Degrees F To Plus 240 Degrees F
Weapon Systems (WSDC) 6685-01-475-6641
DLA Procurement Analysis 6685-01-475-6641
- Last Stock Position:
- 65 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6685-01-475-6641
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6685-01-475-6641
Freight Information 6685-01-475-6641
6685-01-475-6641 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058360. A Sub NMFC of Z. It has a NMFC Description of THERMOMETERS,O/THAN CLINICAL. 6685-01-475-6641 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33220 which rates the freight between FCL and LCL. 6685-01-475-6641 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6685-01-475-6641 is not classified as a special type of cargo when transported by water. 6685-01-475-6641 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6685-01-475-6641
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Delicate instrument
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6685-01-475-6641 4 Records
Contracting Technical Data File (CTDF) 6685-01-475-6641 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
