6685-01-132-4637
Electrical Resistance Temperature Indicator
6685011324637 011324637 06349-14 1307760 06349-5
An item that designates temperature by means of measuring the electrical resistance of a sensitive bulb whose resistance varies with a change of temperature. Does not include resistance bulb. View more Electrical Resistance Temperature Indicator
November 2023
15
Product Information 6685-01-132-4637

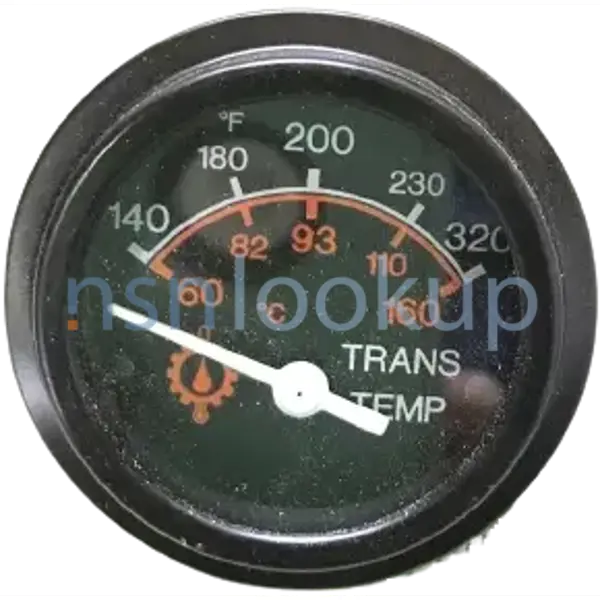

Transmission Fluid Temperature Gauge
Marketplace 6685-01-132-4637
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 6685-01-132-4637 5+ Documents (More...)
United States (US) 4. 6685-01-132-4637 Marketplace Restrictions Approved Sources Datasheet Management
Transmission Fluid Temperature Gauge Marketplace 6685-01-132-4637 Need Help?
2513599561307760169135169135-1 A pliable rubber or composition ring-shaped https//www.nsnlookup.com /fsg-66/fsc-6685/us 6685-01-132-4637
Temperature Indicator Upgrade 6685-01-132-4637Electrical Resistance Temperature Indicator6685011324637 011324637
Restrictions 6685-01-132-4637
6685-01-132-4637 is a Electrical Resistance Temperature Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6685-01-132-4637
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6685-01-132-4637
- US Army (A921)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A182
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2009
Approved Sources 6685-01-132-4637
- Part Number
- Manufacturer
- Status
- 06349-14
- Manufacturer
- 16476 - Maxima Technologies & Systems Llc (Active)
- Primary Buy
- Primary Buy
- 1307760
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 06349-5
- 16476 - Maxima Technologies & Systems Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6685011324637
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1307760
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6685011324637
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 6685-01-132-4637
- Characteristic
- Specifications
- FIIG
- Specifications
- A533Y0
- Current Type [ACDC]
- Dc
- Dc Voltage Rating [ACYR]
- 24.0 Volts Nominal
- Contact Quantity [AFRA]
- 2
- Length [ABRY]
- 2.340 Inches Nominal
- Diameter [ABMZ]
- 2.300 Inches Nominal
- End Item Identification [AGAV]
- Nsn 2320-01-097-0260 Hemtt (Heavy Expanded Mobility Tactical Truck)
Weapon Systems (WSDC) 6685-01-132-4637
DLA Procurement Analysis 6685-01-132-4637
- Last Stock Position:
- 146 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6685-01-132-4637
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- NR
- Tactical Vehicles
Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1,M985
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6685-01-132-4637
Freight Information 6685-01-132-4637
6685-01-132-4637 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121570. A Sub NMFC of X. It has a NMFC Description of GAGES AIR LIQUID LEVEL PRESSURE. 6685-01-132-4637 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61770 which rates the freight between FCL and LCL. 6685-01-132-4637 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 6685-01-132-4637 is not classified as a special type of cargo when transported by water. 6685-01-132-4637 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6685-01-132-4637
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Delicate instrument
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6685-01-132-4637 3 Records
Contracting Technical Data File (CTDF) 6685-01-132-4637 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
