6685-00-810-3921

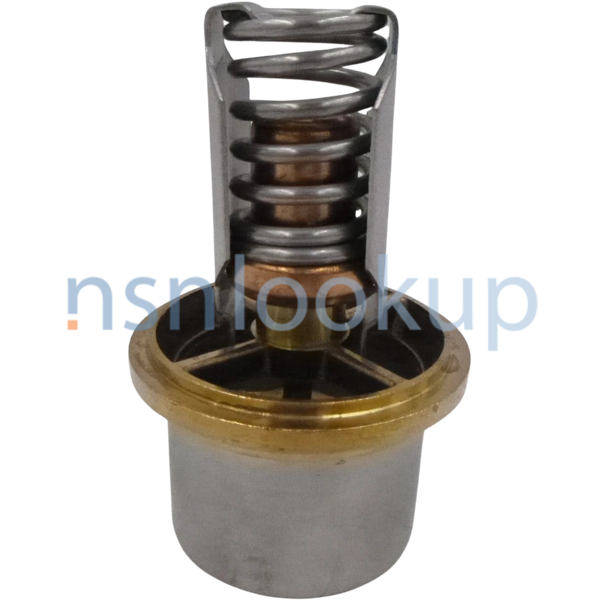

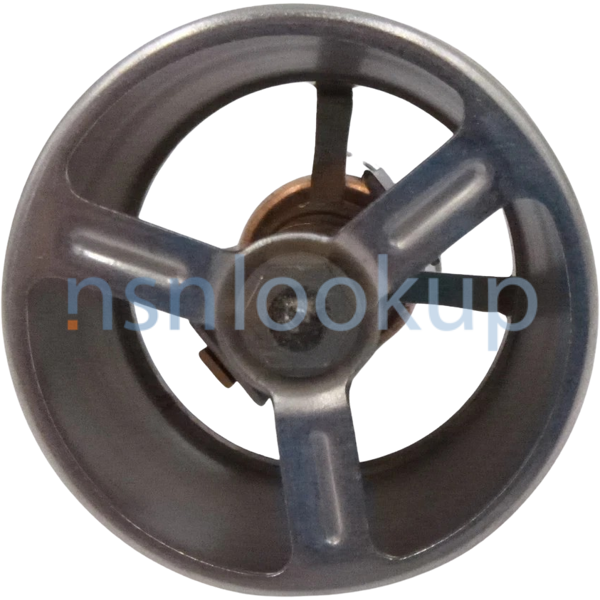

Flow Control Thermostat
6685008103921 008103921 10921755-1 VD10172D 6620008103921
An automatic regulating device which controls the flow of fluids or gases by actuating a valve or shutter for heating or cooling purposes. May be adjustable, or set to operate at a definite pressure. Excludes CONTROL, HUMIDITY; CONTROL, TEMPERATURE INDICATING; and SWITCH, THERMOSTATIC. View more Flow Control Thermostat
July 2023
26
Marketplace 6685-00-810-3921
Request a Quotation from participating marketplace vendors
Related Documents 6685-00-810-3921 1+ Documents (More...)
Request Quotation Updated Every Day 6685-00-810-3921 RQST NE Updated Every Day 6685-00-810-3921 RQST
Updated Every Day 6685-00-810-3921 RQST NE Related Documents 6685-00-810-3921 1+ Documents ( More...
Restrictions 6685-00-810-3921
6685-00-810-3921 is a Flow Control Thermostat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 6685-00-810-3921
- US Army (A920)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A183
- Supplementary Receivers:
- AZBF
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 6685-00-810-3921
- Part Number
- Manufacturer
- Status
- 10921755-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- VD10172D
- 53705 - Scovill Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 6620008103921
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6685-00-810-3921
- Characteristic
- Specifications
- FIIG
- Specifications
- T121-C
- Thermostat Type [AWPA]
- Solid Expansion
- Usage Design [ALCD]
- Designed To Control Engine Coolant Temp
- Mounting Method [ADJH]
- Flange
- Opening Temp Rating [AWTM]
- 165.0 Deg Fahrenheit Nominal
- Operating Temp Rating [AWTN]
- 180.0 Deg Fahrenheit Nominal
- Spring Operated Pressure Relief [AWTP]
- Not Provided
- Valve Travel Distance [AMSD]
- 0.400 Inches Nominal
- Flow Control Device [ADQU]
- By-Pass
- Largest Outside Diameter [AGWM]
- 2.878 Inches Nominal
- Overall Height [ABKW]
- 4.746 Inches Nominal
Weapon Systems (WSDC) 6685-00-810-3921
DLA Procurement Analysis 6685-00-810-3921
- Last Stock Position:
- 5 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6685-00-810-3921
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6685-00-810-3921
Freight Information 6685-00-810-3921
6685-00-810-3921 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 188340. A Sub NMFC of X. It has a NMFC Description of VALVES THEMOSTATIC NOI/THEMOSTATS. 6685-00-810-3921 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33230 which rates the freight between FCL and LCL. 6685-00-810-3921 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6685-00-810-3921 is not classified as a special type of cargo when transported by water. 6685-00-810-3921 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6685-00-810-3921
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6685-00-810-3921 2 Records
Contracting Technical Data File (CTDF) 6685-00-810-3921 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
