6685-00-527-6156

Dial Indicating Pressure Gage

6685005276156 005276156 MIL-DTL-6019 AN6026-1A AN6026-1B GA20U GA13U1 AW1 1-2 9D6 ZA1-258 2511A AW17-821W XA1-258 AW1 1-2 9D2 GA130 MILG6019 6685PL1574192

An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure.It may include a temperature equivalent scale.For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE. View more Dial Indicating Pressure Gage

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
December 2023

NATO Update Count
47

NATO Data Quality

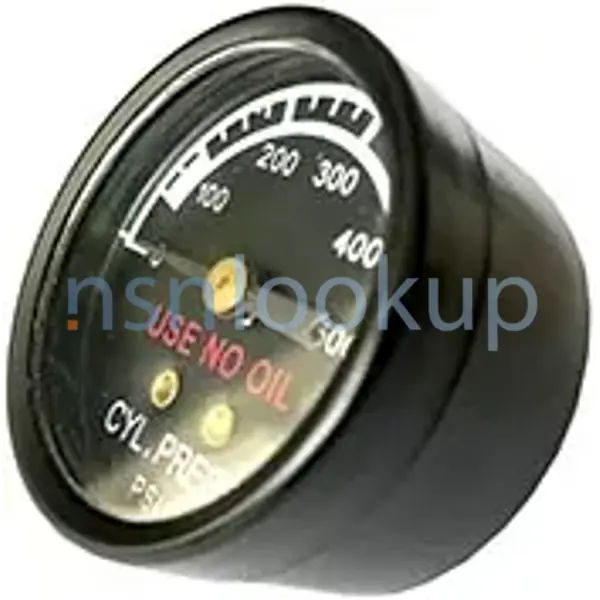

6685-00-527-6156 GAGE,PRESSURE,DIAL INDICATING 6685005276156 005276156 1/1 — 6685-00-527-6156 Photo 1/1

Marketplace 6685-00-527-6156

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

25100A37B1B1 GAGE,PRESSURE,DIAL INDICATING 3 EA NS

2511A GAGE,PRESSURE,DIAL INDICATING 2 EA NS

Subscribe to View Vendor Details...

AN-6026-1A GAGE,PRESSURE,DIAL INDICATING 9 EA NS

AW-1-78-21-W GAGE,PRESSURE,DIAL INDICATING 1 EA NS

Subscribe to View Vendor Details...

MIL-G-6019 GAGE,PRESSURE,DIAL INDICATING 11 EA NS

Subscribe to View Vendor Details...

2511A GAGE,PRESSURE,DIAL INDICATING 6 EA NS

Updated Every Day

6685-00-527-6156 RQST NE

Updated Every Day

6685-00-527-6156 RQST

Updated Every Day

6685-00-527-6156 RQST NE

Restrictions 6685-00-527-6156

6685-00-527-6156 is a Dial Indicating Pressure Gage that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6685-00-527-6156

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6685-00-527-6156

US Air Force (FXGG)
Effective Date:: 1 Jul 2006
Former MOE Rule:: FXCX; AMC 1 AMSC G IMC Z IMCACTY SX

US Navy (N9BG)
Effective Date:: 1 Jul 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY KE

MOE Rule:: TPA1
Effective Date:: 8 Feb 1996

Poland (WP01)
Effective Date:: 1 Oct 2006

Brazil (YA01)
Effective Date:: 1 Sep 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Mar 1999

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Jul 1995

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Oct 2009

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 6685-00-527-6156

Part Number
Manufacturer
Status
AN6026-1B: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-6019: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
GA20U: 73475 - Schneider Electric Systems Usa Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
GA13U1: 31117 - Intermatic Incorporated (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AW1 1-2 9D6: 61349 - Ametek, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
ZA1-258: 38508 - Desco Corp Marsh Bellofram Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2511A: 38508 - Desco Corp Marsh Bellofram Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AW17-821W: 61349 - Ametek, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
XA1-258: 38508 - Desco Corp Marsh Bellofram Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AN6026-1B: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AW1 1-2 9D2: 61349 - Ametek, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
GA130: 95542 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
MILG6019: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
6685PL1574192: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
AN6026-1A: 88044 - Aeronautical Standards Group (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 6685-00-527-6156

Characteristic
Specifications
FIIG: T179-B
Actuating Element Material [BGKY]: Any Acceptable
Actuation Type [APCM]: Bourdon Tube
Adjustability [APCS]: Adjustable
Case Material [ADTV]: Any Acceptable
Case Surface Treatment [ADTY]: Dull Black
Connection Location [BGRY]: Back
Connection Quantity [ASMM]: 1
Connection Size [BHMG]: 0.125 In. Npt Dia
Connector Type Vent [BHMK]: Not Provided
Connection Type [AWLS]: External
Dial Size [ARCH]: 1-1/2 In. Dia
Fsc Application Data [ZZZV]: Gage,Pressure Dial Indicating,Except Engine
Graduation Unit [ANBJ]: 50.0 Pounds Per Square Inch
Mounting Method [AXGY]: Surface
Pointer Color [ASSS]: Yellow
Pointer Type [ASST]: Indicating
Protective Crystal Material [BHMF]: Plastic
Scale Accuracy [BGKS]: 2 Pct Entire Range
Scale Marking [ASTW]: Cylinder Pressure Per Square Inch
Scale Inscription/Background Color [BGKZ]: Yellow Luminous Figures On Black Background
Scale Range [APSK]: +0.0/+500.0 Pounds Pressure Per Square Inch
Scale Name [AQFZ]: Pressure
Scale Smallest Increment [AWAG]: 25.0 Pounds Per Square Inch
Scale Type [ATEQ]: Single
Overall Depth [ABFY]: 0.844 Inches Nominal
Overall Diameter [ADAV]: 1.650 Inches Nominal
Part Name Assigned By Controlling Agency [CXCY]: Gage,Pressure, Except Engine, Low-Pressure Oxygen Type 1
