6685-00-466-8557

Self-Indicating Thermometer

6685004668557 004668557 AA5H-9490 9-200B-36E-035P50T0400F 368R 368L 9-206-36R035 12EJ31012 41GX-Z00R-X25Y BX914031/2 50/400F

An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN. View more Self-Indicating Thermometer

Managed by United States

NSN Created on 3 Jun 1974

Data Last Changed
November 2023

NATO Update Count
26

NATO Data Quality

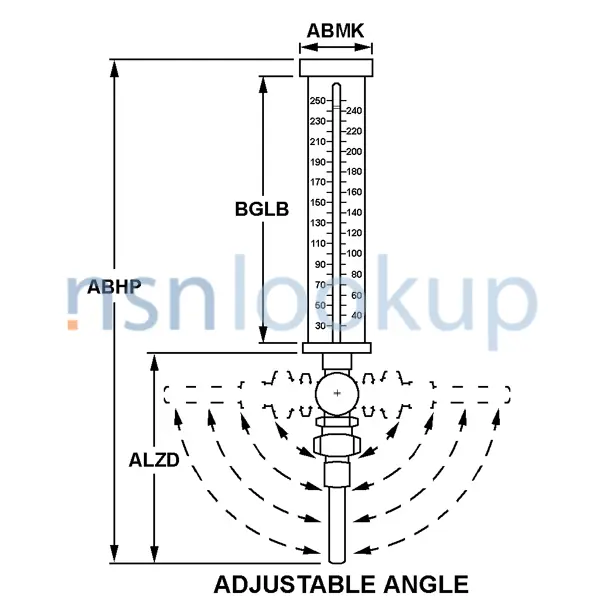

STYL Style A1 for 6685-00-466-8557 1/1 — NSN 6685-00-466-8557 (Identification) 1/1

Marketplace 6685-00-466-8557

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

6685-00-466-8557 THERMOMETER,SELF-INDICATING 2 EA NS

Subscribe to View Vendor Details...

AA5H-9490 THERMOMETER,SELF-INDICATING 1 EA NS

Subscribe to View Vendor Details...

AA5H-9490 THERMOMETER,SELF-INDICATING 21 EA NS

Subscribe to View Vendor Details...

6685-00-466-8557 THERMOMETER,SELF-INDICATING 3 EA NS

Updated Every Day

6685-00-466-8557 RQST NE

Updated Every Day

6685-00-466-8557 RQST

Updated Every Day

6685-00-466-8557 RQST NE

Restrictions 6685-00-466-8557

6685-00-466-8557 is a Self-Indicating Thermometer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6685-00-466-8557

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6685-00-466-8557

US Coast Guard (C911)
Effective Date:: 1 Sep 2006
Former MOE Rule:: C006; AMC 1 AMSC R

US Air Force (FXGG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: FXCX; AMC 1 AMSC R IMC Z IMCACTY SX

NASA (G280)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC41)
Effective Date:: 1 Sep 2006
Former MOE Rule:: MC04; AMC 1 AMSC R IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTHD; AMC 1 AMSC R IMC Z IMCACTY HD

Brazil (YA01)
Effective Date:: 1 Jan 2002

Spain (YB01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 6685-00-466-8557

Part Number
Manufacturer
Status
AA5H-9490: 049X3 - Ashcroft Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
41GX-Z00R-X25Y: 04PX3 - Surfware Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
9-200B-36E-035P50T0400F: 24188 - Industrial Controls Distributors Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
41GX-Z00R-X25Y: 64467 - Weksler Glass Thermometer Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
BX914031/2 50/400F: 78763 - H O Trerice Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AA5H-9490: 64467 - Weksler Glass Thermometer Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
368R: 23471 - Palmer Instruments Inc. (Active); Transferred; RNCC E RNVC 8 DAC 4
368L: 23471 - Palmer Instruments Inc. (Active); Transferred; RNCC E RNVC 8 DAC 4
9-206-36R035: 24188 - Industrial Controls Distributors Llc (Active); Transferred; RNCC E RNVC 8 DAC 4
12EJ31012: 59310 - Abb Kent-Taylor Inc (Obsolete); Transferred; RNCC E RNVC 8 DAC 4

Datasheet 6685-00-466-8557

Characteristic
Specifications
FIIG: A27600
Actuating Medium [BKCM]: Liquid
Design Type [APGF]: Fluctuating
Material [MATT]: Aluminum Meter Case
Scale Length [BGLB]: 9.000 Inches Nominal
Scale Measurement Range [CSYG]: +50.000/+400.000 Deg Fahrenheit
Scale Smallest Increment [AWAG]: 5.0 Deg Fahrenheit
Scale Type [ATEQ]: Etched Tube
Securing Device Type [ADQB]: Clip
Overall Length [ABHP]: 16.719 Inches Nominal
Overall Width [ABMK]: 2.406 Inches Nominal
Stem Length [ALZD]: 3.500 Inches Nominal
Style Designator [STYL]: Adjustable Angle

Weapon Systems (WSDC) 6685-00-466-8557

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6685-00-466-8557

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6685-00-466-8557

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 6685-00-242-2154
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 6685-00-242-2159

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

H: Item that is hazardous under typical use or handling

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 6685-00-466-8557

6685-12-153-9917 6685-14-521-8110 6685-15-209-6813 6685-14-251-9270 6685-14-321-4451 6685-15-106-6207 6685-14-268-7826 6685-12-313-5937 6685-12-700-4710 6685-99-749-3747 6685-99-477-6523 6685-99-776-1976 6685-12-372-5443 6685-13-111-6957 6685-12-304-9222 6685-17-122-0636 6685-15-067-3590 4410-12-161-3788

Freight Information 6685-00-466-8557

6685-00-466-8557 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 053025. A Sub NMFC of Z. It has a NMFC Description of COOLERS,ICEBOXES,REFRIGERATORS. 6685-00-466-8557 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30658 which rates the freight between FCL and LCL. 6685-00-466-8557 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 651 for ocean manifesting and military sealift. 6685-00-466-8557 is classified as a Corrosive Material, UN Class 8, when transported by water. 6685-00-466-8557 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6685-00-466-8557

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; Delicate instrument

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM - D5118, Fiberboard Box
