6680-01-530-8330
Liquid Sight Indicator
6680015308330 015308330 LSP101-08 1116K23
An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW. View more Liquid Sight Indicator
November 2023
1
Marketplace 6680-01-530-8330
Request a Quotation from participating marketplace vendors
Related Documents 6680-01-530-8330 3+ Documents (More...)
BUY NE FedMall Updated Every Day 1116K23 RQST NE Updated Every Day 6680-01-530-8330 RQST NE Updated
Every Day 6680-01-530-8330 RQST Updated Every Day 6680-01-530-8330 RQST NE Related Documents 6680-01
01-396-4373 Liquid Sight Indicator 6680013964373 https//www.nsnlookup.com /fsg-66/fsc-6680/us 6680-01-530-8330
Liquid Sight Indicator 6680015308330 6680-01-530-8330 RQST NE Related Documents 6680-01 https//
Liquid Sight Indicator 6680015308330 a day Upgrade your Account Upgrade 6680-01-530-8330Liquid
Sight Indicator6680015308330 015308330 LSP101 https//www.nsnlookup.com /fsg-66/fsc-6680/us 6680-01-530
Restrictions 6680-01-530-8330
6680-01-530-8330 is a Liquid Sight Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-01-530-8330
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-01-530-8330
- US Marine Corps (MC41)
- Effective Date:
- 1 Dec 2015
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
Approved Sources 6680-01-530-8330
- Part Number
- Manufacturer
- Status
- LSP101-08
- Manufacturer
- 24346 - Ldi Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- 1116K23
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 6680-01-530-8330
- Characteristic
- Specifications
- FIIG
- Specifications
- A43400
- End Connection Type [AWZY]
- Threaded External, Plain Single End
- Data Furnishing Method [CTCY]
- Clear Window
- End Item Identification [AGAV]
- Truck, Fire Fighting
- Furnished Data [CSQG]
- Liquid Level
- Maximum Temp Rating [ATQZ]
- 180.0 Deg Fahrenheit
- Maximum Working Pressure [BPHD]
- 25.0 Pounds Per Square Inch
- Material [MATT]
- Aluminum Alloy And Glass
- Sight Diameter [ASNX]
- 0.970 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Aluminum Liquid-Level Sights-Thru-Hole Mount
- Special Features [FEAT]
- Sight Have Aluminum Body, Glass Window And Buna-N Seal; Max Pressure Of 25 Psi Is At 69 Degrees F; Has Straight Uns Threads; Max Temperature Is 180J F
- Thread Series Designator [THSD]
- Uns Single End
- Width Across Flats [ASDB]
- 1.375 Inches Nominal

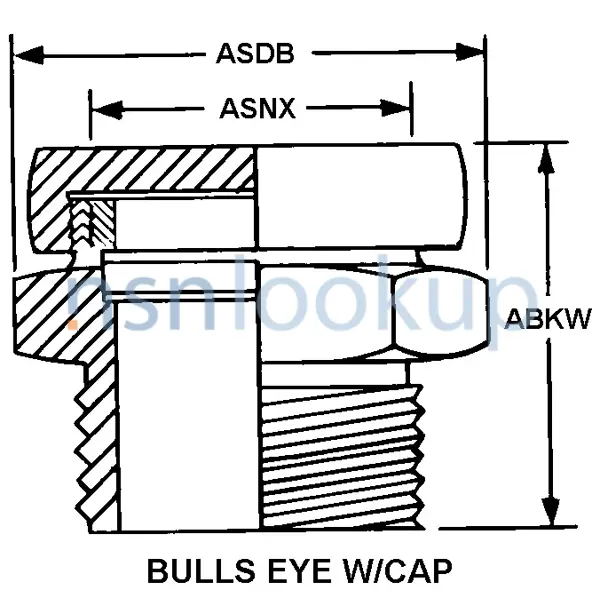

- Style Designator [STYL]
- Bulls Eye W/Cap
Weapon Systems (WSDC) 6680-01-530-8330
DLA Procurement Analysis 6680-01-530-8330
- Last Stock Position:
- 65 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6680-01-530-8330
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 6680-01-530-8330
Freight Information 6680-01-530-8330
6680-01-530-8330 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 136800. A Sub NMFC of Z. It has a NMFC Description of FLOW, NOI. 6680-01-530-8330 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 68850 which rates the freight between FCL and LCL. 6680-01-530-8330 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72B for ocean manifesting and military sealift. 6680-01-530-8330 is not classified as a special type of cargo when transported by water. 6680-01-530-8330 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-01-530-8330
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6680-01-530-8330 2 Records
Contracting Technical Data File (CTDF) 6680-01-530-8330 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
