6680-01-529-7332
Liquid Sight Indicator
6680015297332 015297332 K9957 M50-17-ABL-GS-5-200-NS YMD-8790 C-45459
An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW. View more Liquid Sight Indicator
November 2023
1
Marketplace 6680-01-529-7332
Request a Quotation from participating marketplace vendors
Related Documents 6680-01-529-7332 3+ Documents (More...)
BUY NE FedMall Updated Every Day 6680-01-529-7332 RQST NE Updated Every Day 6680-01-529-7332 RQST
) https//www.nsnlookup.com /fsg-66/fsc-6680/us 6680-01-529-7332 Liquid Sight Indicator 6680015297332
Liquid Sight Indicator 6680015297332 01-529-7332 Liquid Sight Indicator 6680015297332 https//www.nsnlookup.com
JavaScript in your web browser . 5962-01-179 linear (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 5 C-45459
www.nsnlookup.com /fsg-25/fsc-2530/us 2530-01-130-8729 Linear Actuating Cylinder Assembly 011308729 C-45459
containing other component parts designed to develop linear (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 5 C-45459
Restrictions 6680-01-529-7332
6680-01-529-7332 is a Liquid Sight Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-01-529-7332
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-01-529-7332
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 6680-01-529-7332
- Part Number
- Manufacturer
- Status
- K9957 M50-17-ABL-GS-5-200-NS
- Manufacturer
- 51806 - Kenco International Inc (Active)
- Primary Buy
- Primary Buy
- YMD-8790
- 70433 - Appleton Marine Inc (Active)
- Secondary Buy
- Secondary Buy
- C-45459
- 51806 - Kenco International Inc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 6680-01-529-7332
- Characteristic
- Specifications
- FIIG
- Specifications
- A43400

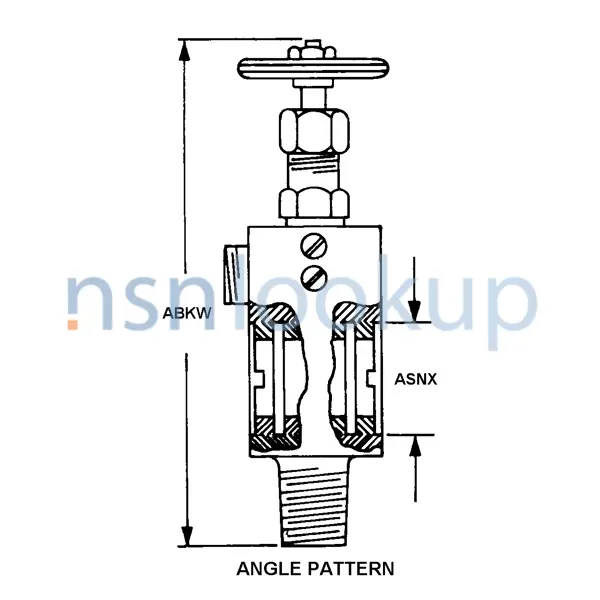

- Style Designator [STYL]
- Angle Pattern
- Overall Height [ABKW]
- 17.000 Inches Nominal
- Sight Diameter [ASNX]
- 13.813 Inches Nominal
- Furnished Data [CSQG]
- Liquid Level
- Maximum Working Pressure [BPHD]
- 5.0 Pounds Per Square Inch
- Maximum Temp Rating [ATQZ]
- 200.0 Deg Fahrenheit
- Special Features [FEAT]
- Top Connection 3/8" Npt Vent Plug; Bottom Plug 0.50" Fnpt Connection With Plug; Side Connecction 0.25" Fnpt Connection With Plug; Gauge Where Valvle Is 3.523" Open And 2.841" Closed Nominally; Visual Gauge Face Is 2.75" Wide; Certified For Marine Application; Armored Frame And Ploy Carbonate Shield Protection Operator; Gauge With Integral Valve On Bottom And 1/2" Mnpt X 3/8" Fnpt Connection Top; Process Connections Is 1/2" Mnpt; Sea Material Is Buna-N; Shield Option Is Clear Polycarbonate; Sight Tube Is 5/8" O.D. Glass; Is A Non-Steam Application; Center To Center Dimension Is 17"
- End Item Identification [AGAV]
- Hpu System, Deck Winch Amd-1595
- Part Name Assigned By Controlling Agency [CXCY]
- Bulk Tank Gauge
Weapon Systems (WSDC) 6680-01-529-7332
DLA Procurement Analysis 6680-01-529-7332
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6680-01-529-7332
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6680-01-529-7332
Freight Information 6680-01-529-7332
6680-01-529-7332 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121570. A Sub NMFC of X. It has a NMFC Description of GAGES AIR LIQUID LEVEL PRESSURE. 6680-01-529-7332 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61770 which rates the freight between FCL and LCL. 6680-01-529-7332 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 653 for ocean manifesting and military sealift. 6680-01-529-7332 is not classified as a special type of cargo when transported by water. 6680-01-529-7332 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-01-529-7332
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Delicate instrument
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
