6680-01-466-8765
Liquid Sight Indicator
6680014668765 014668765 200087
An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW. View more Liquid Sight Indicator
November 2023
4
Marketplace 6680-01-466-8765
Request a Quotation from participating marketplace vendors
Related Documents 6680-01-466-8765 5+ Documents (More...)
Every Day 6680-01-466-8765 RQST NE Related Documents 6680-01-466-8765 5+ Documents ( More... ) https
NE FedMall Updated Every Day 6680-01-466-8765 RQST NE Updated Every Day 6680-01-466-8765 RQST Updated
-701 200087 200100 A positive displacement device which utilzes the https//www.nsnlookup.com /fsg-59/
www.nsnlookup.com /fsg-65/fsc-6530/de 6530-12-371-8129 Adjustable Bed 6530123718129 123718129,200087 200087
-701 200087 200100 A positive displacement device which utilzes the https//www.nsnlookup.com /fsg-59
200087 Mast Adapter 5985015909837 015909837,200087 Upgrade for $1 a day Upgrade your Account Upgrade
-004 CONTACT,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details... 200087-004 CONTACT
/www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-421-7181 Electrical Contact 5999014217181014217181 200087
-701 200087 200100 A positive displacement device which utilzes the https//www.nsnlookup.com /fsg-59
200087 -701 200087 200100 A positive displacement device which utilzes the JavaScript in your web browser
Restrictions 6680-01-466-8765
6680-01-466-8765 is a Liquid Sight Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-01-466-8765
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-01-466-8765
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
- Australia (ZA01)
- Effective Date:
- 1 Jun 2010
Approved Sources 6680-01-466-8765
- Part Number
- Manufacturer
- Status
- 200087
- Manufacturer
- 11520 - Champion Industries Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 6680-01-466-8765
- Characteristic
- Specifications
- FIIG
- Specifications
- A43400
- Material [MATT]
- Any Acceptable

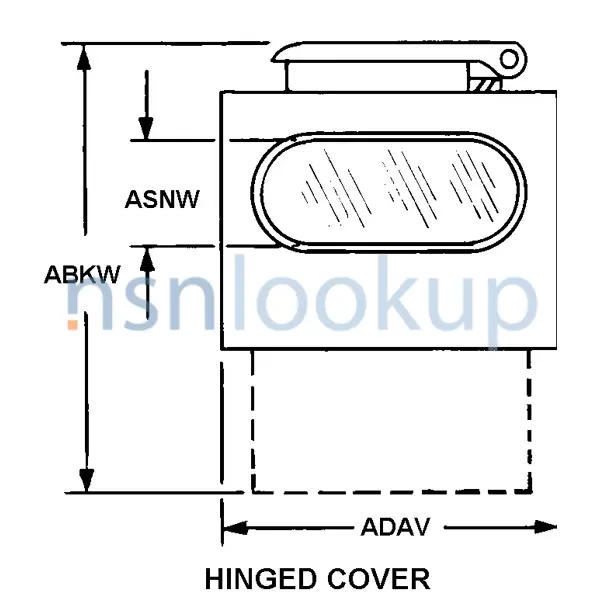

- Style Designator [STYL]
- Hinged Cover
- Overall Diameter [ADAV]
- 3.000 Inches Nominal
- Overall Height [ABKW]
- 3.250 Inches Nominal
- Sight Height [ASNW]
- 3.000 Inches Nominal
- Media For Which Designed [MEDA]
- Water
- Furnished Data [CSQG]
- Liquid Level
- Data Furnishing Method [CTCY]
- Clear Window
- Maximum Working Pressure [BPHD]
- 10.0 Pounds Per Square Inch
- Maximum Temp Rating [ATQZ]
- 250.0 Deg Fahrenheit
- End Connection Type [AWZY]
- External, Seat Or Gasket Seal Single End
- End Item Identification [AGAV]
- 250-Usn-72 Dishwashing Machine
Weapon Systems (WSDC) 6680-01-466-8765
DLA Procurement Analysis 6680-01-466-8765
- Last Stock Position:
- 16 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6680-01-466-8765
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6680-01-466-8765
Freight Information 6680-01-466-8765
6680-01-466-8765 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121570. A Sub NMFC of X. It has a NMFC Description of GAGES AIR LIQUID LEVEL PRESSURE. 6680-01-466-8765 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61770 which rates the freight between FCL and LCL. 6680-01-466-8765 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 653 for ocean manifesting and military sealift. 6680-01-466-8765 is not classified as a special type of cargo when transported by water. 6680-01-466-8765 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-01-466-8765
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 6680-01-466-8765 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623V185X
- 28 Apr 2023
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PG661
- 29 Mar 2022
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4A618F205B
- 27 Apr 2018
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE4A618F2847
- 07 Nov 2017
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE4A617D62120003
- 23 Aug 2017
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE4A617D62120002
- 05 Jul 2017
- Subscribe
- 8
- Subscribe
- Subscribe
- Subscribe
- SPE4A617D62120001
- 09 May 2017
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE4A416V2132
- 17 Nov 2015
- Subscribe
- 46
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 6680-01-466-8765 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
