6680-00-933-3599

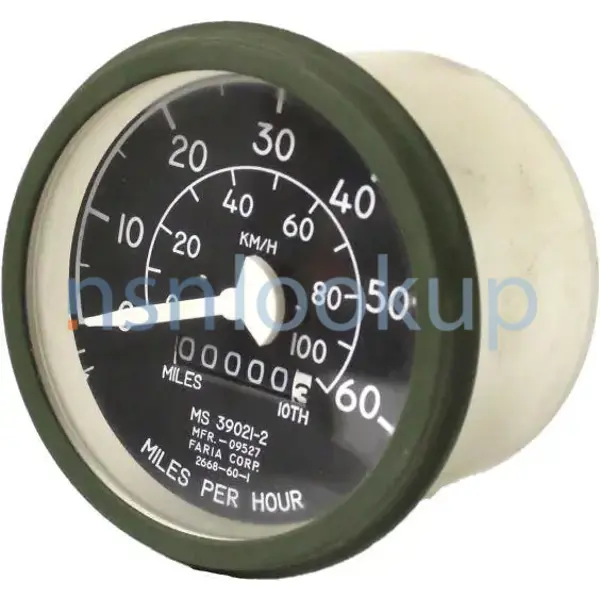

Speedometer

6680009333599 009333599 MIL-DTL-10215 MS39021-2 M10215-1A 113006 MIL-DTL-10215K MILI10215 1505359 1582373 503C 8376375 1581256 808913 1580268 573N1 573N E012205 6680PL0896081

An instrument for measuring and indicating in miles or kilometers per hour the speed at which a vehicle is being driven. It measures and records distance traveled by means of an odometer. It does not include SHAFT ASSEMBLY, FLEXIBLE. View more Speedometer

Managed by United States

NSN Created on 5 Aug 1966

Data Last Changed
April 2025

NATO Update Count
73

NATO Data Quality

6680-00-933-3599 SPEEDOMETER 6680009333599 009333599 1/1 — 6680-00-933-3599 Photo 1/1

Marketplace 6680-00-933-3599

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS39021-2 SPEEDOMETER 1 EA NS

Subscribe to View Vendor Details...

6680-00-933-3599 SPEEDOMETER 40 EA NS

Subscribe to View Vendor Details...

6680-00-933-3599 SPEEDOMETER 431 EA NS

MS39021-2 SPEEDOMETER 1457 EA NS

Subscribe to View Vendor Details...

113006 SPEEDOMETER 9 EA NS

113-006 SPEEDOMETER 62 EA NS

MS39021-2 SPEEDOMETER 6 EA NS

Subscribe to View Vendor Details...

M10215-1AMS39021-28089131580268 SPEEDOMETER 8 EA NS

Subscribe to View Vendor Details...

MS39021-2 SPEEDOMETER 120 EA NS

Subscribe to View Vendor Details...

8376375 SPEEDOMETER RQST NS

MS39021-2 SPEEDOMETER 60 EA NS

Subscribe to View Vendor Details...

503C SPEEDOMETER RQST NS

Subscribe to View Vendor Details...

009333599.6680 SPEEDOMETER 250 EA NS

Subscribe to View Vendor Details...

6680-00-933-3599 SPEEDOMETER 2 EA NS

6680-00-933-3599 RQST NE

Updated Every Day

6680-00-933-3599 RQST

Updated Every Day

6680-00-933-3599 RQST NE

Restrictions 6680-00-933-3599

6680-00-933-3599 is a Speedometer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). The precious metals content of this item is unknown.

Import and Export 6680-00-933-3599

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6680-00-933-3599

US Army (A920)
Effective Date:: 1 Sep 2006
Former MOE Rule:: A183
Supplementary Receivers:: AZBFBD; AMC 1 AMSC T IMC Z IMCACTY CD

US Air Force (FXGG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: FXCX; AMC 1 AMSC T IMC Z IMCACTY SX

US Marine Corps (MC41)
Effective Date:: 1 Sep 2006
Former MOE Rule:: MC04; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTHD; AMC 1 AMSC T IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jan 2002

Poland (WP01)
Effective Date:: 1 Apr 2003

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Sep 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 2009

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 6680-00-933-3599

Part Number
Manufacturer
Status
M10215-1A: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-10215: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
E012205: 24975 - Prestolite Electric Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
MS39021-2: 96906 - Military Standards (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
6680009333599: A00AM - E.C.A Etablissement Central Des (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
113006: 10237 - Cadillac Gage Textron Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MIL-DTL-10215K: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MILI10215: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
1505359: 12204 - Chrysler Realty Company Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1582373: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
503C: 57733 - Stewart-Warner Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
8376375: 19207 - U S Army Tank Automotive Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
1581256: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
808913: 34623 - Am General Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1580268: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1581256: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
1582373: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
573N1: 56442 - Diamond Reo Truck Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
573N: 56442 - Diamond Reo Truck Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
E012205: 68505 - Prestolite Electric Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6680PL0896081: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 6680-00-933-3599

Characteristic
Specifications
FIIG: T145-A
Bezel Overall Diameter [BGNF]: 3.735 Inches Minimum And 3.797 Inches Maximum
Case Overall Depth [BGNH]: 2.312 Inches Maximum
Case Overall Diameter [BGNG]: 3.375 Inches Nominal
Environmental Protection [ADZC]: Waterproof
Head Type [AJGD]: Mechanical
High Headlight Beam Indicator [BGNJ]: Not Provided
Mounting Method [AXGY]: Clamp
Nondefinitive Spec/Std Data [ZZZT]: A Group And I Type
Odometer Total Range [BFZY]: +0.0/+99999.9 Miles
Illuminative Method [AQQB]: External
Indicator Type [AMKD]: Needle
Luminous Major Graduations/Indicator [BGNK]: Not Provided
Major Graduation Unit [BFZX]: 0,10,20,30,40,50,60
Screw Thread Series Designator [AJYP]: Unf
Shaft Opening Design [BGBC]: Square
Size [BGBD]: 0.105 Inches Minimum And 0.108 Inches Maximum
Trip Odometer [BFZZ]: Not Provided
Window Material [AYPT]: Glass
Speed Indicator Range [BFZW]: +0.0/+60.0 Miles Per Hour
Thread Direction [AAJF]: Right-Hand
Thread Size [ABUJ]: 5/8-18

Weapon Systems (WSDC) 6680-00-933-3599

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6680-00-933-3599

Last Stock Position:: 394 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6680-00-933-3599

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2019: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 6680-00-801-8155

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

L: Radioactive

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 6680-00-933-3599

Freight Information 6680-00-933-3599

6680-00-933-3599 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 136800. A Sub NMFC of Z. It has a NMFC Description of FLOW, NOI. 6680-00-933-3599 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 68850 which rates the freight between FCL and LCL. 6680-00-933-3599 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 653 for ocean manifesting and military sealift. 6680-00-933-3599 is not classified as a special type of cargo when transported by water. 6680-00-933-3599 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6680-00-933-3599

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; Delicate instrument

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM - D5118, Fiberboard Box

Procurement History 6680-00-933-3599 16 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623PYE15: 12 Sep 2023; Subscribe; 520; Subscribe; Subscribe
SPE4A623PYE15P00001: 12 Sep 2023; Subscribe; 520; Subscribe; Subscribe
SPE4A722F4027: 17 Dec 2021; Subscribe; 503; Subscribe; Subscribe
SPE4A722F4027: 17 Dec 2021; Subscribe; 503; Subscribe; Subscribe
SPE4A721F8750: 13 Aug 2021; Subscribe; 503; Subscribe; Subscribe
SPE4A721F8750: 13 Aug 2021; Subscribe; 503; Subscribe; Subscribe
SPE4A619F7068P00001: 21 Dec 2018; Subscribe; 126; Subscribe; Subscribe
SPE4A619F4201P00001: 19 Nov 2018; Subscribe; 183; Subscribe; Subscribe
SPE4A618F681WP00001: 13 Sep 2018; Subscribe; 227; Subscribe; Subscribe
SPE4A616D54910004: 06 Sep 2017; Subscribe; 502; Subscribe; Subscribe
SPE4A616D54910003: 08 Aug 2017; Subscribe; 502; Subscribe; Subscribe
SPE4A616D54910002: 29 Nov 2016; Subscribe; 502; Subscribe; Subscribe
SPE4A616D5491000101: 28 Apr 2016; Subscribe; 126; Subscribe; Subscribe
SPM4A611D02780004: 03 Jun 2015; Subscribe; 548; Subscribe; Subscribe
SPM4A611D02780003: 02 Oct 2014; Subscribe; 503; Subscribe; Subscribe
SPM4A611D02780002: 14 Feb 2014; Subscribe; 503; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6680-00-933-3599 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: G

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 6680-00-933-3599

Related Documents 6680-00-933-3599 5+ Documents (More...)

Restrictions 6680-00-933-3599

Import and Export 6680-00-933-3599

End Users 6680-00-933-3599

Approved Sources 6680-00-933-3599

Datasheet 6680-00-933-3599

Weapon Systems (WSDC) 6680-00-933-3599

DLA Procurement Analysis 6680-00-933-3599

Management Data 6680-00-933-3599

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 6680-00-933-3599

Freight Information 6680-00-933-3599

Packaging Data 6680-00-933-3599

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 6680-00-933-3599 16 Records

Contracting Technical Data File (CTDF) 6680-00-933-3599 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
