6680-00-764-1724
Rotating Counter
6680007641724 007641724 2469883 2469883PC2 6Y-11701-RS-CL
An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL. View more Rotating Counter
January 2023
26
Marketplace 6680-00-764-1724
Request a Quotation from participating marketplace vendors
Related Documents 6680-00-764-1724 1+ Documents (More...)
(Identification) 1/2 NSN 6680-00-764-1724 (Identification) 2/2 - - 1.
United States (US) 4. 6680-00-764-1724 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 6680-00-764-1724
6680-00-764-1724 is a Rotating Counter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-00-764-1724
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-00-764-1724
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 6680-00-764-1724
- Part Number
- Manufacturer
- Status
- 2469883PC2
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 6Y-11701-RS-CL
- 18911 - Eaton Corp (Active)
- Primary Buy
- Primary Buy
- 2469883
- 10001 - Navair And Navsea Managed Original (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 6680-00-764-1724
- Characteristic
- Specifications
- FIIG
- Specifications
- A236A0
- Actuating Device Location [AXEG]
- Right Side Single Register Single Tier
- Color [HUES]
- Black Single Register Single Tier Figure Background
- Color [HUES]
- White Single Register Single Tier Figure
- Figure Height [ANQT]
- 0.188 Inches Nominal Single Register Single Tier
- Figure Quantity Per Register [ANQS]
- 6 Single Register Single Tier
- Maximum Count Rate [ANRE]
- 60000.0 Per Minute Single Register Single Tier

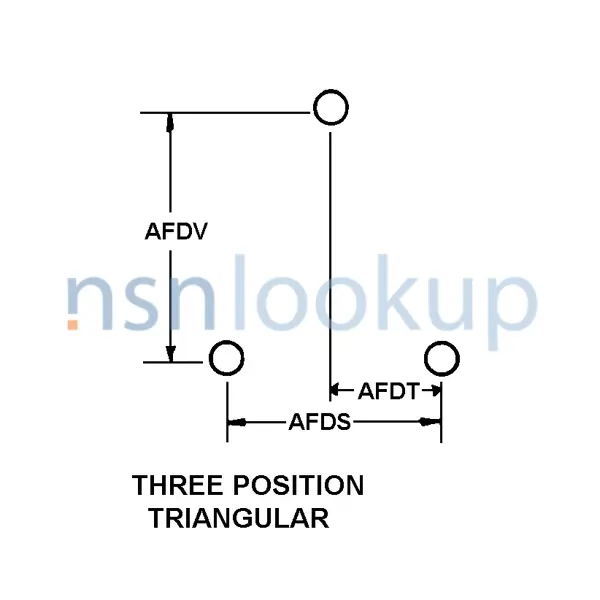

- Mounting Arrangement Style [ANRL]
- Three Position Triangular
- Mounting Facility Type And Quantity [AXHR]
- 3 Threaded Hole
- Mounting Type For Which Designed [BCNX]
- Base Single Register Single Tier
- Numeral Display Method [CSWS]
- Drum
- Numeral Readout [CSWT]
- 000000 Minimum Single Register Single Tier And 999980 Maximum Single Register Single Tier
- Style Designator [STYL]
- Unenclosed Square Or Rectangular
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 0.963 Inches Minimum And 0.973 Inches Maximum
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 0.604 Inches Minimum And 0.614 Inches Maximum
- Register Function [AXED]
- Add Single Register Single Tier
- Register Quantity [ANQD]
- 1
- Shaft Diameter [ABWV]
- 0.155 Inches Minimum And 0.156 Inches Maximum
- Shaft Length [ABXF]
- 0.500 Inches Nominal
- Shaft Revolutions Per Count [ANRD]
- 0.02 Single Register Single Tier
- Shaft Rotation Direction And Maximum Speed In Rpm [CSWW]
- 3000.0 Clockwise Single Register Single Tier
- Shortest Horizontal Distance Between Mounting Centers [AFDT]
- 0.963 Inches Minimum And 0.973 Inches Maximum
- Overall Height [ABKW]
- 1.094 Inches Nominal
- Overall Length [ABHP]
- 2.844 Inches Nominal
- Overall Width [ABMK]
- 0.812 Inches Nominal
- Special Features [FEAT]
- Nonresettable,Right Hand Wheel Locked On Zero,Unit Wheel Has A Two Tooth Transfer With Figures Two Four Six And Eight
DLA Procurement Analysis 6680-00-764-1724
Management Data 6680-00-764-1724
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2003
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- V
- Discontinued Without Replacement
- V
NATO Stock Numbers Related to 6680-00-764-1724
Freight Information 6680-00-764-1724
6680-00-764-1724 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058240. A Sub NMFC of X. It has a NMFC Description of RECORDING DEVICES GAUGES/METERS NOI. 6680-00-764-1724 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33170 which rates the freight between FCL and LCL. 6680-00-764-1724 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 653 for ocean manifesting and military sealift. 6680-00-764-1724 is not classified as a special type of cargo when transported by water. 6680-00-764-1724 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-00-764-1724
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 6680-00-764-1724 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
