6680-00-732-0561

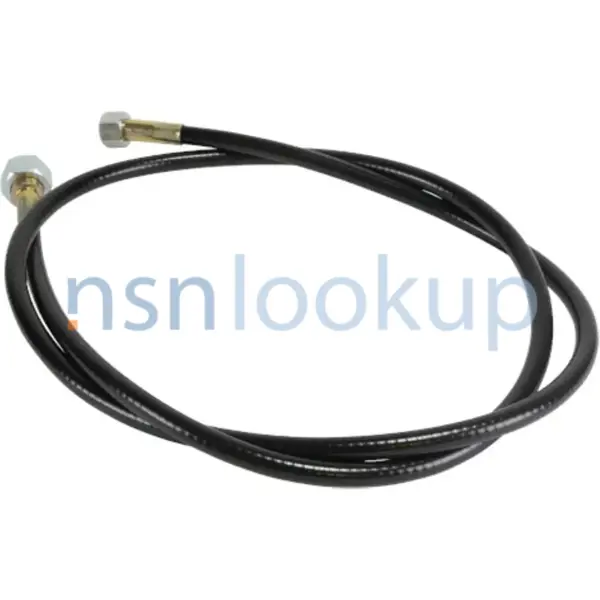

Flexible Shaft Assembly

6680007320561 007320561 MIL-DTL-10215 M10215-1F105 MIL-S-10215 MS51071-5 M10215-1B105 MIL-PRF-10215 1747920 7320561 446125-62 1-2IN 446125-62

An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL. View more Flexible Shaft Assembly

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
August 2025

NATO Update Count
48

NATO Data Quality

6680-00-732-0561 SHAFT ASSEMBLY,FLEXIBLE 6680007320561 007320561 1/1 — 6680-00-732-0561 Photo 1/1

Marketplace 6680-00-732-0561

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS51071-5 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

MS51071-5 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

446125-621-2IN SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

MS51071-5 SHAFT ASSEMBLY,FLEXIBLE 2 EA NS

MIL-PRF-10215 SHAFT ASSEMBLY,FLEXIBLE 3 EA NS

Subscribe to View Vendor Details...

MIL-DTL-10215 SHAFT ASSEMBLY,FLEXIBLE 2 EA NS

Subscribe to View Vendor Details...

MIL-S-10215 SHAFT ASSEMBLY,FLEXIBLE 7 EA NS

Subscribe to View Vendor Details...

1747920 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

MS51071-5 SHAFT ASSEMBLY,FLEXIBLE 141 EA NS

Subscribe to View Vendor Details...

CABLETACH212T SHAFT ASSEMBLY,FLEXIBLE RQST NS

Subscribe to View Vendor Details...

6680-00-732-0561 SHAFT ASSY, FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

M10215-1F105 SHAFT ASSEMBLY,FLEXIBLE 3 EA NS

Subscribe to View Vendor Details...

6680-00-732-0561 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

MS51071-5 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

1747920 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

MIL-S-10215 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

446125-621-2IN SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

MIL-PRF-10215 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

M102151B1-05 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

446125-62 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

007320561.6680 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

1549159 SHAFT ASSEMBLY,FLEXIBLE 1 EA NS

Subscribe to View Vendor Details...

6680-00-732-0561 SHAFT ASSEMBLY,FLEXIBLE RQST NS

Subscribe to View Vendor Details...

6680-00-732-0561 SHAFT ASSEMBLY,FLEXIBLE 2 EA NS

Updated Every Day

6680-00-732-0561 RQST NE

Updated Every Day

6680-00-732-0561 RQST

Updated Every Day

6680-00-732-0561 RQST NE

Restrictions 6680-00-732-0561

6680-00-732-0561 is a Flexible Shaft Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

End Users 6680-00-732-0561

US Army (A920)
Effective Date:: 1 Sep 2006
Former MOE Rule:: A183
Supplementary Receivers:: AZCTBFBD; AMC 1 AMSC T IMC Z IMCACTY CD

US Air Force (FXGG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: FXCX; AMC 1 AMSC T IMC Z IMCACTY SX

US Marine Corps (MC41)
Effective Date:: 1 Sep 2006
Former MOE Rule:: MC04; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC T IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Sep 2016

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Mar 2011

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 6680-00-732-0561

Part Number
Manufacturer
Status
M10215-1F105: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-10215: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
MIL-S-10215: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS51071-5: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
M10215-1B105: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MIL-PRF-10215: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
1747920: 12204 - Chrysler Realty Company Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
7320561: 19207 - U S Army Tank Automotive Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
446125-62 1-2IN: 57733 - Stewart-Warner Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1747920: 70219 - Chrysler Corp Dayton Plant 1 (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6680007320561: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
446125-62: 57733 - Stewart-Warner Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6680007320561: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 6680-00-732-0561

Characteristic
Specifications
FIIG: T246-E
End Connection Type [AWZY]: Threaded Internal Both Ends
Casing Length Between Ferrules [CFRP]: 62.438 Inches Minimum And 62.562 Inches Maximum
Casing Outside Diameter [CFRQ]: 0.300 Inches Minimum And 0.500 Inches Maximum
Casing Protective Device Type [CFRR]: Plastic Cover Or Rubber Cover
Casing Surface Treatment [CFRN]: Any Acceptable
Core Diameter [AKMH]: 0.150 Inches Nominal
Core Material [AJXJ]: Steel
Core Overall Length [CFRZ]: 63.594 Inches Minimum And 63.718 Inches Maximum
Core Removability [CFSL]: Removable
Core Rotation Direction [CFSB]: Clockwise
Cross Section Size And Location [CFQW]: 0.101 Inches Minimum Across Flats And 0.104 Inches Maximum Across Flats Second End
Cross Section Size And Location [CFQW]: 0.150 Inches Minimum Diameter And 0.153 Inches Maximum Diameter First End
End Overall Diameter [CFRW]: 0.875 Inches Nominal Second End
End Overall Diameter [CFRW]: 1.188 Inches Nominal First End
End Type [APTD]: Round Keyed First End
End Type [APTD]: Square Male Second End
Casing Material [BJPS]: Rubber And Steel
Minimum Operating Radius [CGDN]: 5.000 Inches
Lubrication Fitting [CFRY]: Not Provided Both Ends
Screw Thread Series Designator [AJYP]: Unf Second End
Screw Thread Series Designator [AJYP]: Uns First End
Setscrew [BDRL]: Not Included Both Ends
Overall Length [ABHP]: 63.594 Inches Minimum And 63.718 Inches Maximum
Special Features [FEAT]: Counterclockwise Core Rotation Direction,Torsion Strength Either Direction 15.0 Lbs.Thread Size Is 0.625-18 And 0.875-18.
Width Across Flats [ASDB]: 0.750 Inches Nominal Second End
Width Across Flats [ASDB]: 1.000 Inches Nominal First End
Wrenching Facility Type [BPPL]: Hexagon Both Ends
Swivel End [CFRT]: Not Provided Both Ends
Thread Class [AAJD]: 2B Both Ends
Thread Depth [AECT]: 0.375 Inches Nominal Second End
Thread Depth [AECT]: 0.327 Inches Nominal First End
Thread Direction [AAJF]: Right-Hand Both Ends
Thread Location [APJC]: Internal Both Ends
Tip Length [AEDN]: 0.950 Inches Minimum And 1.010 Inches Maximum Second End
Tip Length [AEDN]: 1.018 Inches Minimum And 1.022 Inches Maximum First End

Weapon Systems (WSDC) 6680-00-732-0561

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6680-00-732-0561

Last Stock Position:: 67 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6680-00-732-0561

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 6680-00-732-0561

Freight Information 6680-00-732-0561

6680-00-732-0561 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 129920. A Sub NMFC of X. It has a NMFC Description of SHAFTS/SHAFTING,FLEX NOI STL. 6680-00-732-0561 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 6680-00-732-0561 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6680-00-732-0561 is not classified as a special type of cargo when transported by water. 6680-00-732-0561 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6680-00-732-0561

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; MIL-DTL-117, Type III, Class B, Style 2, Heavy Duty, Waterproof, Transparent Bag; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM - D5118, Fiberboard Box

Procurement History 6680-00-732-0561 15 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623F197V: 07 Jun 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F009W: 21 Mar 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F009W: 21 Mar 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F8170: 21 Feb 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F8170: 21 Feb 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F5530: 12 Jan 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A623F5530: 12 Jan 2023; Subscribe; 183; Subscribe; Subscribe
SPE4A622F193B: 22 Jun 2022; Subscribe; 171; Subscribe; Subscribe
SPE4A622F135J: 17 May 2022; Subscribe; 275; Subscribe; Subscribe
SPE4A622F005A: 20 Mar 2022; Subscribe; 147; Subscribe; Subscribe
SPE4A622F8738: 24 Feb 2022; Subscribe; 275; Subscribe; Subscribe
SPE4A622F3472: 18 Nov 2021; Subscribe; 69; Subscribe; Subscribe
SPE4A622F0117: 01 Oct 2021; Subscribe; 86; Subscribe; Subscribe
SPE4A621F058K: 16 Apr 2021; Subscribe; 131; Subscribe; Subscribe
SPE4A621F6221: 19 Jan 2021; Subscribe; 69; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6680-00-732-0561 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 6680-00-732-0561

Related Documents 6680-00-732-0561 5+ Documents (More...)

Restrictions 6680-00-732-0561

End Users 6680-00-732-0561

Approved Sources 6680-00-732-0561

Datasheet 6680-00-732-0561

Weapon Systems (WSDC) 6680-00-732-0561

DLA Procurement Analysis 6680-00-732-0561

Management Data 6680-00-732-0561

Army

Navy

Marine Corps

Similar Supply Items to 6680-00-732-0561

Freight Information 6680-00-732-0561

Packaging Data 6680-00-732-0561

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 6680-00-732-0561 15 Records

Contracting Technical Data File (CTDF) 6680-00-732-0561 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
