6680-00-488-5539
Electrical Counter
6680004885539 004885539 2531490 31-1016 764DB25 6680PL0884133
An instrument which is actuated by electrical pulses and designed to register and total numerically in units proportional to its applied pulses. See also COUNTER, RECIPROCATING and COUNTER, ROTATING. View more Electrical Counter
January 2023
27
Marketplace 6680-00-488-5539
Request a Quotation from participating marketplace vendors
Related Documents 6680-00-488-5539 1+ Documents (More...)
(Identification) 1/2 NSN 6680-00-488-5539 (Identification) 2/2 - - 1.
Updated Every Day 6680-00-488-5539 RQST NE Updated Every Day 6680-00-488-5539 RQST Updated Every Day
Restrictions 6680-00-488-5539
6680-00-488-5539 is a Electrical Counter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-00-488-5539
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-00-488-5539
- Poland (WP01)
- Effective Date:
- 1 Apr 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Aug 1993
- France (ZF01)
- Effective Date:
- 28 Sep 2010
- Greece (ZU01)
- Effective Date:
- 1 Aug 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 6680-00-488-5539
- Part Number
- Manufacturer
- Status
- 2531490
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Incomplete Reference
- Incomplete Reference
- 31-1016
- 28292 - Redington Counters Inc (Active)
- Primary Buy
- Primary Buy
- 764DB25
- 14907 - Cramer Co Division Of Chestnut Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 6680PL0884133
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 6680-00-488-5539
- Characteristic
- Specifications
- FIIG
- Specifications
- A236A0
- Color [HUES]
- Black Single Register Single Tier Figure Background
- Color [HUES]
- White Single Register Single Tier Figure
- Figure Height [ANQT]
- 0.200 Inches Nominal Single Register Single Tier
- Figure Quantity Per Register [ANQS]
- 6 Single Register Single Tier
- Maximum Count Rate [ANRE]
- 1200.0 Per Minute Single Register Single Tier

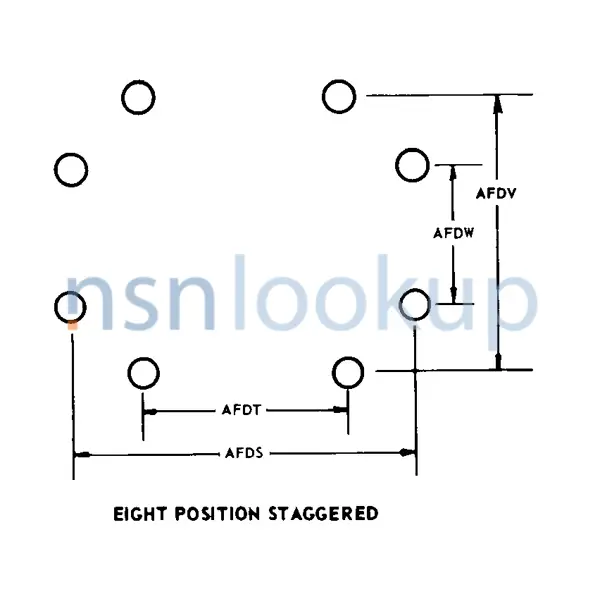

- Mounting Arrangement Style [ANRL]
- Eight Position Staggered
- Mounting Facility Type And Quantity [AXHR]
- 8 Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Base Single Register Single Tier
- Numeral Display Method [CSWS]
- Drum
- Numeral Readout [CSWT]
- 000000 Minimum Single Register Single Tier And 999999 Maximum Single Register Single Tier
- Style Designator [STYL]
- Electrical Cased
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 3.312 Inches Nominal
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 1.355 Inches Nominal
- Register Function [AXED]
- Add Single Register Single Tier
- Register Quantity [ANQD]
- 1
- Register Reset Method [AXEC]
- Total Counter Electric Single Register Single Tier
- Shortest Horizontal Distance Between Mounting Centers [AFDT]
- 3.230 Inches Nominal
- Shortest Vertical Distance Between Mounting Centers [AFDW]
- 0.875 Inches Nominal
- Overall Height [ABKW]
- 3.609 Inches Nominal
- Overall Length [ABHP]
- 3.671 Inches Nominal
- Overall Width [ABMK]
- 1.843 Inches Nominal
- Voltage In Volts And Current Type [CSBH]
- 24.0 Dc
- Terminal Type And Quantity [TTQY]
- 4 Screw
DLA Procurement Analysis 6680-00-488-5539
Management Data 6680-00-488-5539
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2012
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- V
- Discontinued W/O Replacement
- V
NATO Stock Numbers Related to 6680-00-488-5539
Freight Information 6680-00-488-5539
6680-00-488-5539 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6680-00-488-5539 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 6680-00-488-5539 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6680-00-488-5539 is not classified as a special type of cargo when transported by water. 6680-00-488-5539 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-00-488-5539
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 6680-00-488-5539 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
