6680-00-472-0073

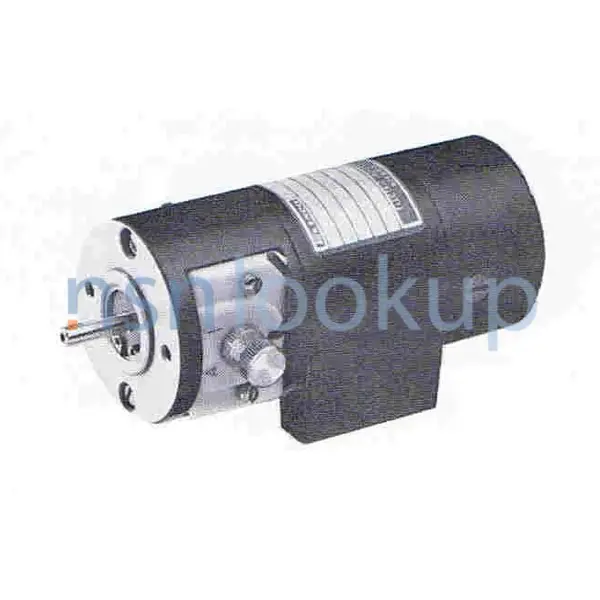

Tachometer Generator
6680004720073 004720073 SMC192247 A1043 CB29
A generator consisting of a series of mounted coils surrounding a rotating permanent magnet or a permanent magnet and a rotating armature. The voltage output is directly proportional to the speed of rotation of the shaft. When used with an associated indicator, transmits such data as revolutions per minute, speed of travel, and the like. May also be used in servomechanism loops as a system stabilizer. Excludes rotary inverters, rotary converters, motor generators, dynamotors, generator sets, synchros, frequency or phase changers, and engine accessory generators. View more Tachometer Generator
May 2023
3
Marketplace 6680-00-472-0073
Request a Quotation from participating marketplace vendors
Related Documents 6680-00-472-0073 5+ Documents (More...)
Every Day 6680-00-472-0073 RQST Updated Every Day 6680-00-472-0073 RQST NE Related Documents 6680-00
6680-00-472-0073 RQST NE Related Documents 6680-00 6680-00-472-0073 RQST https//www.nsnlookup.com /fsg
Tachometer Generator 6680004720073 004720073 Related Documents 6680-00 6680-00-472-0073 RQST https
Navy (DN)NAConsolidated With 6680-00-472-0073Defense Logistics Agency (DS)IAConsolidated With 6680-00-472-0073
CB29-100 GENERATOR,TACHOMETER 1 EA NS Request Quotation Subscribe to View Vendor Details... 6680-00-230
www.nsnlookup.com /fsg-66/fsc-6680/us 6680-00-230-0937 Tachometer Generator 6680002300937002300937 CB29
www.nsnlookup.com /fsg-69/fsc-6930/uk 6930-99-735-3024 Circuit Card Assembly 6930997353024997353024 A1043
www.nsnlookup.com /fsg-69/fsc-6930/uk 6930-99-735 https//www.nsnlookup.com /fsg-66/fsc-6680/us 6680-00-472-0073
Restrictions 6680-00-472-0073
6680-00-472-0073 is a Tachometer Generator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-00-472-0073
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-00-472-0073
- US Air Force (FXGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FXCX
- MOE Rule:
- RGX1
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- R476
- Supplementary Collaborators:
- TR
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6680-00-472-0073
- Part Number
- Manufacturer
- Status
- SMC192247
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- A1043
- 73693 - Schulze Mfg., Inc. (Active)
- Secondary Buy
- Secondary Buy
- CB29
- 73693 - Schulze Mfg., Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 6680-00-472-0073
- Characteristic
- Specifications
- FIIG
- Specifications
- A271A0
- Electrical Resistance [AAPP]
- 286.0 Ohms
- Calibration Speed In Rpm [BFLQ]
- 1000.0
- Calibration Voltage Output Type In Volts [BKPC]
- 24.3 Dc
- Current Rating In Amps [CWGL]
- 0.050 Single Input
- Current Type [ACDC]
- Dc Input
- Features Provided [CBBL]
- Horizontal Mounting Position And Vertical Mounting Position
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Mounting Method [AXGY]
- Fixed Base
- Nominal Center To Center Distance Between Mounting Facilities Parallel To Length [CWDT]
- 1.000 Inches
- Nominal Center To Center Distance Between Mounting Facilities Parallel To Width [CWFY]
- 1.250 Inches
- Overall Length [AAJU]
- 4.187 Inches
- Length Of Shaft From Housing [CWCS]
- 0.562 Inches Single End
- Rotor Speed Rating In Rpm [CWFX]
- 10000.0 Single Full Load
- Shaft End Characteristic [CWHZ]
- A1 Single Style Single End
- Shaft Diameter [ABWV]
- 0.1562 Inches Nominal Single End
- Shaft Rotation Direction [AKCT]
- Clockwise Single End
- Overall Height [AAJT]
- 2.000 Inches
- Overall Width [AAJV]
- 2.375 Inches
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
DLA Procurement Analysis 6680-00-472-0073
Management Data 6680-00-472-0073
Similar Supply Items to 6680-00-472-0073
Freight Information 6680-00-472-0073
6680-00-472-0073 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 6680-00-472-0073 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 6680-00-472-0073 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6680-00-472-0073 is not classified as a special type of cargo when transported by water. 6680-00-472-0073 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6680-00-472-0073
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 6680-00-472-0073 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
