6680-00-242-2917
Liquid Sight Indicator
6680002422917 002422917 571-4300-1302311REVAPC13 389903PC63 389904PC38 389904PPC38 G211-4 3771-10REVAPC13 575-4300-1443923REVAPC13 240144PC63 311564PC63 389903PPC63 3671-16REVAPC13 G7221PC63 G5313PC63 528 1-2 G8786PC63 D3079PC528 1-2 G8785PC38
An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW. View more Liquid Sight Indicator
November 2023
9
Marketplace 6680-00-242-2917
Request a Quotation from participating marketplace vendors
Related Documents 6680-00-242-2917 2+ Documents (More...)
240144PC63 311564PC63 389903PPC63 3671-16REVAPC13 G7221PC63 G5313PC63 528 1-2 G8786PC63 D3079PC528 1
G211-4 INDICATOR,SIGHT,LIQUID 5 EA NS Request Quotation Updated Every Day 6680-00-242-2917 RQST NE Updated
Liquid Sight Indicator 6680002422917 Updated Every Day 6680-00-242-2917 RQST NE Updated https//
Restrictions 6680-00-242-2917
6680-00-242-2917 is a Liquid Sight Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6680-00-242-2917
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6680-00-242-2917
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 6680-00-242-2917
- Part Number
- Manufacturer
- Status
- 571-4300-1302311REVAPC13
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 389903PC63
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 389904PC38
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 389904PPC38
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- G211-4
- 24346 - Ldi Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- 3771-10REVAPC13
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 575-4300-1443923REVAPC13
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 240144PC63
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 311564PC63
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 389903PPC63
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 3671-16REVAPC13
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- G7221PC63
- 16712 - Siemens Energy, Inc. (Active)
- Primary Buy
- Primary Buy
- G5313PC63
- 16712 - Siemens Energy, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 528 1-2
- 37239 - Lunkenheimer Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- G8786PC63
- 37239 - Lunkenheimer Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- D3079PC528 1-2
- 37239 - Lunkenheimer Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- G8785PC38
- 37239 - Lunkenheimer Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6680-00-242-2917
- Characteristic
- Specifications
- FIIG
- Specifications
- A43400
- Material [MATT]
- Copper Alloy

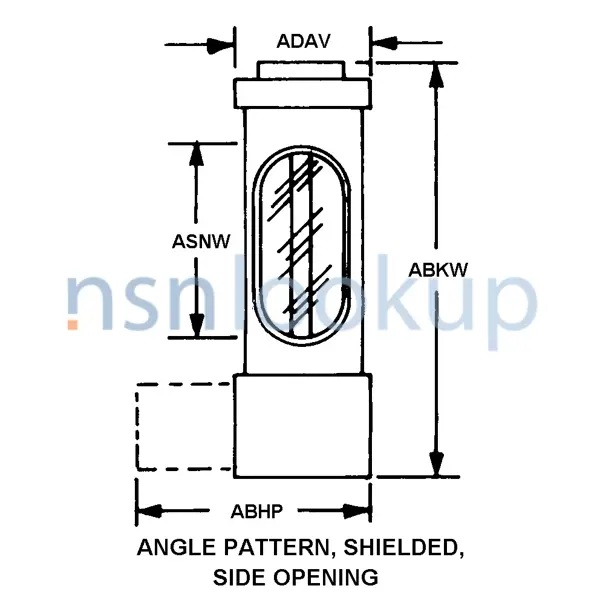

- Style Designator [STYL]
- Angle Pattern, Shielded Side Opening
- Overall Length [ABHP]
- 4.625 Inches Nominal
- Overall Diameter [ADAV]
- 1.125 Inches Nominal
- Overall Height [ABKW]
- 5.500 Inches Nominal
- Sight Height [ASNW]
- 3.250 Inches Nominal
- Media For Which Designed [MEDA]
- Oil
- Furnished Data [CSQG]
- Liquid Level
- Data Furnishing Method [CTCY]
- Clear Window
- End Connection Type [AWZY]
- Threaded External, Plain Single End
- Nominal Pipe Size For Which Designed [ACSU]
- 0.500 Inches Single End
- Thread Series Designator [THSD]
- Npt Single End
- Nominal Thread Size [CQJX]
- 0.500 Inches Single End
- Thread Quantity Per Inch [CMLP]
- 14 Single End
- Thread Direction [AAJF]
- Right-Hand Single End
DLA Procurement Analysis 6680-00-242-2917
Management Data 6680-00-242-2917
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6680-00-242-2917
Freight Information 6680-00-242-2917
6680-00-242-2917 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121570. A Sub NMFC of X. It has a NMFC Description of GAGES AIR LIQUID LEVEL PRESSURE. 6680-00-242-2917 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61770 which rates the freight between FCL and LCL. 6680-00-242-2917 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 653 for ocean manifesting and military sealift. 6680-00-242-2917 is not classified as a special type of cargo when transported by water. 6680-00-242-2917 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
