6650-01-233-0877
Optical Instrument Reticle
6650012330877 012330877 13082877
An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT. View more Optical Instrument Reticle
May 2023
6
Marketplace 6650-01-233-0877
Request a Quotation from participating marketplace vendors
Related Documents 6650-01-233-0877 1+ Documents (More...)
Updated Every Day 6650-01-233-0877 RQST NE Related Documents 6650-01-233-0877 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-66/fsc-6650/us 6650-01-233-0877 Optical Instrument Reticle 6650012330877
Restrictions 6650-01-233-0877
6650-01-233-0877 is a Optical Instrument Reticle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6650-01-233-0877
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6650-01-233-0877
- US Army (A921)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- A182
Approved Sources 6650-01-233-0877
- Part Number
- Manufacturer
- Status
- 13082877
- Manufacturer
- 04939 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
- 13082877
- 58260 - Program Manager Advanced Attack (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6650-01-233-0877
- Characteristic
- Specifications
- FIIG
- Specifications
- A530T0
- Angle In Deg [ADVR]
- 96.0
- Ammunition Identification Inscription [BPDS]
- Target Resolution
- Axial Thickness [BMLY]
- 3.8 Millimeters Minimum And 4.2 Millimeters Maximum
- Diameter [ABMZ]
- 12.6 Millimeters Minimum And 12.7 Millimeters Maximum
- Dispersion [BMSH]
- 46.0 Angstroms Nominal

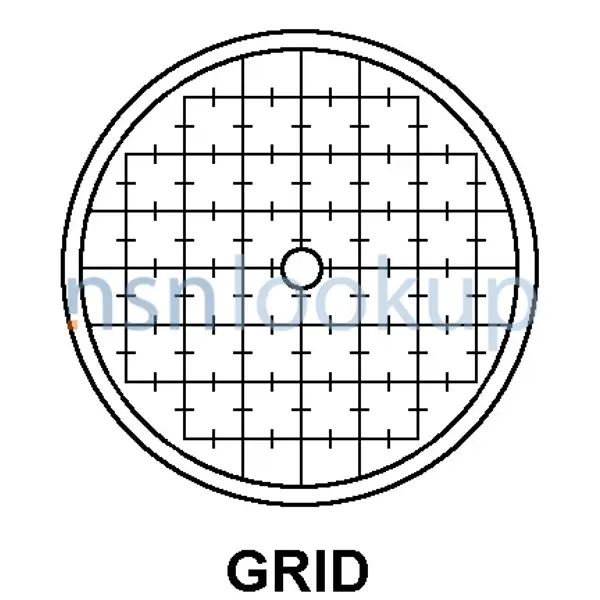

- Graduations/Markings [BPDR]
- Grid Type
- Material [MATT]
- Glass Optical
- Length [ABRY]
- 7.0 Millimeters Nominal
- Refraction Index [BMMX]
- 1.5171 Nominal
- Rim Finish [BMTX]
- Ground
- Scale Calibration [AMNK]
- To 0.0015 In.
- Style Designator [STYL]
- Grid
- Supplementary Features [SUPP]
- Material Optical Glass Per Mil-G-174
DLA Procurement Analysis 6650-01-233-0877
Management Data 6650-01-233-0877
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- X
- Formerly 1240
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 1270
- X
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 6650-01-233-0877
Freight Information 6650-01-233-0877
6650-01-233-0877 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 6650-01-233-0877 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 6650-01-233-0877 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 6650-01-233-0877 is not classified as a special type of cargo when transported by water. 6650-01-233-0877 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6650-01-233-0877 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
