6650-00-530-0960
M49 Spotting Scope Straight Telescope
6650005300960 005300960 6785630
A telescope whose line of vision is 180 degrees from the eye. View more Straight Telescope
March 2025
28
Product Information 6650-00-530-0960

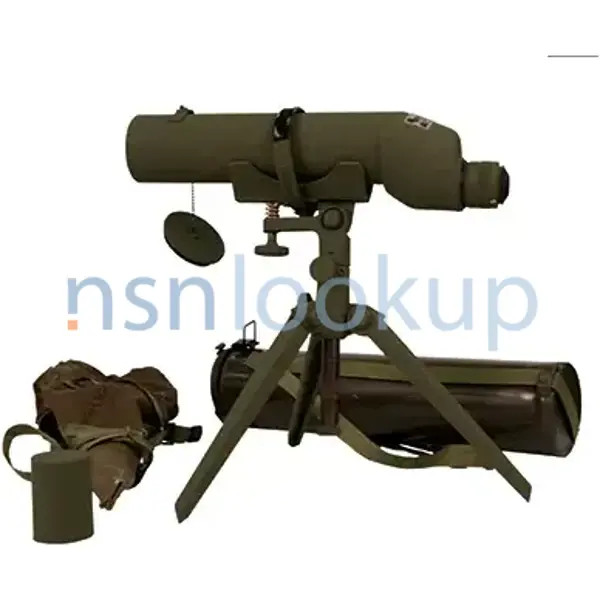

M49 Spotting Scope W/E (M49 Observation Telescope)
The M49 Spotting Scope, also known as the M49 Observation Telescope, is a multipurpose scope system used primarily for long range marksmanship observation. It can also be used for observing the effects of artillery fires and other general purposes.
The M49 is a fixed 20-power telescope with an eyepiece focus. It has a field of view of 2 degrees and an exit pupil diameter of 0.108 inches. The M49 is an erect image instrument that is magnified by the lenses in the eyepiece.
The M49 does not have an adjustable sunshade; however, the front end of the body tube extends approximately three-quarters of an inch beyond the objective providing a permanent sunshade.
The telescope is focused by turning the knurled focusing sleeve.
- Length 14 ½ in
- Power 20x
- Field of view 2 degrees 12 minutes
Key Components
The M49 Spotting Scope is available with a carrying case for the telescope, and a separate carrying case for the M15 Tripod.
- 7578445 M49 Observation Telescope
- 8270828 M164 Carrying Case (scope) 6650-00-871-2970
- 6543811 M15 Tripod 1240-00-654-3811
- 8244518M42A1 Carrying Case (tripod) 6650-00-310-2534
Marketplace 6650-00-530-0960
Request a Quotation from participating marketplace vendors
Related Documents 6650-00-530-0960 5+ Documents (More...)
United States (US) 4. 6650-00-530-0960 Marketplace Restrictions Approved Sources Datasheet Management
/fsc-6650/us 6650-00-530-0960 Straight Telescope 6650005300960005300960 6785630 A telescope whose line
/fsc-6650/us 6650-00-530-0960 M49 Spotting Scope Straight Telescope 6785630 A telescope whose line of
/fsc-6650/us 6650-00-530-0960 M49 Spotting Scope Straight Telescope 6785630 A telescope whose line of
Straight Telescope 6650005300960 005300960 vendors Request Updated Every Day 6650-00-530-0960 https
www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-678-5330 https//www.nsnlookup.com /fsg-66/fsc-6650/us 6650-00-530-0960
Straight Telescope 6650005300960 005300960 Request Updated Every Day 6650-00-530-0960 https https
00-310-2534 M42a1 Carrying Case 6650003102534 003102534 www.nsnlookup.com /fsg-66/fsc-6650/us 6650-00-530-0960
Restrictions 6650-00-530-0960
IUID Required
6650-00-530-0960 is a M49 Spotting Scope Straight Telescope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6650-00-530-0960
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6650-00-530-0960
- US Army (A402)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- CT
- US Air Force (F5BF)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- F1BF
- US Marine Corps (MA39)
- Effective Date:
- 1 Apr 1991
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Jul 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 6650-00-530-0960
- Part Number
- Manufacturer
- Status
- 6785630
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 6650-00-530-0960
- Characteristic
- Specifications
- FIIG
- Specifications
- T271-A
- Accessory Components And Quantity [AKYD]
- 1 Case,Carrying Tripod 1 Strap,Tripod 1 Tripod
- Carrying Case [AFJU]
- Provided
- Diopter Scale [BLPL]
- Not Included
- Field View Coverage [BLDD]
- 2 Deg 12 Min True Field Of View
- Focusing Type [BCTD]
- Adjustable
- Nondefinitive Spec/Std Data [ZZZT]
- 6785630 Part
- Objective Aperture Diameter [BLPM]
- 55.0 Millimeters Nominal
- Optical Device Type [BLPK]
- Lens And Prism
- Magnification Type [BLPQ]
- Fixed
- Magnification [BLPR]
- 20X Nominal
- Straight Type Overall Length [BLPS]
- 14.500 Inches Nominal
Management Data 6650-00-530-0960
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Jun 2009
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jun 1996
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To X015189679sb
- X015189679SB
- R
Army
- Materiel Category and Inventory Manager:
- M
- Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel
- Appropriation and Budget Activity:
- Q
- Other Support Equipment
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- SU
- Surveillance Target Acquisition and Night Observation (STANO)
Small Arms Optics
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Air Force
- Fund:
- PD
- Regulated items, item manager controlled
- Budget:
- M
- 57X3080 - Other Base Maintenance and Support Equipment
- Aggregation Code:
- RN
- GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC)
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - U
- Reparable. Condemn at Intermediate. AF Equipment Management System (AFEMS).
Marine Corps
- Stores Account:
- 3
- Appropriation Stores Account Principal Item
- Combat Essentiality:
- 1
- Combat Essential End Item
- Echelon Management:
- 13
- Material Identification:
- A
- Type 1 End Items
- Operational Test:
- 0
NATO Stock Numbers Related to 6650-00-530-0960
Freight Information 6650-00-530-0960
6650-00-530-0960 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058350. A Sub NMFC of Z. It has a NMFC Description of TELESCOPES NOI. 6650-00-530-0960 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 6650-00-530-0960 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 32900 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 6650-00-530-0960 is not classified as a special type of cargo when transported by water. 6650-00-530-0960 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6650-00-530-0960
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 17.8" H x 7.2" W x 5.5" L
- --
- --
- --
- Special Requirements
- 17.8" H x 7.2" W x 5.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
