6650-00-518-5459
Optical Element Spacer
6650005185459 005185459 5185459
A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT. View more Optical Element Spacer
January 2023
15
Marketplace 6650-00-518-5459
Request a Quotation from participating marketplace vendors
Related Documents 6650-00-518-5459 1+ Documents (More...)
United States (US) 4. 6650-00-518-5459 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 6650-00-518-5459 RQST Updated Every Day 6650-00-518-5459 RQST NE Related Documents
Restrictions 6650-00-518-5459
6650-00-518-5459 is a Optical Element Spacer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6650-00-518-5459
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6650-00-518-5459
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 6650-00-518-5459
- Part Number
- Manufacturer
- Status
- 5185459
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy

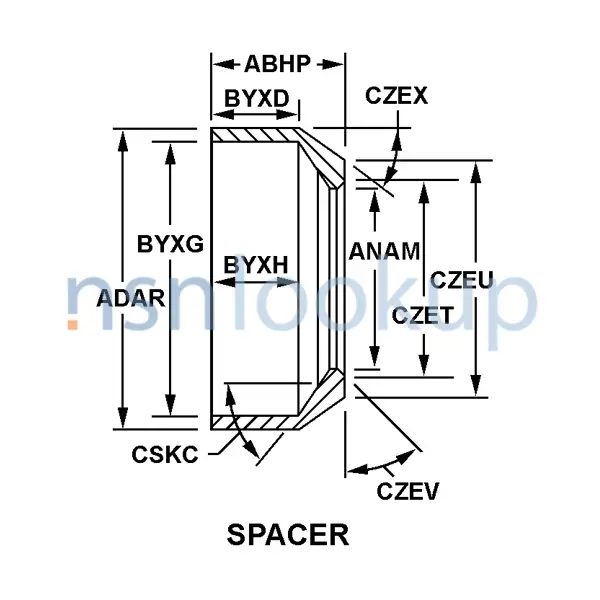

Datasheet 6650-00-518-5459
- Characteristic
- Specifications
- FIIG
- Specifications
- A07000
- Body Taper [CZEX]
- 30.5 Degrees Minimum
- Material Document And Classification [MDCL]
- Qq-A-225/5 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 2017
- Overall Length [ABHP]
- 0.801 Inches Minimum And 0.806 Inches Maximum
- Special Features [FEAT]
- Black
- Straight Bore Inside Diameter [BYXG]
- 0.870 Inches Minimum And 0.875 Inches Maximum
- Straight Bore Depth [BYXH]
- 0.578 Inches Nominal
- Straight Body Portion Width [BYXD]
- 0.593 Inches Nominal
- Style Designator [STYL]
- Spacer
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625,Type 2 Mil Spec Single Treatment Response
- Surface Treatment [SFTT]
- Anodize
- Taper Angle [CSKC]
- 30.5 Degrees Nominal
- Taper Bore Major Diameter [ANAL]
- 0.650 Inches Minimum
Similar Supply Items to 6650-00-518-5459
Freight Information 6650-00-518-5459
6650-00-518-5459 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 6650-00-518-5459 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 6650-00-518-5459 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 6650-00-518-5459 is not classified as a special type of cargo when transported by water. 6650-00-518-5459 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
