6640-01-383-1098
Laboratory Graduated Cylinder
6640013831098 013831098 03-007-34 08-572-10E
A cylindrical vessel with a graduated height generally five times the inside diameter. The graduations are not less than 1 mm apart. If without a base, the vessel may be supplied with a holder which incorporates a base. Excludes GRADUATE, LIQUID, LABORATORY. View more Laboratory Graduated Cylinder
January 2023
4
Marketplace 6640-01-383-1098
Request a Quotation from participating marketplace vendors
Related Documents 6640-01-383-1098 1+ Documents (More...)
6640-01-383-1098 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-66/fsc-6640/us 6640-01-383-1098
Every Day 6640-01-383-1098 RQST NE Related Documents 6640-01-383-1098 1+ Documents ( More... ) https
Restrictions 6640-01-383-1098
6640-01-383-1098 is a Laboratory Graduated Cylinder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 6640-01-383-1098
- US Air Force (FU47)
- Effective Date:
- 1 Jul 2000
- Former MOE Rule:
- FA47
- US Navy (N9PB)
- Effective Date:
- 1 Feb 1996
- Supplementary Collaborators:
- GTHD
- MOE Rule:
- R47A
- Effective Date:
- 1 Feb 1996
Approved Sources 6640-01-383-1098
- Part Number
- Manufacturer
- Status
- 03-007-34
- Manufacturer
- 22527 - Fisher Scientific Company L.L.C. (Active)
- Original Design
- Original Design
- 08-572-10E
- 22527 - Fisher Scientific Company L.L.C. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6640-01-383-1098
- Characteristic
- Specifications
- FIIG
- Specifications
- A24200
- Capacity Rating [BBLT]
- 250.000 Milliliters Nominal
- Graduation Marking Method [CRLY]
- Molded
- End Item Identification [AGAV]
- Automated Surface Observing System (Asos)
- Material [MATT]
- Plastic, Polymethyl Pentene
- Overall Height [ABKW]
- 295.0 Millimeters Nominal
- Special Features [FEAT]
- Molded Fade-Proof Graduations, With 250Ml Capacity, With 2Ml Subdivisions, Round

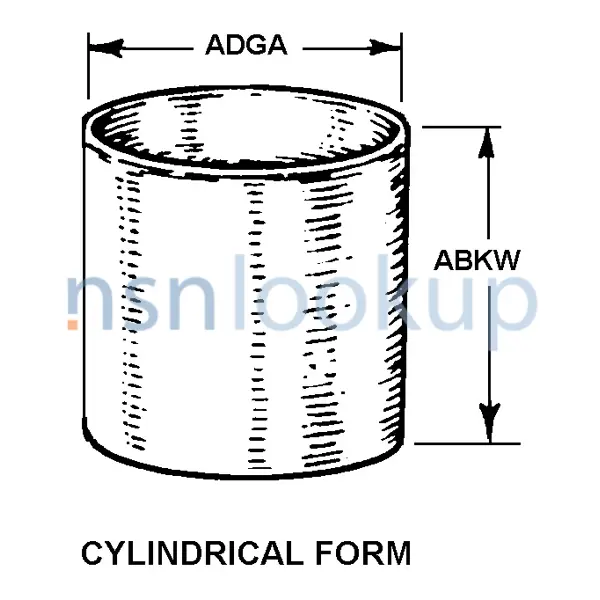

- Style Designator [STYL]
- Cylindrical Form
Management Data 6640-01-383-1098
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2016
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2016
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- R
- Refer To 47Tr Cleanup 0S2104a
- 47TR CLEANUP 0S2104A
- R
Navy
- Cognizance:
- 9P
Similar Supply Items to 6640-01-383-1098
Freight Information 6640-01-383-1098
6640-01-383-1098 has freight characteristics.. 6640-01-383-1098 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
