6640-01-214-4649
Laboratory Desiccator
6640012144649 012144649 DA02-02-234
A vessel with an airtight, sealing cover used to dry and store specimens in a moisture-free atmosphere. The cover may have an evacuation device in order to create a vacuum. Excludes DRYING APPARATUS, VACUUM and MICRODESICCATOR. View more Laboratory Desiccator
May 2023
6
Marketplace 6640-01-214-4649
Request a Quotation from participating marketplace vendors
Related Documents 6640-01-214-4649 1+ Documents (More...)
BUY NE FedMall Updated Every Day 6640-01-214-4649 RQST NE Updated Every Day 6640-01-214-4649 RQST
Updated Every Day 6640-01-214-4649 RQST NE Related Documents 6640-01-214-4649 1+ Documents ( More...
Restrictions 6640-01-214-4649
6640-01-214-4649 is a Laboratory Desiccator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 6640-01-214-4649
- US Air Force (FGGM)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- FGKX
Approved Sources 6640-01-214-4649
- Part Number
- Manufacturer
- Status
- DA02-02-234
- Manufacturer
- 22627 - Multisorb Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 6640-01-214-4649
- Characteristic
- Specifications
- FIIG
- Specifications
- A24200
- Features Provided [CBBL]
- Disposable
- Height [HGTH]
- 4.000 Inches Nominal
- Material [MATT]
- Aluminum Alloy
- Primary Container Type [CQCT]
- Box
- Primary Container Unit Quantity [CQTF]
- 1
- Overall Outside Diameter [ADGA]
- 1.375 Inches Nominal
- Special Features [FEAT]
- Incorporates Two Separate Humidity Indicator Cards - One Monitors Relative Humidity Of The Container Air And The Other Monitors The Condition Of The Desiccant Itself

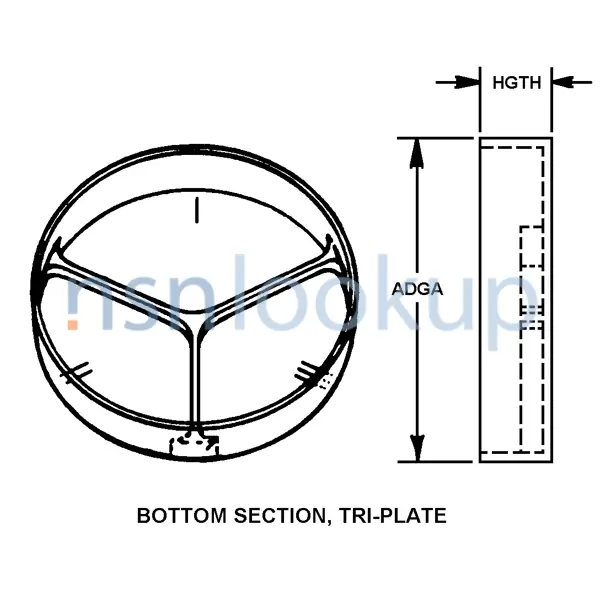

- Style Designator [STYL]
- Bottom Section, Tri-Plate
DLA Procurement Analysis 6640-01-214-4649
Management Data 6640-01-214-4649
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Jan 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- May 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 6640-01-214-4649
Freight Information 6640-01-214-4649
6640-01-214-4649 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 014500. A Sub NMFC of X. It has a NMFC Description of APPARATUS CHEMICAL LABORATORY. 6640-01-214-4649 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 06350 which rates the freight between FCL and LCL. 6640-01-214-4649 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6640-01-214-4649 is not classified as a special type of cargo when transported by water. 6640-01-214-4649 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6640-01-214-4649 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
