6640-00-899-6882
Laboratory Condenser
6640008996882 008996882 DD-C-575 DD-C-575 TY3SZ1 OR 2
A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING. View more Laboratory Condenser
January 2023
5
Marketplace 6640-00-899-6882
Request a Quotation from participating marketplace vendors
Related Documents 6640-00-899-6882 5+ Documents (More...)
DD-C-575 CONDENSER,LABORATORY 2 EA NS Request Quotation Updated Every Day 6640-00-899-6882 RQST NE Updated
Every Day 6640-00-899-6882 RQST Updated Every Day 6640-00-899-6882 RQST NE Related Documents 6640-00
Laboratory Condenser 6640008996882 008996882 DD-C-575 https//www.nsnlookup.com /fsg-66/fsc-6640
https//www.nsnlookup.com /fsg-66/fsc-6640/us 6640-00-899-6882 Laboratory Condenser 6640008996882
DD-C-575 TY1SZ2 A device, usually cylindrical in shape, composed of an internal tube surrounded by
DD-C-575 CONDENSER,LABORATORY 2 EA NS Request Quotation Updated Every Day 6640-00-899-4835 RQST NE Updated
Laboratory Condenser 6640008996882 008996882 DD-C-575 TY3SZ1 OR 2 A device, usually cylindrical
DD-C-575 TY1SZ2 A device, usually cylindrical in shape, composed of an internal tube surrounded by
TY1SZ4 A device, usually cylindrical in shape, composed of an internal tube surrounded by DD-C-575
https//www.nsnlookup.com /fsg-66/fsc-6640/us 6640-00-899-6882 Laboratory Condenser 6640008996882
Restrictions 6640-00-899-6882
6640-00-899-6882 is a Laboratory Condenser that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 6640-00-899-6882
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6640-00-899-6882
- NASA (G150)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6640-00-899-6882
- Part Number
- Manufacturer
- Status
- DD-C-575
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- DD-C-575 TY3SZ1 OR 2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 6640-00-899-6882
- Characteristic
- Specifications
- FIIG
- Specifications
- T269-C
- Drip Tip [BQFY]
- Included

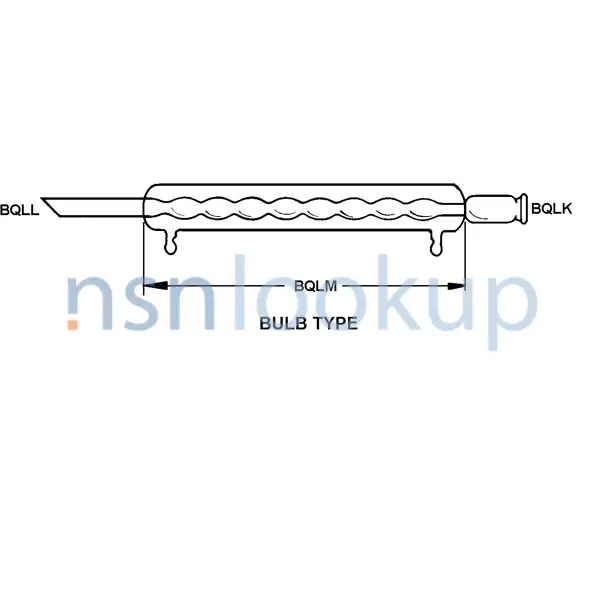

- Condenser Style Designator [BQFW]
- Bulb Type
- Condensor Outlet Joint Size [BQLL]
- 24/40 Std Taper Condenser Outlet Joint Size
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And 1 Or 2 Size
- Jacket Length [BQLM]
- 300.000 Millimeters Nominal
- Linear Expansion Coefficient Per Deg Celsius [ATYR]
- 0.00000335
- Linear Expansion Coefficient Temp Range In Deg Celsius [ATYS]
- +0.0 To 300.0
- Vapor Inlet Joint Size [BQLK]
- No 3 Rubber Stopper Vapor Inlet Joint Size
Similar Supply Items to 6640-00-899-6882
Freight Information 6640-00-899-6882
6640-00-899-6882 has freight characteristics.. 6640-00-899-6882 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
