6640-00-515-4374
Laboratory Graduated Cylinder
6640005154374 005154374 A-A-50807 MS35947-8 08-566F NNN-C-940
A cylindrical vessel with a graduated height generally five times the inside diameter. The graduations are not less than 1 mm apart. If without a base, the vessel may be supplied with a holder which incorporates a base. Excludes GRADUATE, LIQUID, LABORATORY. View more Laboratory Graduated Cylinder
May 2023
14
Marketplace 6640-00-515-4374
Request a Quotation from participating marketplace vendors
Related Documents 6640-00-515-4374 5+ Documents (More...)
United States (US) 4. 6640-00-515-4374 Marketplace Restrictions Approved Sources Datasheet Management
NNN-C-940 CYLINDER,GRADUATED,LABORATORY RQST NS Request Quotation FedMall Updated Every 15 Minutes 6640
NNN-C-940 CYLINDER,GRADUATED,LABORATORY 12 EA NS Request Quotation Subscribe to View Vendor Details..
NNN-C-940 CYLINDER,GRADUATED,LABORATORY RQST NS Request Quotation Subscribe to View Vendor Details...
NNN-C-940 CYLINDER,GRADUATED,LABORATORY 12 EA NS Request Quotation Subscribe to View Vendor Details..
NNN-C-940 CYLINDER,GRADUATED,LABORATORY RQST NS Request Quotation Updated Every Day 6640-00-420-6000
NNN-C-940 CYLINDER,GRADUATED,LABORATORY 12 EA NS Request Quotation Subscribe to View Vendor Details..
NNN-C-940 CYLINDER,GRADUATED,LABORATORY RQST NS Request Quotation Updated Every Day 6640-00-889-1698
NNN-C-940 CYLINDER,GRADUATED,LABORATORY 12 EA NS Request Quotation Subscribe to View Vendor Details..
NNN-C-940 CYLINDER,GRADUATED,LABORATORY RQST NS Request Quotation Subscribe to View Vendor Details...
Restrictions 6640-00-515-4374
6640-00-515-4374 is a Laboratory Graduated Cylinder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 6640-00-515-4374
- US Army (A910)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- A185
- US Air Force (FGGM)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- FGKX
- US Marine Corps (MC46)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- MC09
- US Navy (N9BL)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- N9LM
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 May 1997
Approved Sources 6640-00-515-4374
- Part Number
- Manufacturer
- Status
- 08-566F
- Manufacturer
- 22527 - Fisher Scientific Company L.L.C. (Active)
- Original Design
- Original Design
- A-A-50807
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- MS35947-8
- 96906 - Military Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- NNN-C-940
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6640-00-515-4374
- Characteristic
- Specifications
- FIIG
- Specifications
- A24200
- Calibration Function [BJBS]
- To Contain
- Capacity Rating [BBLT]
- 500.000 Milliliters Nominal
- Closure Type Accommodated And Size Designation [CRQR]
- 27 Standard Taper Stopper Or 32 Standard Taper Stopper Mouth
- Graduation Marking Method [CRLY]
- Etched Or Painted
- Nondefinitive Spec/Std Data [ZZZT]
- Ii Style And 8 Size
- Primary Container Type [CQCT]
- Case
- Primary Container Unit Quantity [CQTF]
- 1
- Scale Graduation Unit Range [CTBL]
- +50.0 To 500.0 Milliliters Single Interval Single Scale
- Scale Marking [ASTW]
- Every Tenth Graduation Numbered
- Scale Graduation Unit [CQPX]
- 5.0 Milliliters Single Interval Single Scale
- Scale Reading Direction [CSTJ]
- Bottom To Top Outside Single Scale

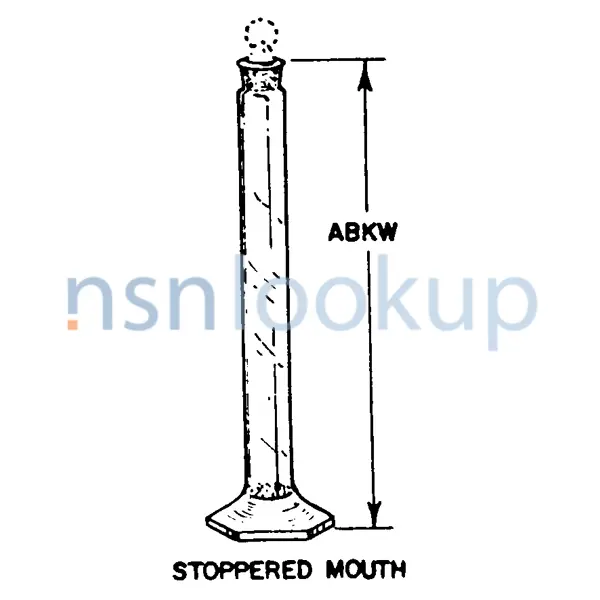

- Overall Height [ABKW]
- 380.00 Millimeters Nominal
- Style Designator [STYL]
- Stoppered Mouth
Weapon Systems (WSDC) 6640-00-515-4374
DLA Procurement Analysis 6640-00-515-4374
Management Data 6640-00-515-4374
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Apr 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- May 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- R
- Bulk and Packaged Petroleum Fuels, Packaged Petroleum Products, Containers and Accessories thereof, Certain Chemicals and Solid Fuels (DLA/GSA)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 34
- Operational Test:
- No Special Procedures
Similar Supply Items to 6640-00-515-4374
Freight Information 6640-00-515-4374
6640-00-515-4374 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 088120. A Sub NMFC of X. It has a NMFC Description of GLASSWARE LABORATORY. 6640-00-515-4374 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 46490 which rates the freight between FCL and LCL. 6640-00-515-4374 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 704 for ocean manifesting and military sealift. 6640-00-515-4374 is not classified as a special type of cargo when transported by water. 6640-00-515-4374 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 6640-00-515-4374 1 Records
Contracting Technical Data File (CTDF) 6640-00-515-4374 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
